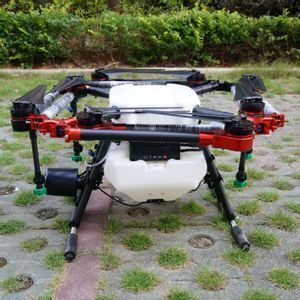

10L10kg datalink3 V2.0 Tyi agricultural drone pesticide aircraft uav professional agriculture sprayer

Supplier: Xianning Tyi Model Technology Co., Ltd.
Region: Hubei, China
Contact: Mr Kepeng Chen
Price: $3980.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Remoto distance:	1000m;	After Warranty Service:	Video technical support,Online support,Spare parts;
Usage:	Agriculture;	Showroom Location:	Peru,Indonesia,Mexico,Russia,Spain,Thailand,Argentina,South Korea,Chile,Ukraine;
Local Service Location:	Peru,Mexico,Russia,Spain,Thailand,Malaysia,Argentina,South Korea,Colombia,Ukraine;	Selling Units:	Single item;
Single gross weight:	65.0 KG;	Motor:	6215 KV170;
Sprinkler head:	4 pcs;	Brand Name:	No;
Key Selling Points:	High Productivity;	Radar:	1 high radar+1 obstacle radar;
Sprayer Type:	Pump;	Flight controller:	Dji N3-AG V2.0;
Warranty:	1 Year;	Full load weight:	24.5KG;
Uav size:	15001500550mm;	Applicable Industries:	Farms;
Product name:	10L payload Tyi agricultural drone agriculture sprayer;	Place of Origin:	Hubei China;
Condition:	New;	Spray width:	4-6m;
Remot controller:	Datalink3 V2.0 with screen;	After-sales Service Provided:	Video technical support,Online support;
Single package size:	70X70X62 cm;	Packaging Detail:	wooden carton 808070cm;
Diameter:	150;

Product Description

8axis 10L 2018 new carbon fiber uav drone agriculture pesticide aircraft crop sprayer drone

Product details

Motor	6215 KV160
ESC	HV 80 a (44.4 V)
Propeller	2170 (nylon plus fiber)
Battery capacity	6S 12000MAH 20C*2
Charger	PC1080*1 (1080W)
Maximum flight speed	12m/s
Working time	7-15min

Control panel function

Flight mode intelligent control function:

1,With a AB flight function(You only need to fly the plane from point a to point b, the rest of the route is done by the plane itself, you just need to look at the plane.Like the picture on the right, the rough line needs you to control the flight, the fine line is done by the plane itself);

2,Aircraft automatic shutdown spraying system during translation process;

3,Remote control can monitor the battery voltage in real time;

4,Control aircraft translation distance ( control aircraft spraying width );

5,You can set the flight speed above the software, 1m / s, 3 m / s, 5 m / s, 7 m / s per second, and the plane is fixed at a speed;

6,GPS mode flight, attitude mode flight, manual mode flight;

7,a key takeoff, a key landing, fixed point, fixed high, control return, heading lock and other functions.

Recommand product:

https://www.alibaba.com/product-detail/6axis16L-new-payload-sprayer-pesticide-UAV_62210179216.html?spm=a2747.manage.0.0.7b1371d2YXr2tR

https://www.alibaba.com/product-detail/8axis-10L-N3-AG-V2-0_60586926620.html?spm=a2747.manage.0.0.7b1371d2YXr2tR

Certification

FAQ

What is the Minimum Order Quantity(MOQ)?

No quantity limited, Sample order or small order is acceptable, but the customers have to pay the sample cost and the courier cost

What is the lead time?(How long will it take to prepare my goods?)

2-3days for sample orders, 10-15 days for bulk orders.(The exact time will be based on the requirements)

How will you deliver my goods to me?

Normally, we will ship the goods by air, by sea and by express.

Can you print my own logo on the products?

Yes, of course. Not only the logo, but also the packing design and other OEM services are available

What is your product quality?

Our raw materials are all purchased from qualified suppliers. And we have very strict QC standard to assure our final products meet your requirements.
