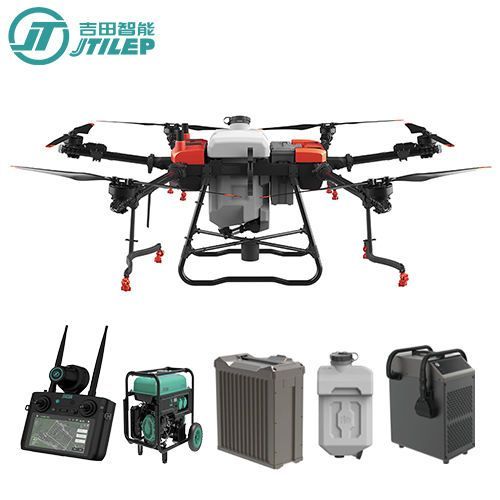

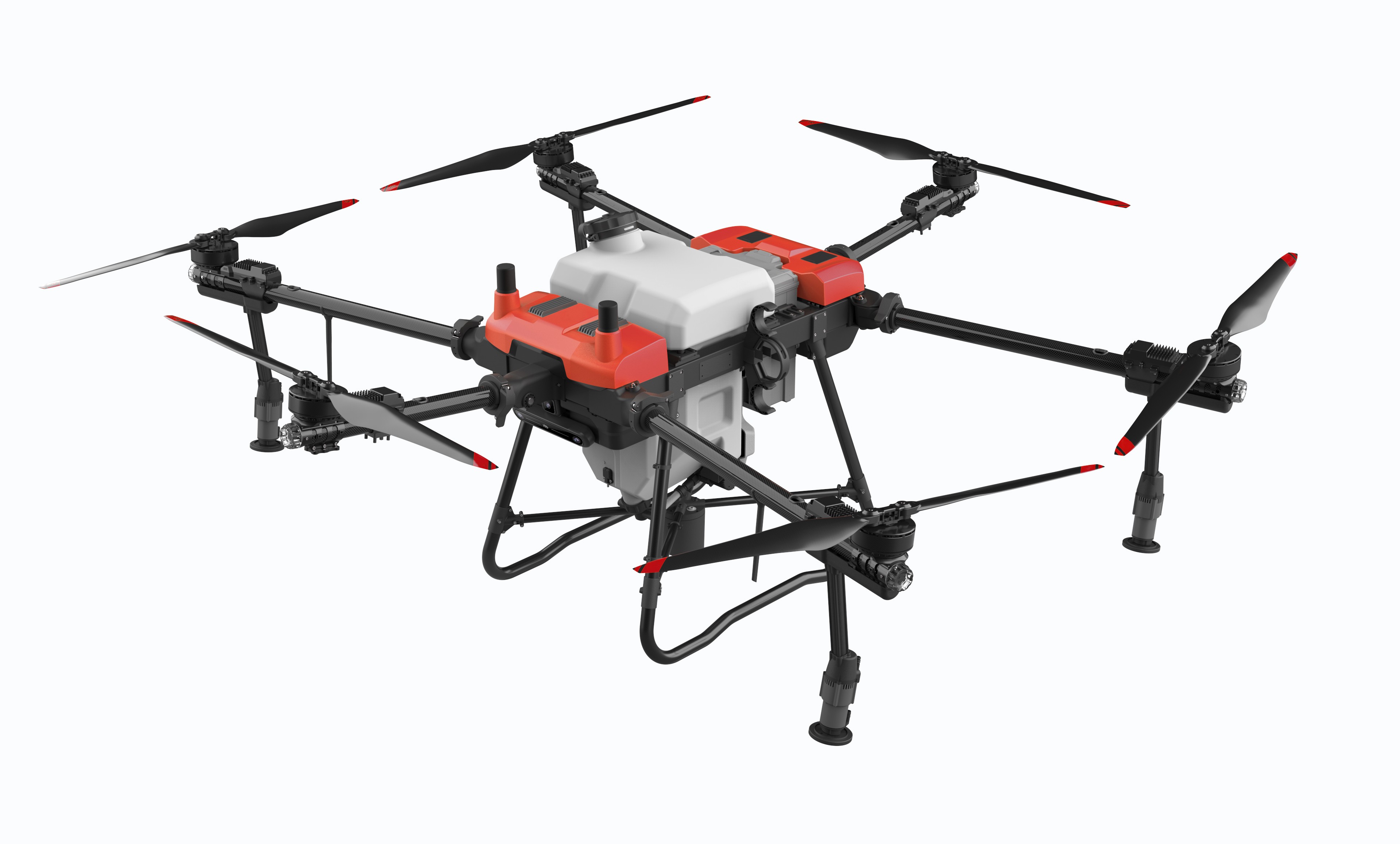

JT40 High Quality Manufacturer Supply Pesticide Agriculture Sprayer Drone Rice

Supplier: Xuzhou Jitian Intelligent Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Mr JTILEP LI
Price: $2500.00 / 1 - 19 sets
$2000.00 / 20 - 99 sets
$1500.00 / >=100 sets
Min. Order: 1 set

Click here to contact

Product details

payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	diameter:	1 foot
Mechanical test report:	if	Video outbound inspection:	if
Place of origin:	Jiangsu, China	Applicable industries:	Machine Repair Shop, Farm, Household, Energy & Mining, Other
Packaging details:	Iron box/wooden box packaging	Health status:	new
port:	Shanghai/Qingdao/Ningbo	Package:	iron frame
Marketing type:	Hot Products of 2023	Certification:	Federal Communications Commission
Package preview:		Supply capacity:	1,000 sets per month
usage:	agriculture	brand:	JTILEP
product name:	Agricultural drone pesticide sprayer	feature:	eco friendly
Showroom location:	Turkey, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Pakistan, Chile, Colombia, South Africa, Malaysia	After-sales service provided:	Provide overseas services
remote control:	H12	Spray efficiency:	12-15 hectares/hour
application:	agriculture	Warranty:	1 year
weight:	35kg	Core components:	Pumps, PLCs, pressure vessels
transportation:	Delivery Service	Battery:	28000 mAh
Sprayer type:	Unmanned Aerial Vehicle (UAV)	Core component warranty:	1 year
Main selling points:	High productivity

Product Description

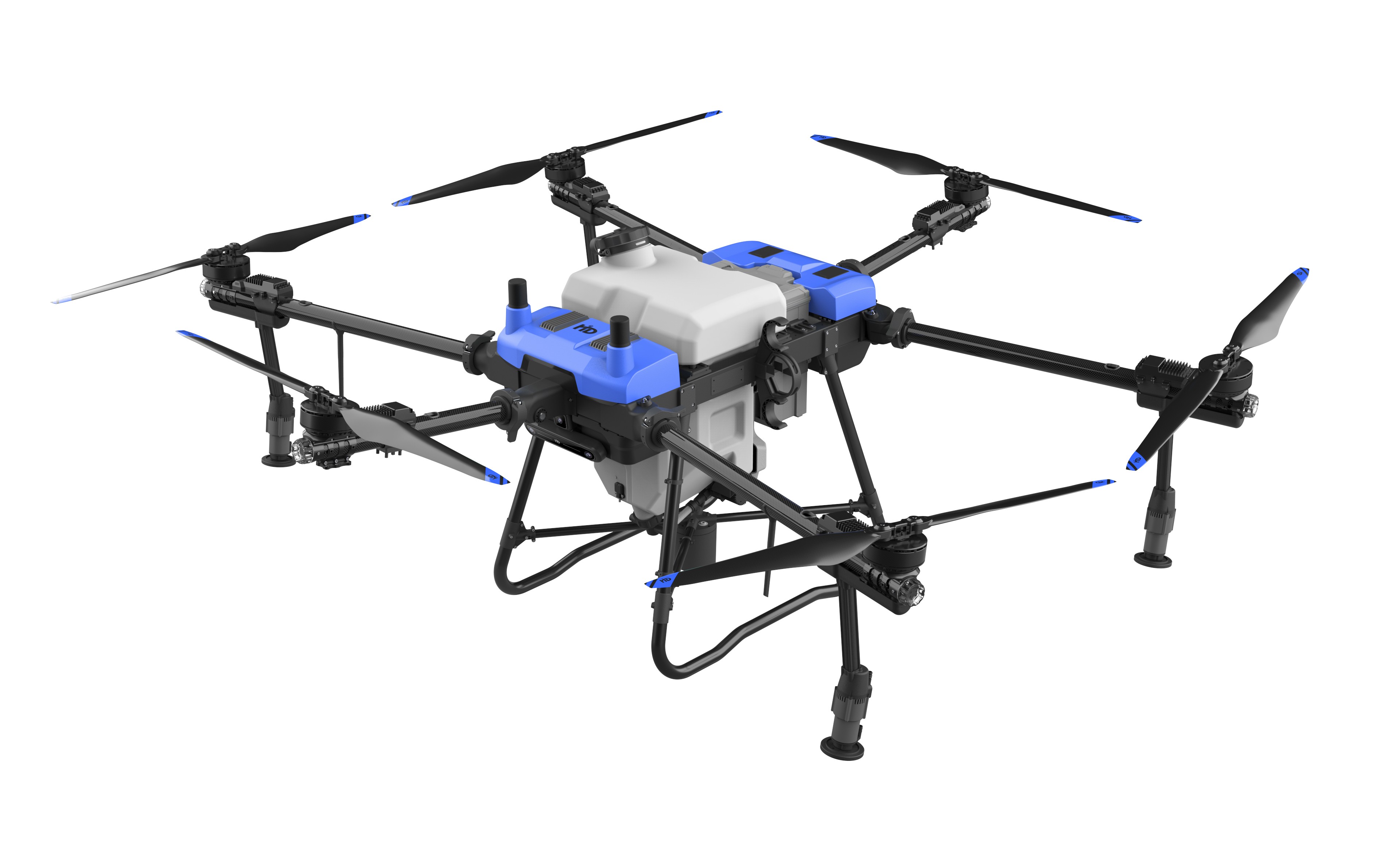

Customize colors to your needs

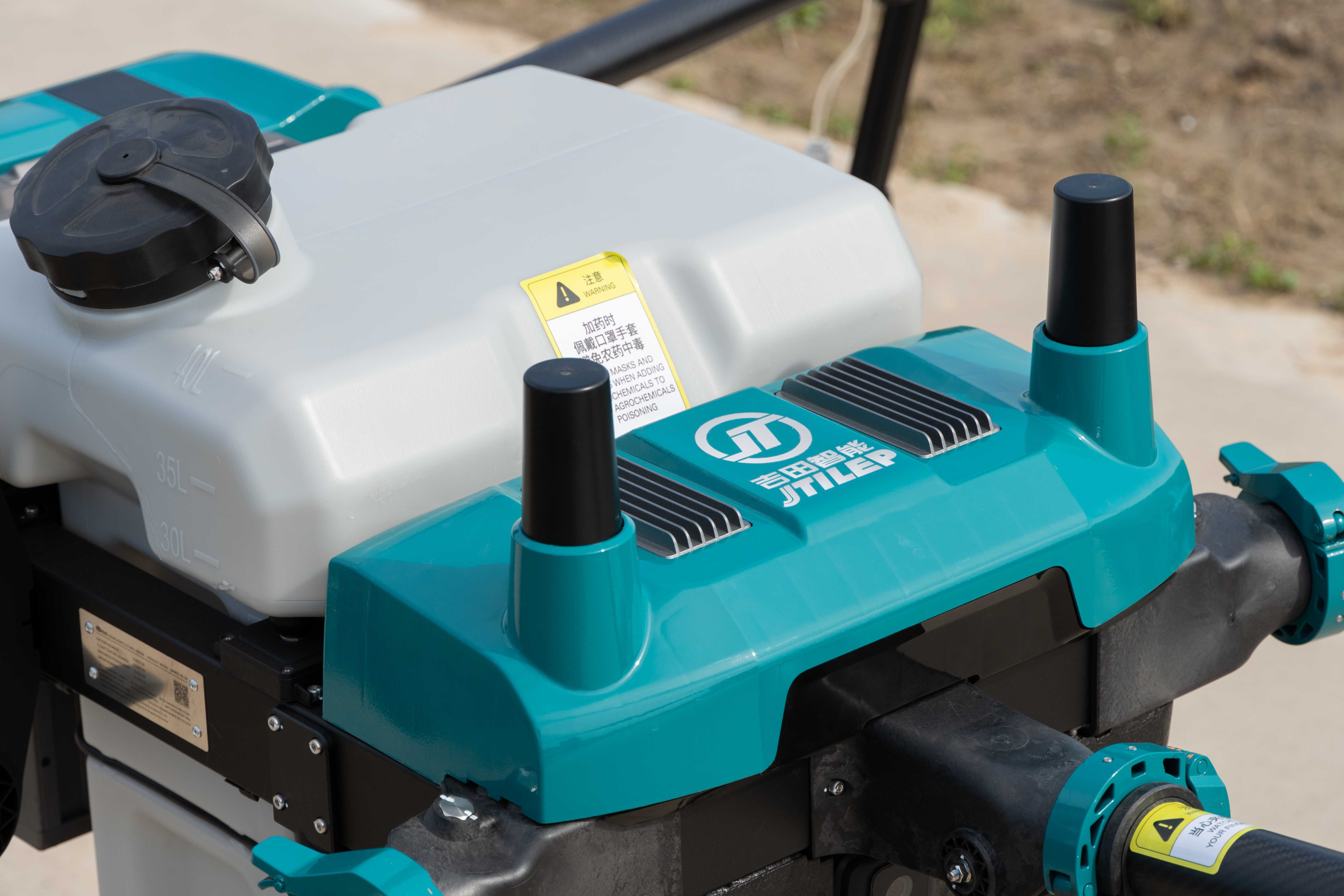

detailed picture

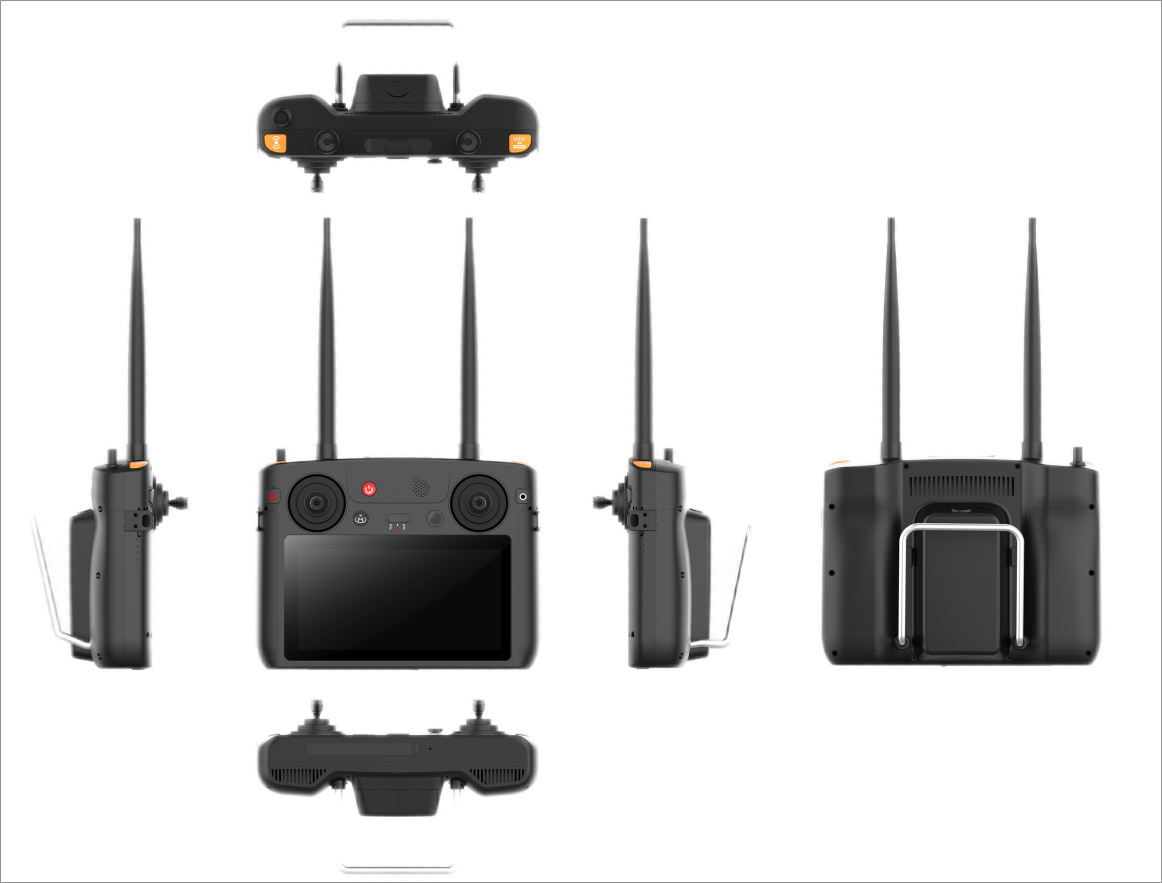

Remote control and RTK ink printer

The CPU performance is increased by 3 times, the memory is doubled, and various APPs can be easily run. The standard RTK high-precision ink printer optimizes the image transmission quality and distance. The built-in 5200mAh power system comes standard with two 5000mAh external batteries.

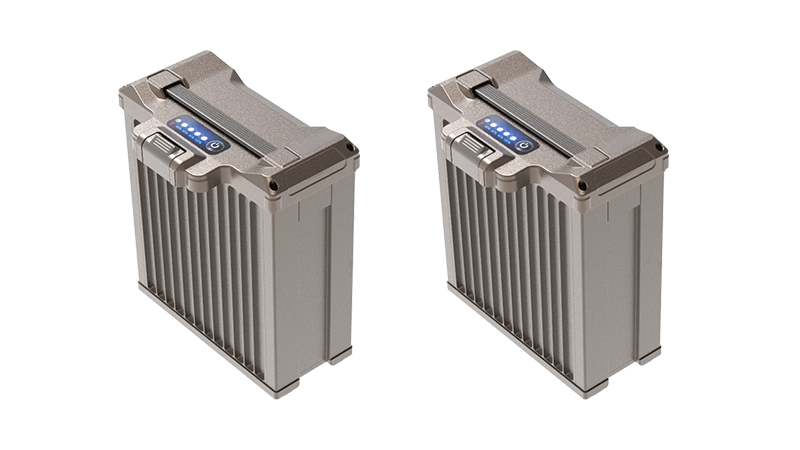

Battery

18S-30000mAh has a 28% increase in energy compared to the 14S-30000Ah battery. Warranty for unlimited charging times in the first year after activation.

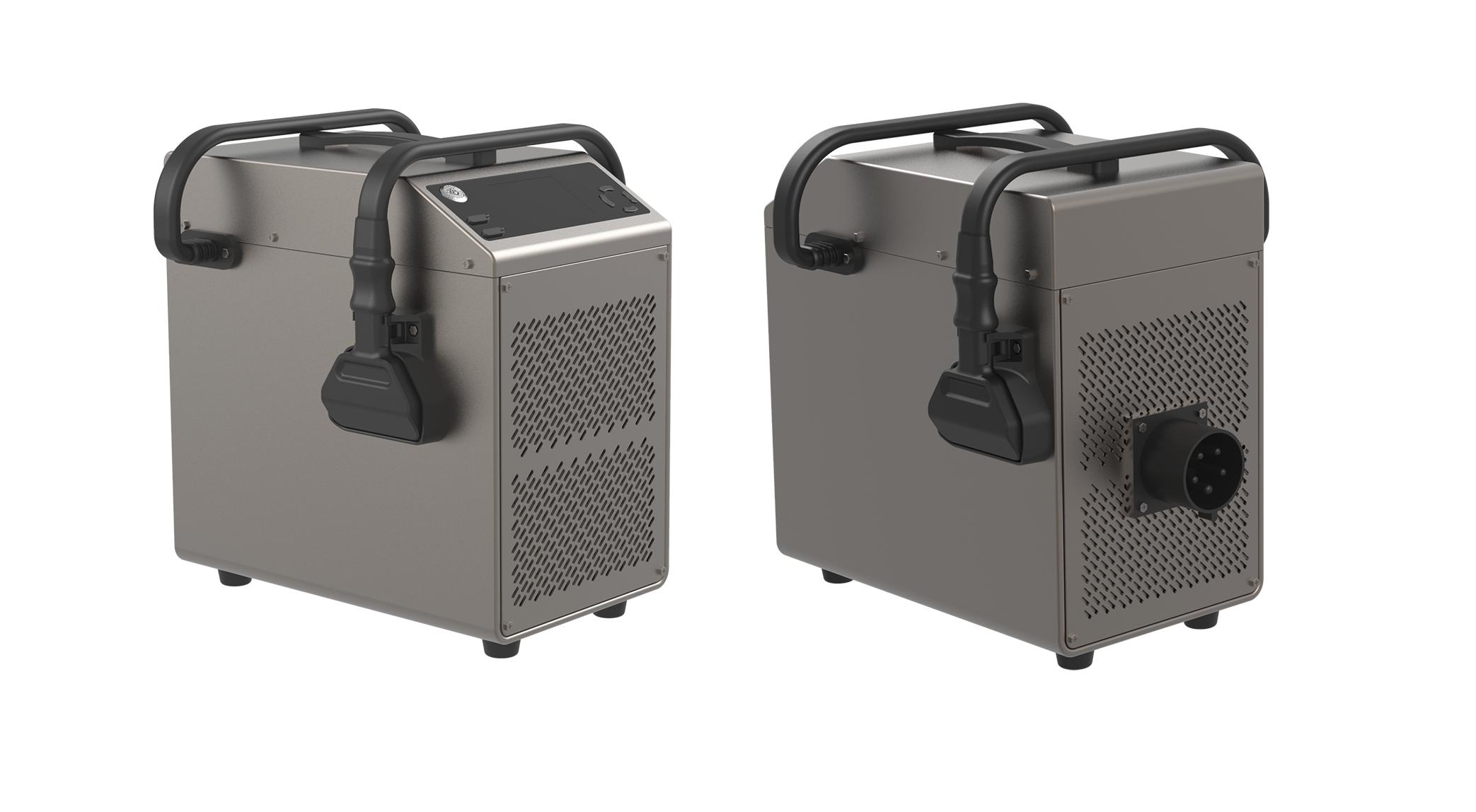

Multiple options: supports 220V/380V input super charger upgrade, rated power 8000W, supports 220V generator input, supports 220V mains input, supports 380V input, when the generator rated power ≥ 8000, 30%-95% connection only takes 11 minutes Charging power when using mains power: 2200W

Supports pesticide spraying ≥ 2 times (2.2L/acre, spray width 9m, operating speed 7m/s) After spraying pesticides once, the remaining power is about 40% (2L/acre, spraying width 8m, operating speed 7m/s) )

Supports fertilizing ≥7 times Fertilizing ≥8 times Ps: The remaining battery power is about 30% after operation

Manufacturing Technology

structural layout	Six-axis layout
Maximum wheelbase	2100mm (six-axis)
Dimensions	length x width x height 2144mm×2046mm×863mm (arms extended) 1138mm×682mm×865mm (arm folded)

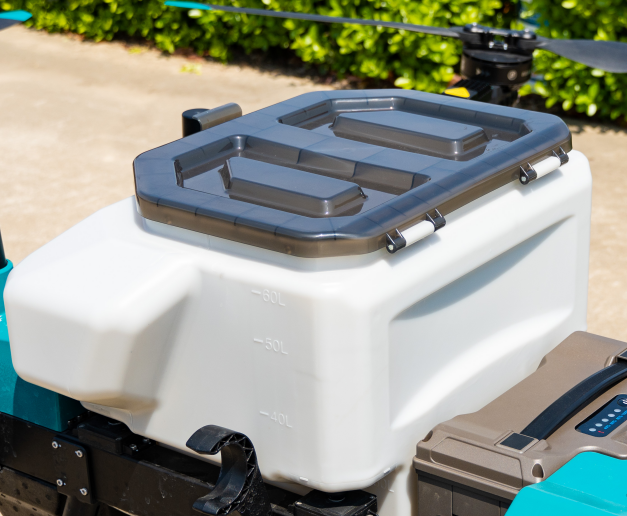

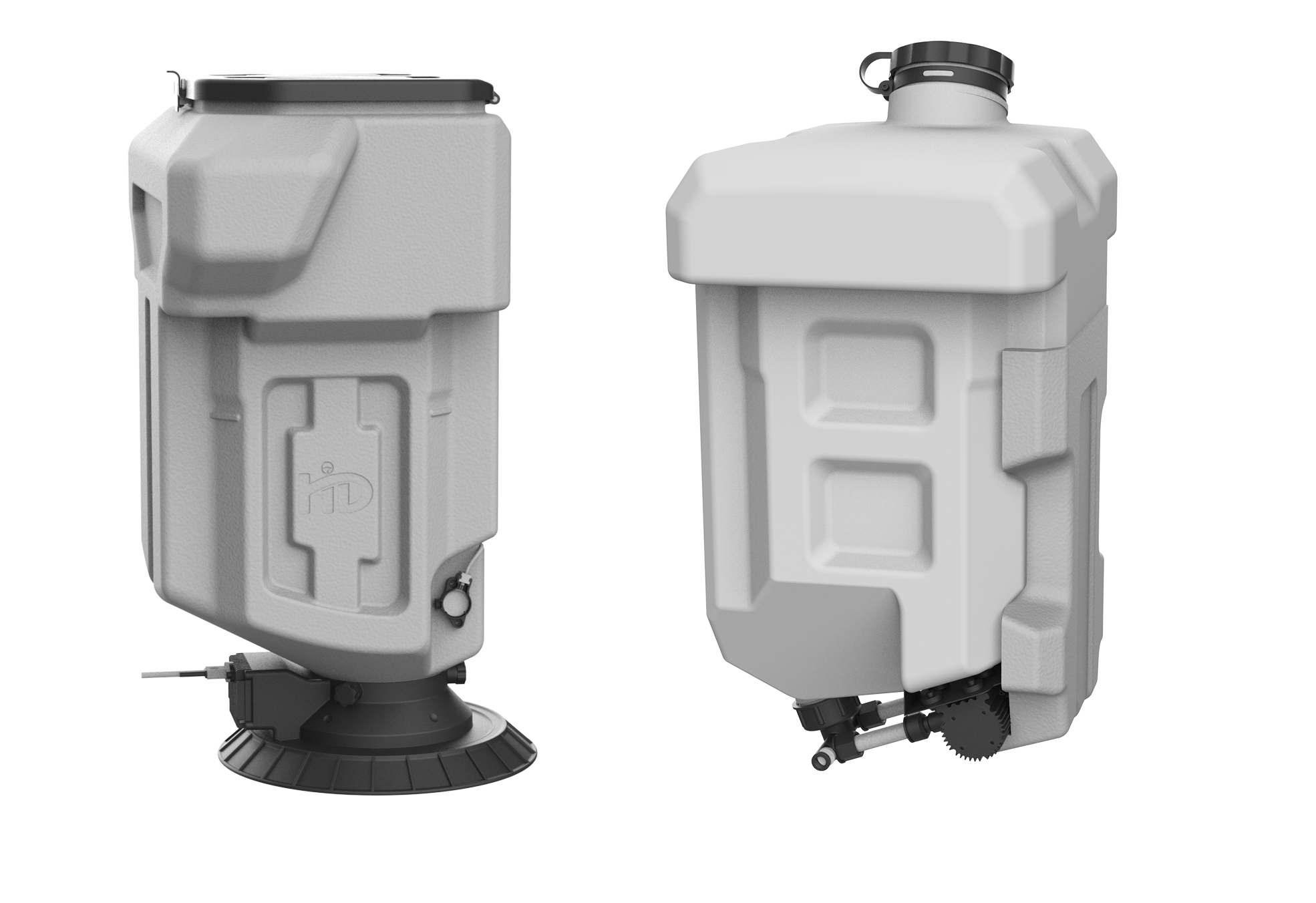

Container installation method	insert
Battery weight	13kg
Power Battery	30000mAh 21kWh 68.4V
Machine rated working pressure	0.3-0.4Mpa
Number of main rotors	6
Number of nozzles	12
Liquid pump type	diaphragm pump
Liquid pump flow	Maximum 8 liters/minute
Working spray width	Best 10 meters (operating height 3.5m±0.5m flight speed: 3m/s), maximum 12m
Liquid pump flow	13.5 liters/minute
Working spray width	11 meters
Charger output power	220V single-phase input: 380V three-phase 8000W (directly connected to generator) 2200W (directly connected to mains power)
Battery charging time	Lithium battery 20%-95% about 13 minutes

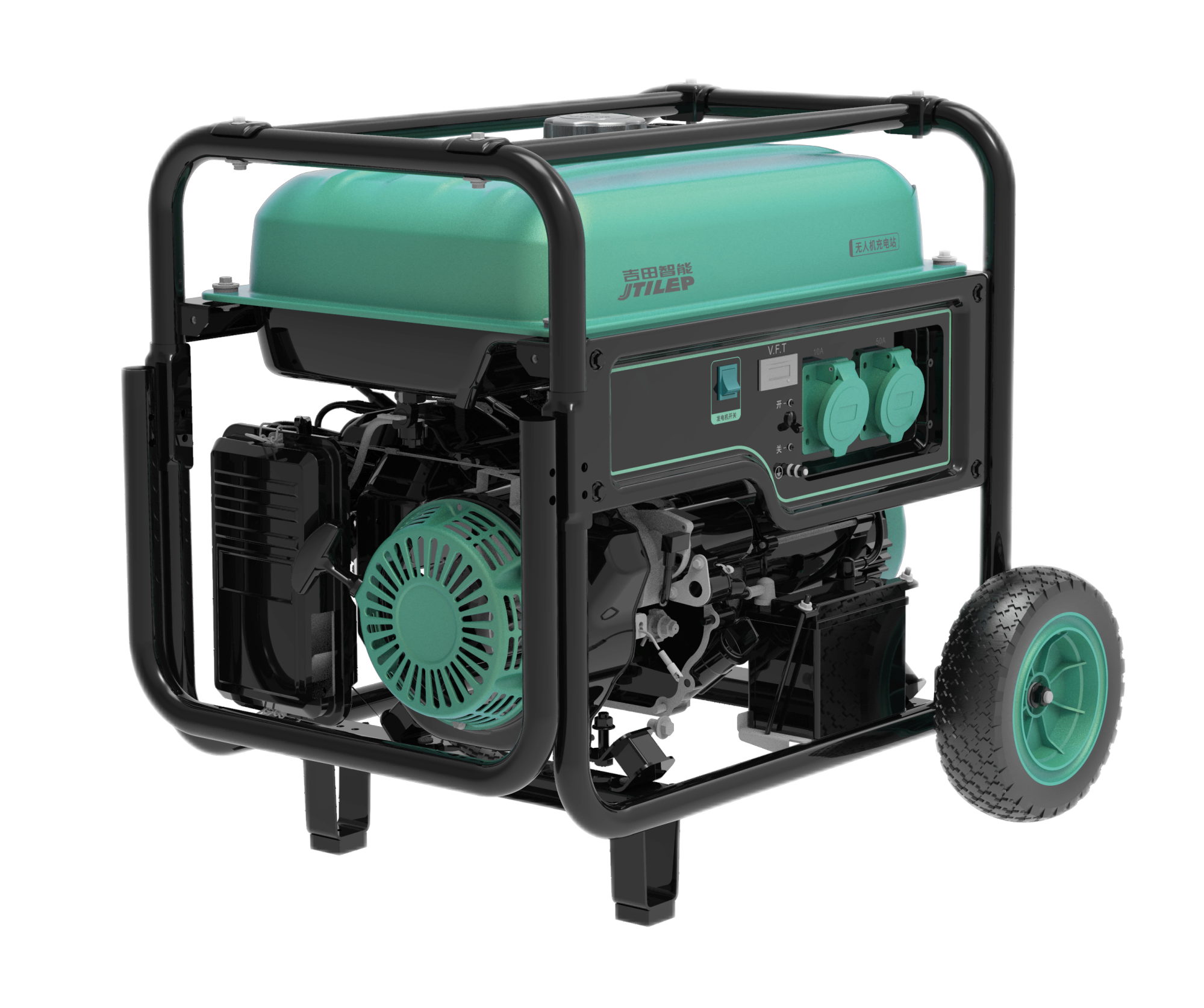

dynamo	Dual output channels 1.AC output 220V/8000W 2. AC output 220V/2200W
Fuel tank capacity	38 liters
Reference fuel consumption	500ml/kWh
first view camera	Front camera, rear camera
flight parameters
Hover accuracy	RTK: horizontal ±10cm, vertical ±10cm Radar: ±0.1m
Spray full load hover	8.5 minutes
No-load hover time	23 minutes
Ground analog radar ranging accuracy	0.1m
Fixed height range	1-30m
Obstacle avoidance sensing range	1-30m
Obstacle avoidance radar maximum pitch angle	15°
Motor rated power	2000W*6pcs
Remote control signal distance	≤1500 meters
Flight altitude restrictions	≤30m
Flight speed limit	≤10m/s
