Concrete Road Equipment Wet Shotcrete Machine Diesel Driven

Product details
Warranty of core components:1 Year;Selling Units:Single item;
Keywords:Wet Shotcrete Machine;Warranty:1 year,1 Year;
UNIQUE SELLING POINT:Low dust, energy saving;Packaging Detail:Export wooden case or customized package;
Single gross weight:110.0 KG;Showroom Location:Egypt,Canada,United States,Philippines,Peru,Indonesia,Pakistan,India,Mexico,Russia,Thailand,South Korea,Chile,UAE,Sri Lanka;
After Warranty Service:Video technical support,Online support,Spare parts;Max Aggregate Size:15mm;
Application:Concrete spraying Machine;After-sales Service Provided:Video technical support,Online support;
Certification:CE,ISO;Power:22hp;
Dimension(L*W*H):2550*950*1300mm;Local Service Location:United States,Philippines,Pakistan,India,Thailand;
Hose Inner Diameter:57;Condition:New;
Concrete slump:8~20cm;Marketing Type:New Product 2020;
Package Preview:;Drive mode:Diesel engine;
Place of Origin:Henan China;Rebound rate:≤10% (on average );
Max. Conveying Distance:35m;Weight:1100kg;
Core Components:Motor;Brand Name:Keming;
Single package size:255X95X130 cm;Applicable Industries:Construction works ,Energy & Mining;
Machinery Test Report:Provided;Applicable materials:wet concrete;
Video outgoing-inspection:Provided;Theory:Rotory shotcrete machine;
Air Consumption:9~10m3/min;Product name:Shotcrete Machine;
Spraying hose id.:51/57 /64mm;Voltage:Customized;

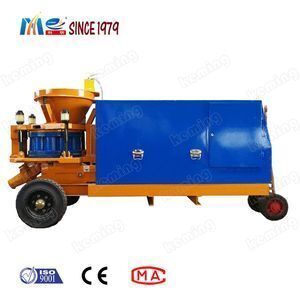

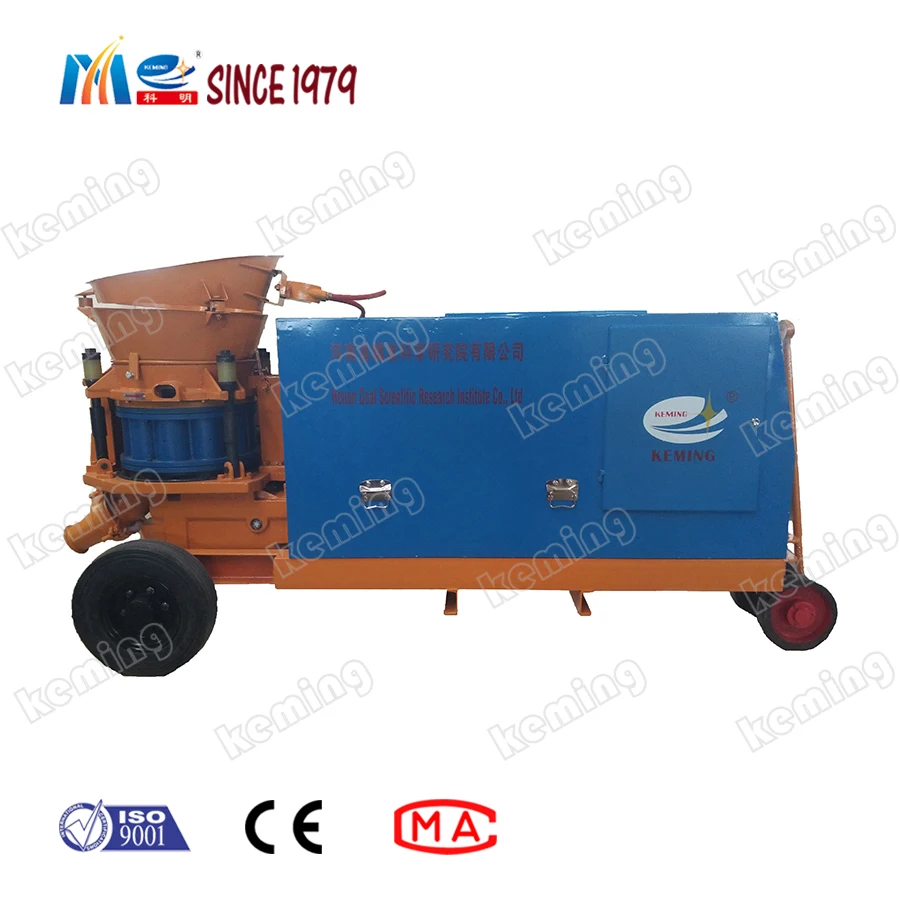

KSP-7D Wet Shotcrete Machine

Concrete Road Equipment Wet Shotcrete Machine Diesel Driven

Product Description

Shotcrete Machine Features:

1. KSP Series Wet Shotcrete Machine include Electric Shotcrete Machine (KSP-5, KSP-7, KSP-9), Pneumatic Shotcrete Machine (KSP-7A, KSP-9A), Diesel Engine Shotcrete Machine (KSP-5D, KSP-7D, KSP-9D), and Mining Shotcrete Machine (PS6I).

2. KSP-7 wet shotcrete machine includes driving device, rotor assembly, sealing system, vibration hopper, air system, spraying system, accelerator conveying system, electric control system.

3. Concrete mixture gets well mixed, water and cement ratio is accurately controlled.

4. KSP-7 wet shotcrete machine has quicker cement hydration, fewer dusts, lower rebound rate, good mixing uniformity and high concrete strength.

5. KSP-7 wet shotcrete machine has reasonable structure, stable performance, convenient operation and maintenance, long service life.

Shotcrete Machine Application:

1. KSP-7 wet shotcrete machine is designed for spraying half wet or wet concrete.

2. The machine is widely used for tunnel, culvert, subway, hydroelectric works, underground works and mine laneway.

Shotcrete Machine Technical Parameters:

Model KSP-7D wet shotcrete machine
Capacity 5~7m³/h
Conveying distance 35m(WET)/120m(DRY)
Max. aggregate size 20mm

Concrete slump

8~20cm

Conveying Pipe ID. 57mm/64mm

Rebound rate

≤10%(on average )

Rated working pressure 0.3-0.6Mpa
Air consumption 11-12m³/min
Engine power 22hp
Feeding height 1.1m
Rotor speed 11r/min
Dimension 2550*950*1300(mm)
Weight 1100kg

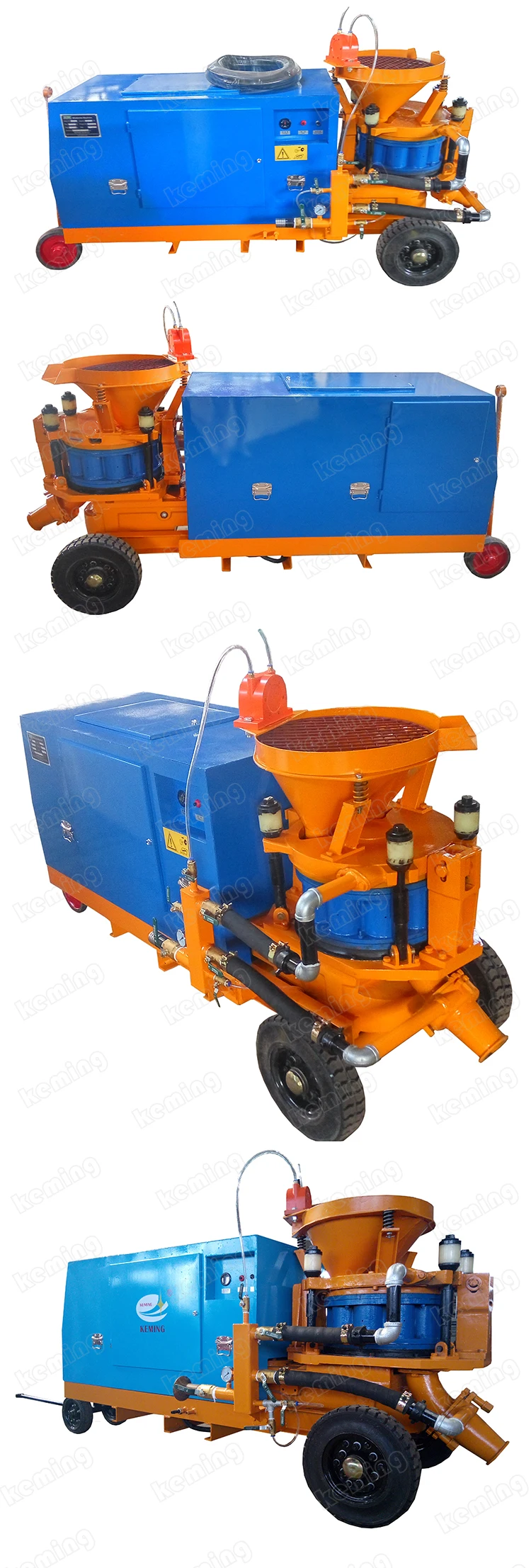

Shotcrete Machine Detailed Images:

Related Product - S

KCPZ series

Dedusting Shotcrete Machine

* Dust Removal

* Electric Motor

* KCPZ-5;

   KCPZ-6;

   KCPZ-7



KPZ series

Dry Shotcrete Machine

* Electric Motor

* KPZ-3;

   KPZ-4;

   KPZ-5;

   KPZ-7;

   KPZ-9

KPZ-A series

Dry Shotcrete Machine

* Air Motor

* KPZ-3A;

   KPZ-4A;

   KPZ-5A;

   KPZ-7A;

   KPZ-9A

KPZ-D series

Dry Shotcrete Machine

* Diesel Engine

* KPZ-3D;

   KPZ-4D;

   KPZ-5D;

   KPZ-7D;

   KPZ-9D

KSP series

Wet Shotcrete Machine

* Electric Motor

* KSP-5;

   KSP-7;

   KSP-9

KSP-D series

Wet Shotcrete Machine

* Diesel Engine

* KSP-5D;

   KSP-7D;

   KSP-9D

Dry Shotcrete Machine Truck

* Four-wheel drive or crawler drive

* Electric Motor

* KZL-6;

  KZL-7*2

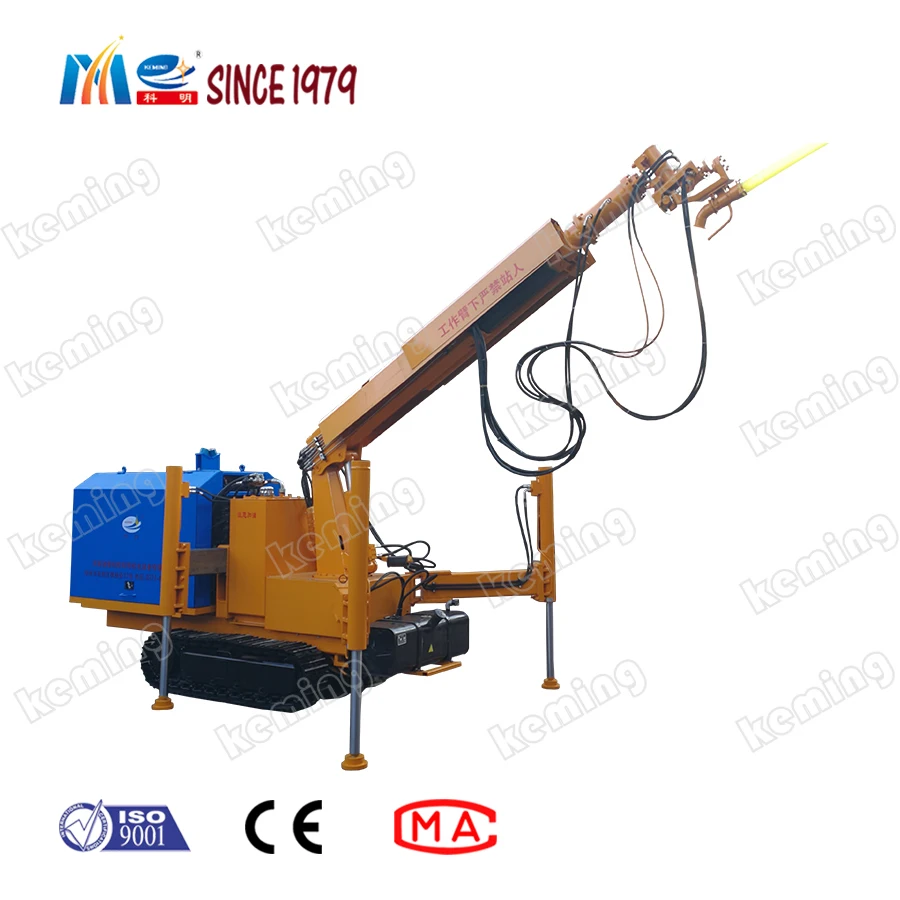

Shotcrete Machine Robot

* Four-wheel drive or crawler drive

* Electric Motor

* KPC-80

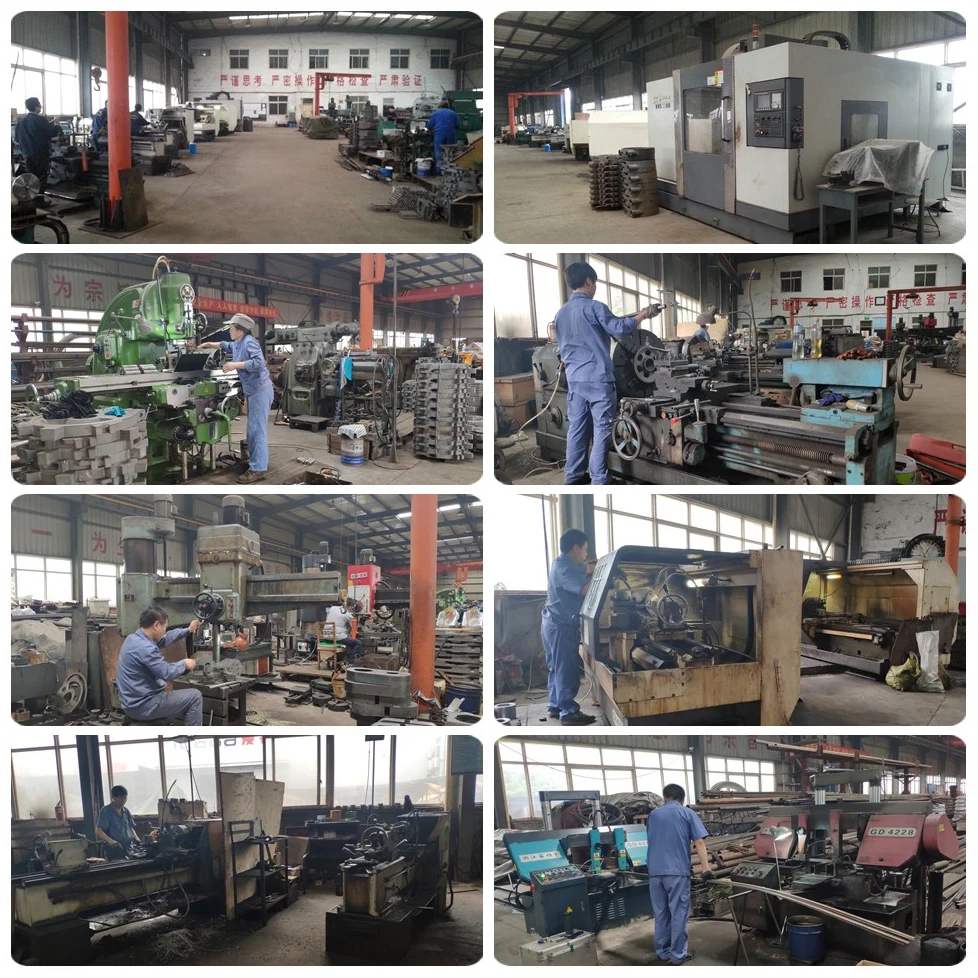

Company Information

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd. Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.

Achievements:

Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.

In 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”. In 2018, our company was awarded ISO9001 Quality Management System Certification, OHSAS 18001 Occupational Health and Safety Management System Certification, ISO14001 Environmental Management System Certification and CE Certification.

Business Scope:

As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.

Application:

Our products are mainly applied in water conservancy and hydropower engineering, subway engineering, air-raid shelter construction, municipal construction, environmental greening projects, tunnel and bridge maintenance, slope maintenance, blast-furnace refractories spraying operations, mining concrete spraying operations, etc.

Main Products:

wet/dry shotcrete machine, plastering machine, concrete/shotcrete pump, grouting pump, cement pump, mortar pump, slurry pump, hose pump, cement/concrete mixer, concrete foaming machine etc.

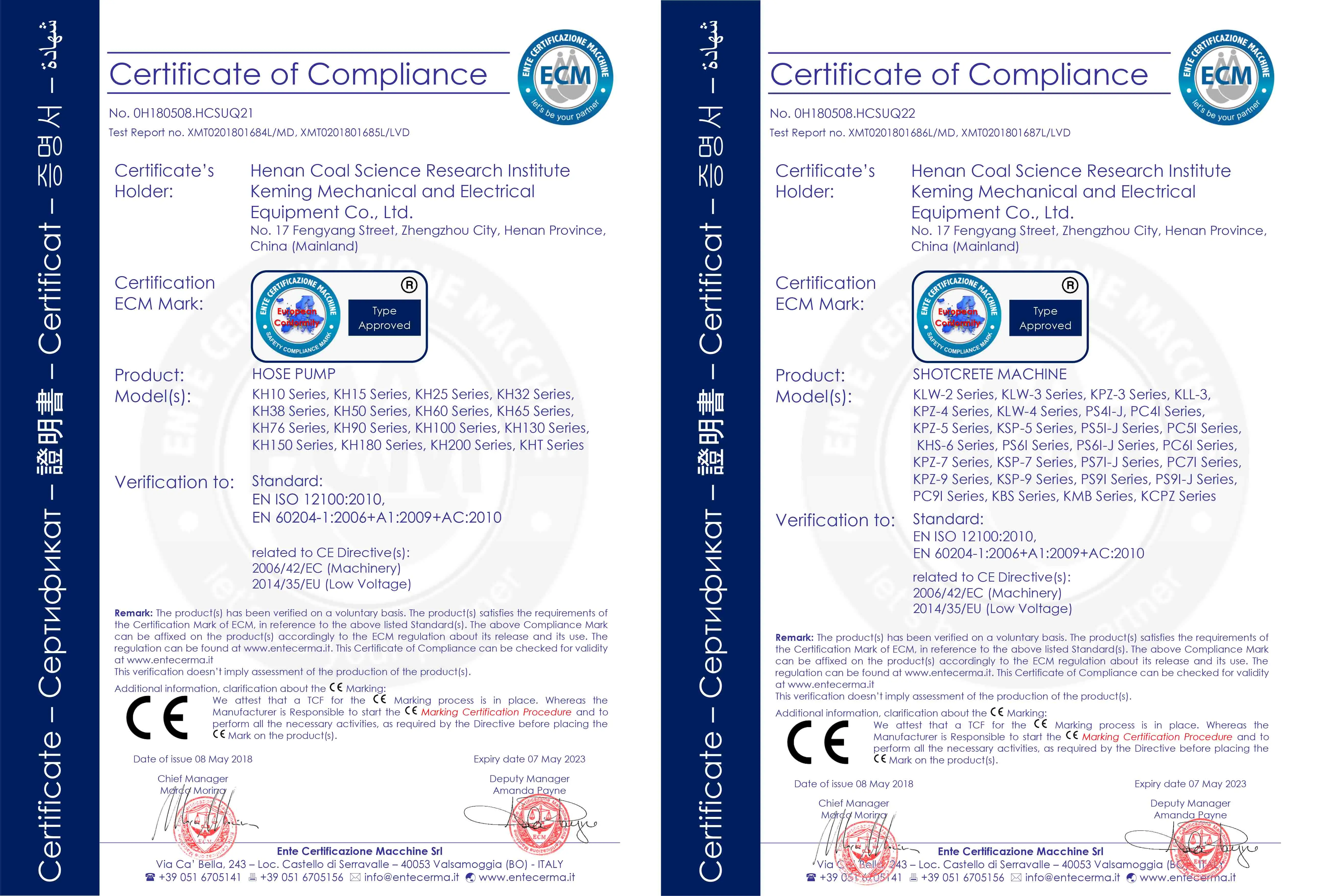

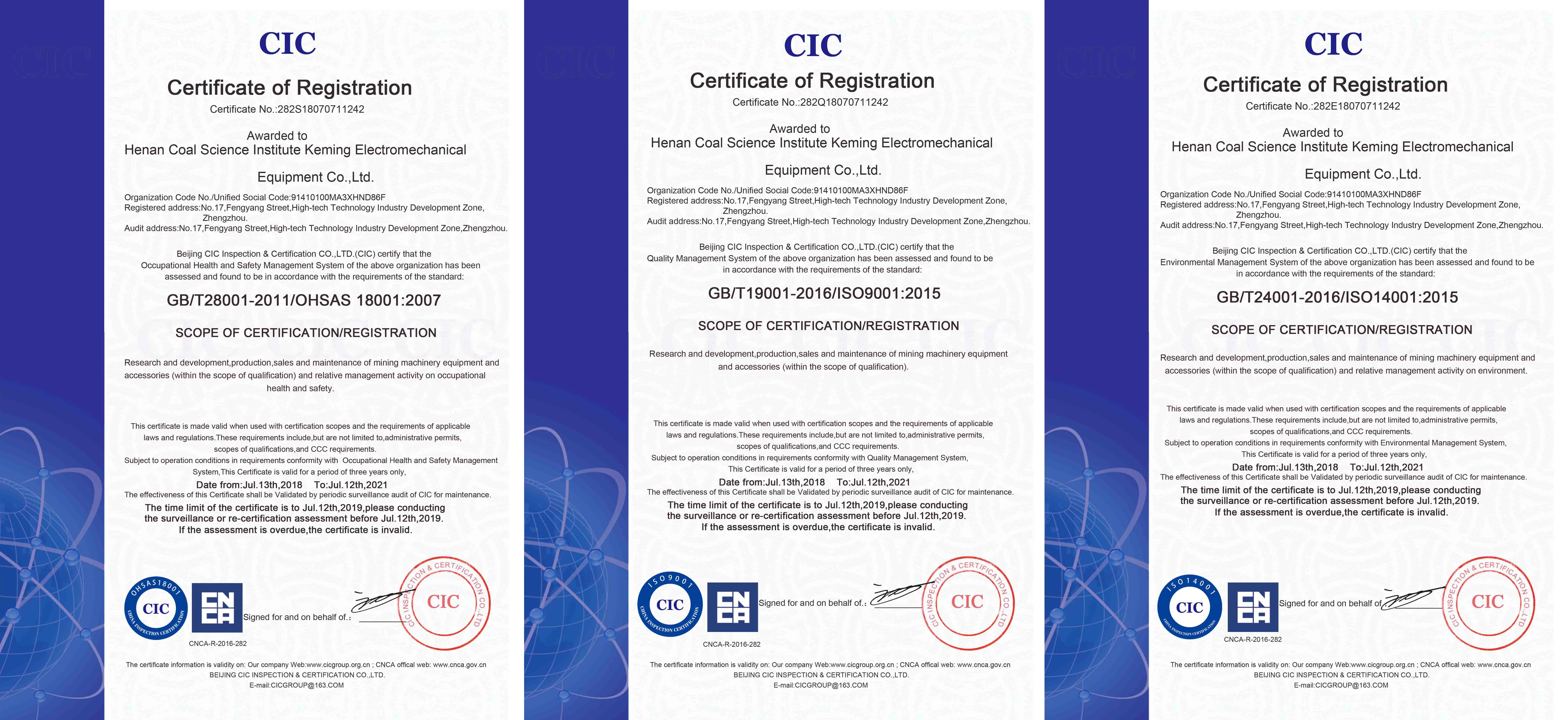

Certifications

FAQ

---Shotcrete Machine, Gunite Machine, Concrete Spraying Machine



1. Q: Which shotcrete machine should we choose?

A: To recommend the most suitable model, please tell us:

- Material: dry / damp mixture, or ready mixed wet mixture

- Capacity: 3m3/h, 4m3/h, 5m3/h, 6m3/h, 7m3/h, 9m3/h

- Delivery distance (horizontally / vertically):

- Driven type: electric motor, pneumatic motor, diesel engine



2. Q: What is the vulnerable part? How many spares should we prepare?

A: After long-time running, the rubber plate, steel plate, rubber cavity, spraying nozzle, delivery hose may get worn. We will offer some spares for free.

Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale -how many cubic meters you will spray.



3. Q: Can we have customized model?

A: Yes. Customized production and OEM production are available according to your actual requirements.



4. Q: Do i need technical skills to operate this machine?

A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.



5. Q: What should we do if there are some problems with the machine?

A: The Operate Instruction will help with routine maintenance and common problems.

Also, you can contact us for technical instruction by email, instant messenger or live video etc.



6. Q: What is the lead time

A: 1 week for sample model, 2~3 weeks for customized model. It depends for mass production.



7. Q: How about the package

A: The machine will be wrapped by plastic film and packed by fumigation-free wooden case along with spare parts.



8. Q: How to place an order?

A: Both online order and offline order are acceptable.

It is suggested to place online order with a Trade Assurance to get full protection for first order.



9. Q :How to pay for this order?

A: Generally, TT, 30% deposit 70% before shipment;

   L/C at sight (high bank charge, not suggest, but acceptable);

   100% TT in advance (especially for small amount and spare parts etc.)
