4-20ma pressure transmitter

Click here to contact
Product details
Warranty:12 Months;Output signal:4-20mA/RS485/0-5V/10V/I2C;
Port:Xi'an/Shenzhen/others;Electrical connector:Hirschmann/M12/PG7;
Medium temperature:-40°C~150°C;Application:Water Oil Air Pressure Measurement;
Protection class:IP65;Certificates:Explosion-proof certification;
Payment Terms:L/C,T/T,Western Union,MoneyGram,PAYPAL;Package Preview:;
Power supply:12~30v;Place of Origin:Shaanxi China;
Supply Ability:2000 Piece/Pieces per Month;Packaging Detail:Standard export packing(User Guide/Calibration Certificate/Certificate of qualification/Plastic bag/Shock Resistance/carton);
Model Number:QYB100;Brand Name:XINGYUTENG;
Medium:Gas/Liquid/Oil;Housing material:304 Stainless Steel;
Product Description

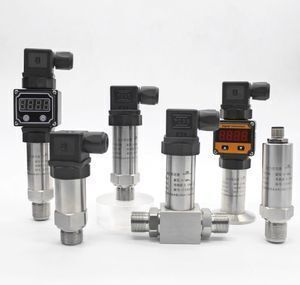

4-20ma Pressure Transmitter

Overview

4-20ma Pressure Transmitter is the most popular pressure transmitter, its pressure diaphragm material is diffusion silicon and the housing shell is stainless steel which is easy to install. [china 4-20ma IP65 pressure transducer sensor] has high stability and reliability which could support remote transmission. It has strong anti-interference and high shock resistance, widely used in pneumatic system, hydraulic system, environmental protection and medical industry, etc.

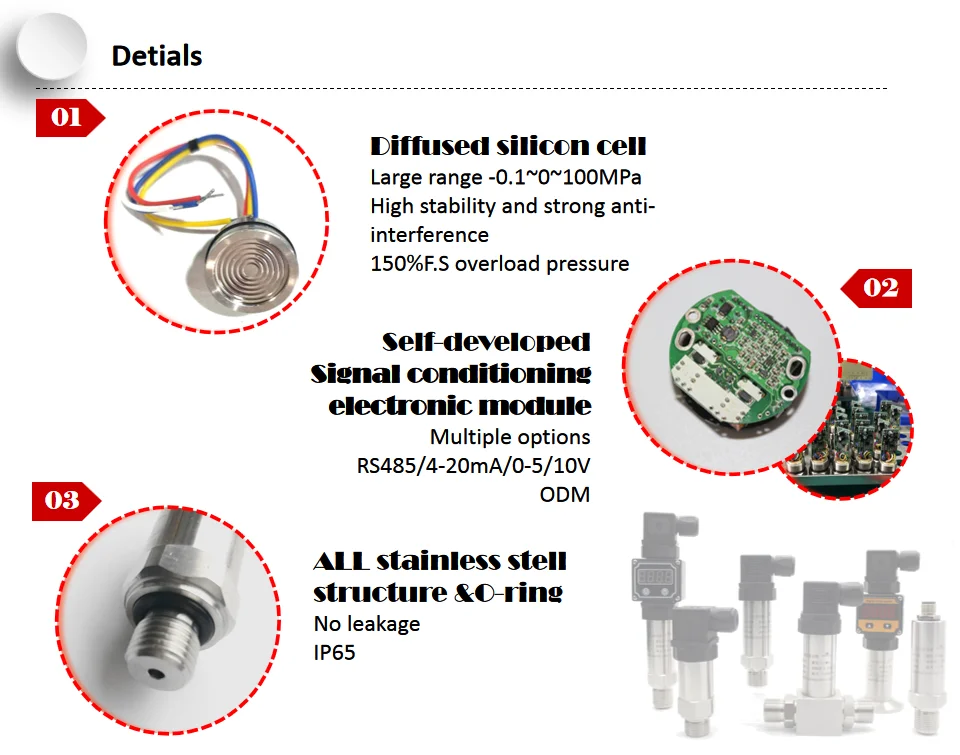

Main Features

1. Wide measuring range

2. Diffusion silicon sensor and stainless steel case for multi medium

3. High accuracy and high stability

4. Strong anti-interference design

5. Remote transmission

6. Protection grade IP65

SPECIFICATIONS FOR QYB100 PRESSURE TRANSMITTER
PRESSURE RANGE
-0.1~100MPa
ACCURACY
0.25%F.S
STABILITY
≤0.1%/year
POWER SUPPLY
12~30v
WORK TEMPERATURE
-30°C~80°C
MEDIUM TEMPERATURE
-40°C~150°C(over 80C° shall equipped with heat radiator)
OVERLOAD CAPACITY
150%F.S
BURST CAPACITY
300%F.S
PRESSURE TYPE
Gauge pressure/Absolute pressure(vacuum)/seal pressure
RELATIVE HUMIDITY
0~90%
PROTECTION LEVEL/IP RATING
IP65
MEDIUM
Gas/Liquid/Oil etc
Sensor
Diffused sillcon
Model Selection

+
SELECTIONS FOR QYB100 PRESSURE TRANSMITTER

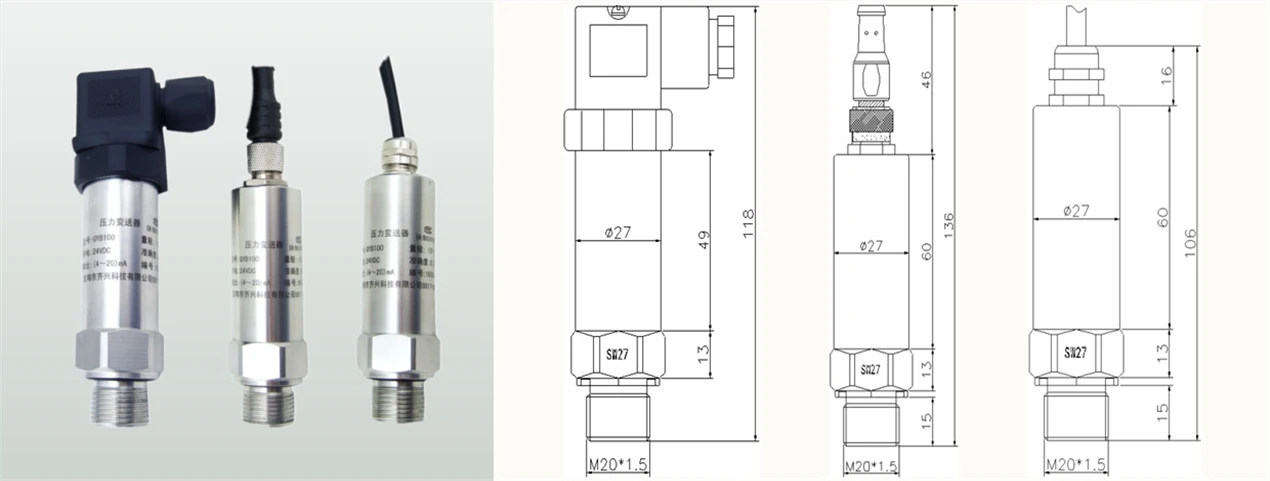

Model
QYB100H

Electronic connection
Hirschmann/DIN
QYB100M
M12
QYB100Z
Cable


Output signal
I
4-20mA
R
RS485
V
0-5V/10V
OTHERS
Please contact us for customization


Threaded connection
G12
G1/2
G14
G1/4
M20
M20*1.5/M14*1.5
OTHERS
Please contact us for customization
Application

Company Information



FAQ

1. How long will you reply me?

Normally in 1 hours, no more than 12 hours.

2. How can I get the quotation?

Please provide specification and application including sensing element, pressure range, thread connection, pressure type, medium, electronic connection, shell material etc. More details, more accurate quotation and earlier response.

3. Can I get sample?

Contact with our staff online directly and they would check stock for you.

4. Can I visit your factory?

You are warmly welcomed, our factory is located at Baoji city, Shaanxi province, China.

5. Can we use our logo on the products?

Yes, we provide OEM/ODM service.

6. How long is your warranty period?

Warranty period from the date of acceptance of 12 months.

7. What is your terms of payment?

We could accept T/T, L/C, Western union, PayPal, credit Assurance.
