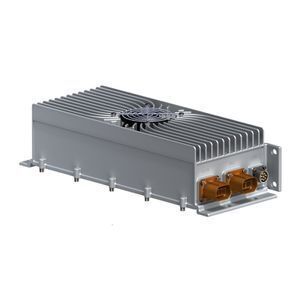

5000W EV AC-DC DC-DC charger for electric rickshaw

Supplier: Shijiazhuang Dilong Technology Co., Ltd.
Region: Hebei, China
Contact: Mr Walker Xing
Price: $240.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Power:	5000w;	Weight:	6kg;
Port:	Tianjin;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Brand Name:	DILONG;	Supply Ability:	5000 Piece/Pieces per Month charger for golf cart;
Cooling:	air-cooled;	Packaging Detail:	Carton box;
Input Voltage Range:	85-264vac; 50-90vdc;	Output Current:	70A(Rated); 84A(Max);
Product Name:	charger for electric rickshaw/golf cart;	Size:	390.5171.75113 mm;
Model Number:	DA5KM37-72C-14RC;	Efficiency:	95%;
Degree of protection:	IP67;	Output Voltage:	14vdc;
Place of Origin:	Hebei China (Mainland);

Product Description

DA5KM37-72C-14RC is a forced air cooling, specially designed for pure electric vehicles, and a digital converter for the conversion and integration of OBC(On-board Charger) and DCDC(DC/DC Converter). Reduced the number of the vehicle wiring harness connector and the trouble fission power installation is one of the world's highest power density products, various performance indicators have reached or exceed the international peer level, trouble-free operation for longer.

Specification

M37(C+D) OBC(On-board charger) Specification DA5KM37-72C
Mains Input	Rated Voltage		Vac	220
	Voltage Range		Vac	85~264(85~175 the power dropped to 1200W)
	FREQ RANGE		HZ	47~63
	Efficiency(MAX)		%	≥94
	Power Factor			≥0.99@220Vac,rated power
	Current		A	≤16A@220Vac
Mains output	Rated output voltage		Vdc	72
	Constant voltage output range		Vdc	50~90 (According to customer battery decision)
	Maximum current		A	35
	Maximum power		W	3300
	Output voltage accuracy		V	≤±1%Vo input 176Vac-264Vac,output 10%-100% load
	Line regulation		%	≤±0.2%Vo input 176Vac-264Vac,output 100% load
	Load regulation		%	≤±0.5%Vo input 220Vac,output 10%-100% load
	Ripple and noise		mV	≤±3%Vo 20M oscilloscope,Twisted-pair cable test.
Auxiliary supply	Rated output voltage		Vdc	12(For BMS awakening signal)
	Rated output power		W	50
M37(C+D) DC/DC(DC/DC Converter) Specification DE1000M37-72S14RC
Project		Specifications			Note
Rated input voltage/current		DC:72V/15A
Input voltage range		DC:50V~90V			>75V, reduce to 30A
Output rating		DC:14V			(The shell is DC14V output negative)
Output current		70A(rated), 84A(max/6mins)
Output power		1000W(rated), 1200W(peak)
Output voltage accuracy		≤±1%
Line regulation		<±0.2%			Input, output full range
Load regulation		<±0.5%			Input, output full range
Output Over-current protection		85A
Input over-voltage protection		>DC100V			Automatic recovery
Input under-voltage protection		<DC50V			Automatic recovery
Output Over-voltage protection		>DC17V			Automatic recovery

Advanced testing

Our customer

Application

FAQ

Q: Are you trading company or manufacturer ?
A: We are manufacturer.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q: What is the key technical advantage of your products?
A: We adopt the digital control technology, which is convenient for remote upgrade and full automatic production.

Q: What is your Engineering Testing and Validation capabilities?
A:We will response you within 2 hours and solve the problem within 24 hours.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
