heat press machine for little plates

Supplier: Microtec Technology Co., Ltd
Region: Guangdong, China
Contact: Ms Sophia Microtec
Price: $196.00 /set
Min. Order: 1 set

Click here to contact

Product details

Power:	500-1000W;	Under Plate:	Exchangeable;
Maximum Temp:	225 C;	Platen Size:	15x15cm;
Printable Articales:	Up to 10mm Thickness;	Machine Type:	Auto Release, Clamshell;
Place of Origin:	Guangdong China;	Opening Angle:	35 degrees;
Packaging Detail:	BOXES;	Voltage:	120V/ 220V;
Port:	SHENZHEN;	Payment Terms:	T/T,Western Union,PAYPAL;
Supply Ability:	2000 Set/Sets per Month satisfy your require;	Gas Spring Control:	Yes;
Controller:	GY-04 Digital Time & Temperature Control;	Brand Name:	N/A;

heat press machine for little plates

Technical Parameters:

Machine Type: Auto Release, Clamshell

Platen Size: 15x15cm
Under Plate: Exchangeable
Controller: GY-04 Digital Time & Temperature Control
Printable Articales: Up to 10mm Thickness
Opening Angle: 35 degrees
Gas Spring Control: Yes
Voltage: 120V/ 220V
Power: 500-1000W
Time Range: 0-999 sec.
Maximum Temp: 225 C
Temperature Accuracy: ±0.5%
Packing Size: 71*40*59cm
Gross Weight: 24.1kg

Description:

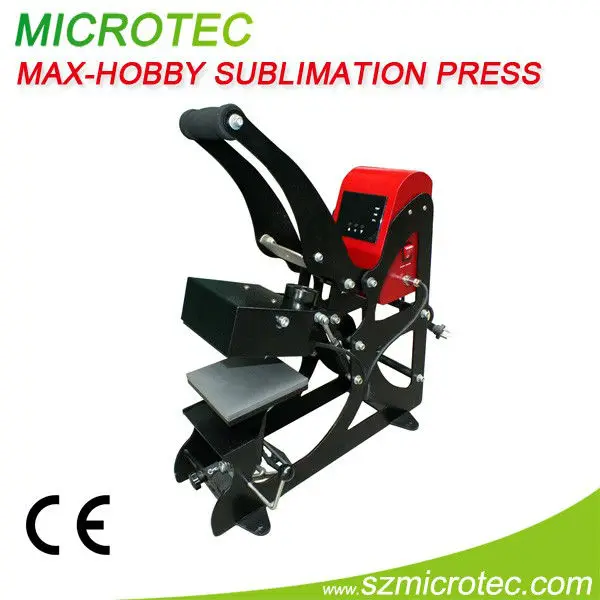

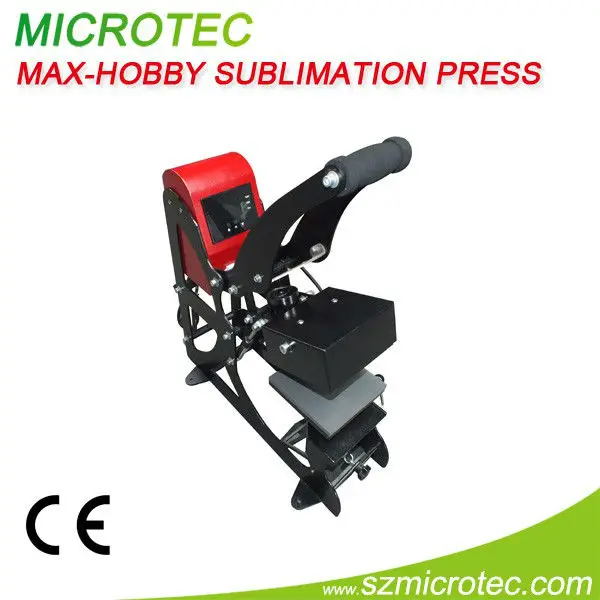

Auto Open Heat Press, MAX HOBBY

Small size, better printing, save space. It can imprint Keychains,mouse pad,etc. It’s well known its multipurpose and economy cost.

Feature:
Lightweight and portable for use at malls, flea markets, shows, and more .
Totally integrated digital time and temperature.
Temperature readout accuracy +-2°C.
Teflon-coated heat platen

Application:
Mini items like: ID Tag Pendant,phone case, metal mirror, keyring, coaster, tile,ornament, Name Card,Mini T-shirt,Card Case

Heat Platen Test:

Each Signle Copper sheathed heating rod is tested before it is cast in an aluminum alloy or Mica Sheet. These heating rods are comparable to those found in industrial ovens that heat up quickly, work efficiently and last many years. With our industrial quality heat castings, you can get five years worry free warranty.

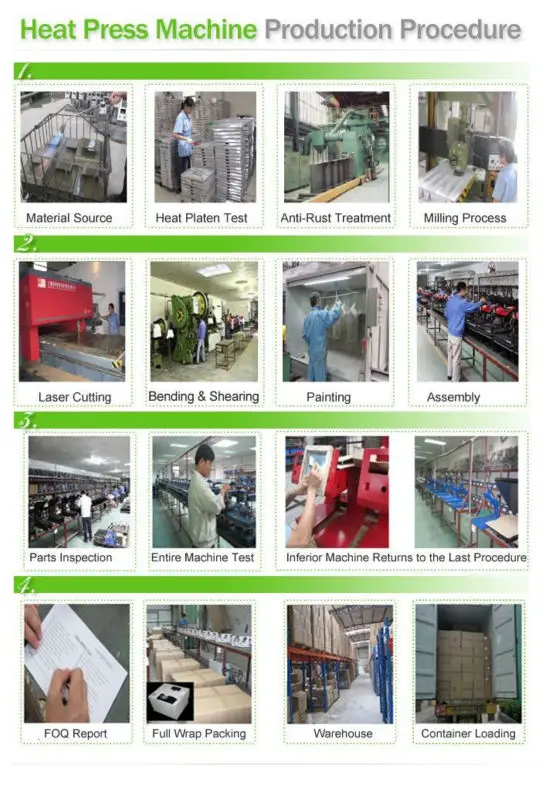

Quality Control on Finished Machine:

All Microtec heat presses are strictly tested under the following procedures before shipping out.
1) Turn on the machine, let it heating up to 200 degree Celsius.
2)Keep the temperature stay at 200 degree Celsius for at least 20 minutes.

Package: All the machines are packed with cartons, which has full wrapped styrofoam filling the interspace and there are manual instructure offered for each set of machine.

Machine Warranty:

Microtec's primary service goal is to support all of our customers, could deal with their heat transfer business without interruptions.

So Microtec offers FREE SPARE PARTS with quantity order and the following warranty:

*Free lifetime technical support on all heat presses.

*One-year warranty on entire press & parts.

*Five-year warranty on castings and welds.

*Five-year warranty on heat platen.

*Half- year warranty on mug, plate and cap heaters.

Application

For T-shirt, Puzzle, Mouse Pad, Metal Board, Fridge Magnet, Coaster, Slipper, Bag, Cushion etc

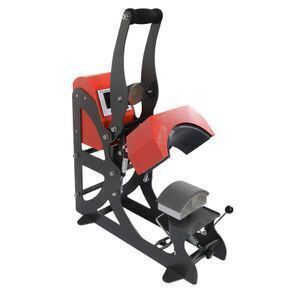

Product Display
