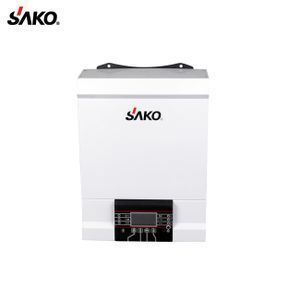

SAKO SUNON-PLUS 3KW HYbrid Solar Inverter High Frequency With WIFI With MPPT Charge Controller

Supplier: Shenzhen King Sako Electronics Co., Ltd.
Region: Guangdong, China
Contact: Ms jenny SAKO
Price: $260.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Max.AC charge Current:	60A;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Cash;
Port:	Shenzhen;	Load Power (W):	3000W;
Output Voltage:	220VAC /230 VAC;	Efficiency (DC to AC)(Peak):	93%;
Output Frequency:	50HZ/60HZ;	Inverter Efficiency:	93%;
AC Input Voltage:	230VAC;	Place of Origin:	Guangdong China;
Max.Charging Current(AC + solar):	80Amp MPPT;	Brand Name:	SAKO;
Type:	DC/AC Inverters;	Packaging Detail:	Standard international paper box packing.;
Weight:	12KG;	Output Voltage (V):	220VAC /230 VAC;
Size:	570X395X215MM;	Certificate:	CE;
Warranty:	5;	Nominal DC Voltage:	24VDC;
Output Current:	60A;	Specification:	Normal;
Input Voltage:	24VDC;	Max. PV Array Power:	4000 W;
Supply Ability:	10000 Piece/Pieces per Month lSubject to the actua order price and quantity.;	Output Type:	SINGLE,DUAL,TRIPLE,multiple;
Nominal PV VoltageVoltage:	500VDC;	Model Number:	SUNON-PLUS 3KW/24V;

SAKO SUNON-PLUS 3KW HYbrid Solar Inverter High Frequency With WIFI

With MPPT Charge Controller ,can work without battery

Main Features :

Product Description

TECHNICAL PARAMETER
Model	SUNON-PLUS 3K	SUNON-PLUS 5K
The rated power	3KW	5KW
INPUT
Voltage	230 VAC
Selectable Voltage Range	170-280VAC (For Personal Computers), 90-280VAC (For Home Appliances)
Frequnecy Range	50Hz/60Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Model)	230VAC ± 5%
Surge Power	6000VA	10000VA
Efficiency(Peak)	90-93%
Transfer Time	15ms (For Personal Computers), 20ms (For Home Appliances)
Wave form	Pure sine wave
BATTERY
Battery voltage	24VDC	48VDC
Floating Charge Voltage	27VDC	54VDC
Overcharge Protection	31VDC	63VDC
SOLAR CHARGER&AC CHARGER
Maximum PV Array Power	4000W
MPPT Range at Operation Vol.	120-450VDC
Maximum PV Array Open Circuit Vol.	500VDC
Solar Charger Type	MPPT
Maximum AC Charge Current	60A
Maximum solar Charge Current	80A
PHYSICAL
Communication Interface	Removable USB/RS232/RS485/Bluetooth/Dry-contact
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity (Non-condensing)
Operation Temperature	0℃-50℃

new products

other products

Company Information

Certifications

Packaging & Shipping

FAQ

Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.

Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.

Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.

Q4: What is the warranty of inverter?
A4: One year warranty on SAKO-Solar product.

Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
