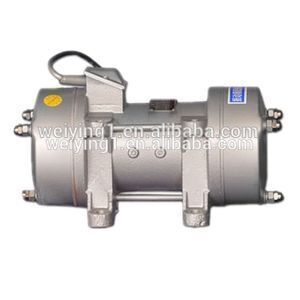

ZW external electric concrete vibrator
- 30.00 set
| Delivery Detail: | 3 days; | Drive Mode: | Electric Vibrator; |
| Power(W): | 3kw; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Supply Ability: | 3100 Set/Sets per Month electric concrete vibrator; | Vibrating Amplitude: | 1.6mm; |
| Force: | 1350kgf; | Certification: | ISO9001; |
| Size: | 560*280*305mm; | Voltage: | 380v; |
| Length of Flexible Shaft: | 4m; | Net weight: | 45kg; |
| Weight: | 43kg; | Type: | Surface; |
| Port: | shanghai,tianjin,qingdao; | MOQ: | 1 set; |
| Product: | ZW external electric concrete vibrator; | Dimension(L*W*H): | 550*290*330 mm; |
| Packaging Detail: | carton or wooden case for electric concrete vibrator; | Voltage: | 380v; |
| After-sales Service Provided: | No overseas service provided; | Model Number: | ZW-13; |
| Brand Name: | weiying; | Usage: | Buildings, dams, bridges; |
| Power: | 3kw; | Condition: | New; |
| Material: | steel; | Place of Origin: | Henan China (Mainland); |
| Ferquency: | 50/60hz; | Frequency: | 2840rpm; |
ZW external electric concrete vibrator

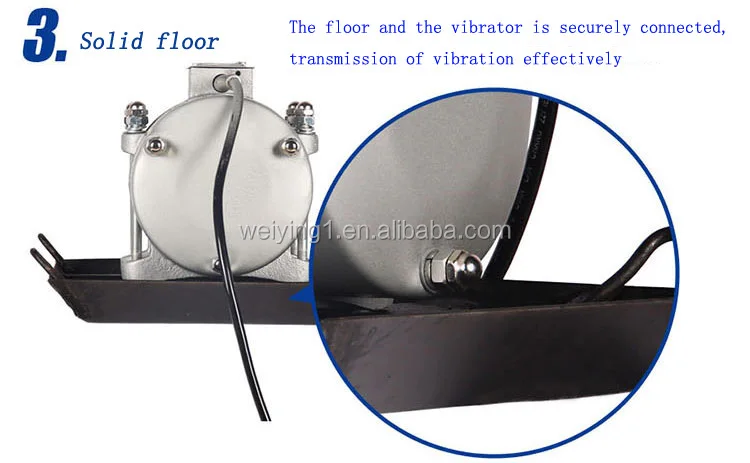

• ZW external electric concrete vibrator is a type of vibration motor, the eccentric block and a motor power fit each single or three phase asynchronous motor rotor shaft which are arranged on both ends, the centrifugal force generated by the rotation of the eccentric block vibration force, drive the whole body vibration. Concrete plate vibrator attached on the surface of concrete compaction, leveling instrument, operation at the bottom of the ZW plate vibrator installation of a plate, attached to the surface of plate and concrete, the excitation force is transmitted to the concrete mixture.
Application:

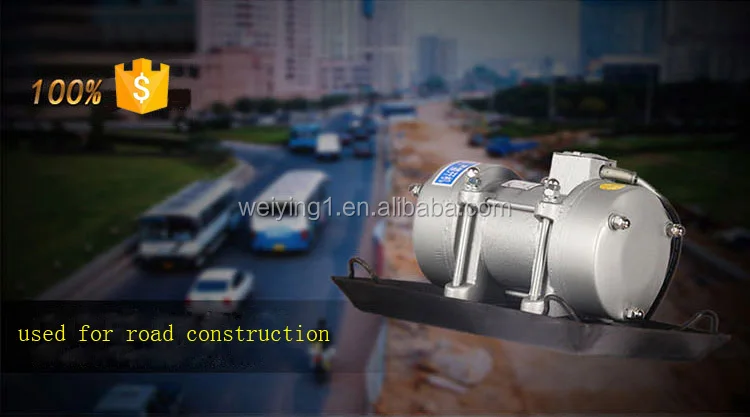

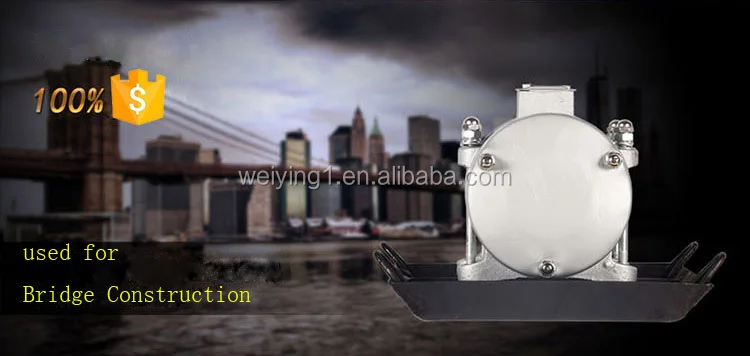

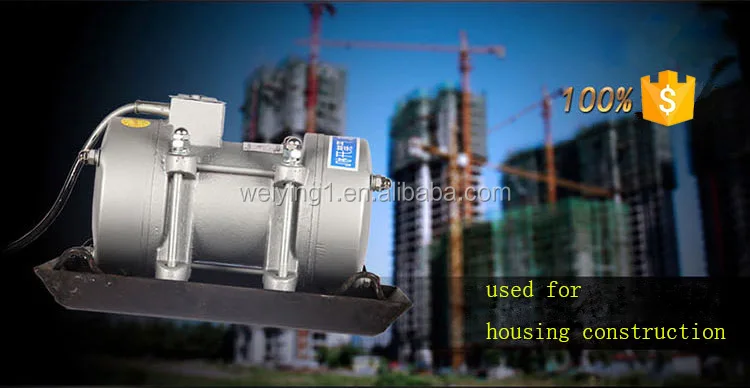

ZW external electric concrete vibrator, mainly used in construction, building the plane vibration, dam,bridge, prefabricated concrete tamping.
Characteristics of ZW external electric concrete vibrator :
1. ZW external electric concrete vibrator with excitation frequency, exciting force, small amplitude, concrete,plasticity increase liquidity, improve the component compactness, rapid prototyping,the construction quality can be greatly improved.
2. ZW external electric concrete vibrator with a totally enclosed and high strength, and easy disassembly,repair, four core rubber cable for power line.

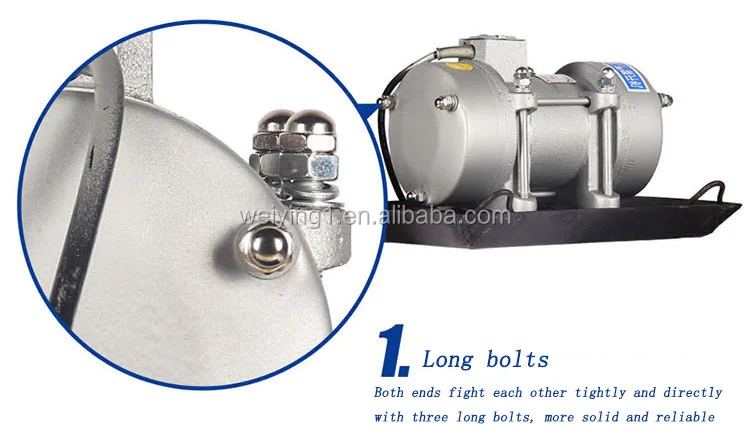

3. ZW external electric concrete vibrator shell are made of cast iron, with three long bolts directly to each other tightly splice cover both ends, more reliable.
| Model | Voltage (V) | Power (KW) | Frequency (HZ) | Exciting Force (kg) | Weight (kg) | Size (cm3) |
| ZW-1.5 | 380V/220 | 0.15 | 50/60 | 150 | 6/7 | |
| ZW-2.5 | 380/220 | 0.37 | 50/60 | 250 | 12/13.5 | 210×150×160 |
| ZW-3.5 | 380/220 | 0.75 | 50/60 | 350 | 14.5/16 | 320×200×210 |
| ZW-5 | 380/220 | 1.1 | 50/60 | 500 | 22/25 | 400×225×250 |
| ZW-7 | 380/220 | 1.5 | 50/60 | 700 | 23/25 | 400×225×250 |
| ZW-10 | 380/220 | 2.2 | 50/60 | 980 | 34/36 | 500×255×285 |
| ZW-13 | 380/220 | 3 | 50/60 | 1350 | 45/52 | 560×280×305
|
