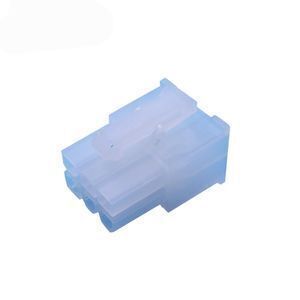

Double Row C4201 & C4202 5557 & 5559 connector

Supplier: Zhejiang Lianhe Electronics Co., Ltd.
Region: Zhejiang, China
Contact: Ms Andrea jin
Price: $0.001 /piece
Min. Order: 1 piece

Click here to contact

Product details

Place of Origin:	Zhejiang China;	Packaging Detail:	Housing in plastic bag and Terminals in double paper board,then in cartons, 50CM * 40CM * 50CM.(negotiable);
Product name:	Double Row C4201 & C4202 5557 & 5559 connector;	Pitch:	4.2mm;
Type:	wire to board;	Pins:	3P;
Row:	Double Row;	Gender:	male and female;
Poles:	2-24P;	Terms of trade:	EXW,FOB,CIF,CPT;
Material:	PA66 and Brass Tin;	Payment Terms:	L/C,D/P,T/T,MoneyGram,Paypal,Escrow;
Color:	White/Black;	Delivery time:	Stock goods within 1 day;
Port:	Shanghai/Ningbo;	Model Number:	C4201 & C4202;
Supply Ability:	1.0E7 Piece/Pieces per Week;	Serives:	ODM/OEM;
Market:	Asia,America,Europe;	Brand Name:	LHE;
Application:	POWER;

Company Information

ZHEJIANG LIANHE ELECTRONICS CO LTD
Year of Established:	1996
Registered address:	NO 8 ChuangxinRoad,YueqingwanZone,Nanyue Town Yueqing,WenzhouCity,Zhejiang China
Registered Capital:	RMB5080000
Number of Employees:	210
Overall floorage(sqmm):	20000(office occupy 2600sqmm,workshops occupy 17000sqmm)
Company Type:	Manufacturer
Brand:	LHE
Language:	English,Japanese,Korean
R & D capabilities:	39(19person have 10year experience,15 person have 5year experience,5person have 3 year experience)

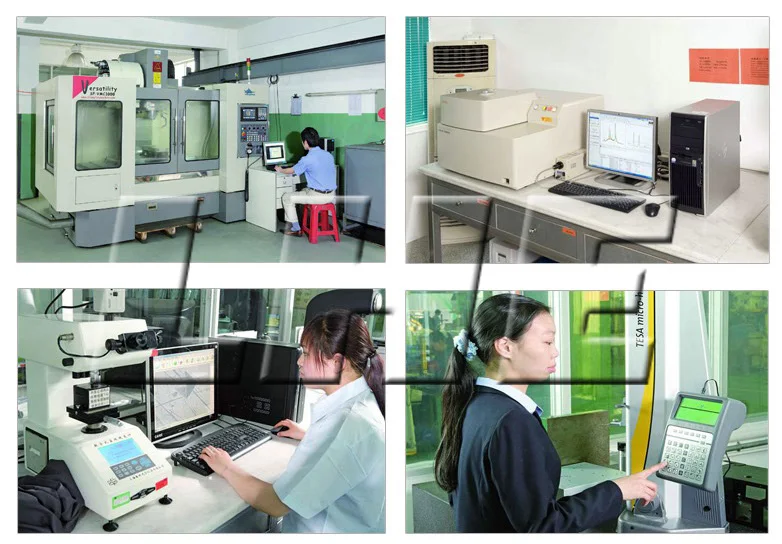

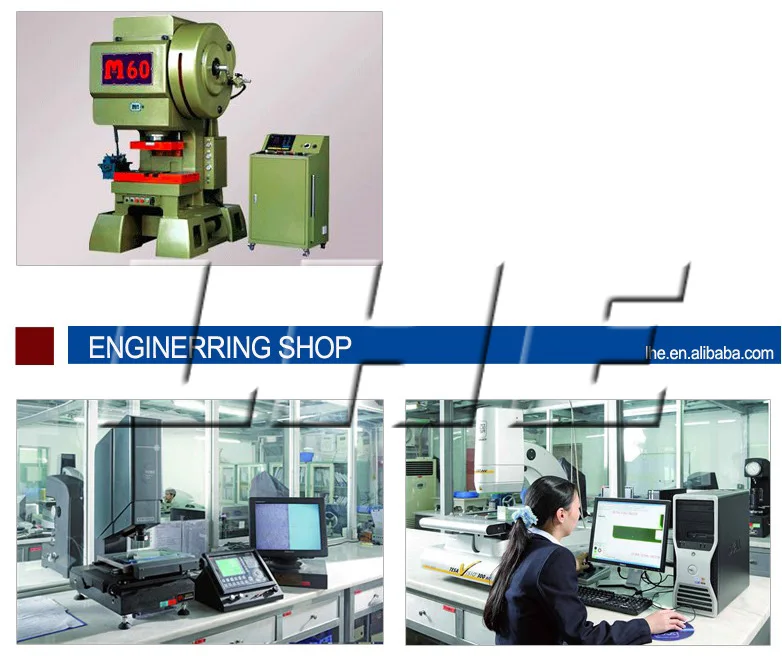

Production Equipment:	njection molding machine (QTY:50) Gantry precision high-speed presses(QTY:40, from Taiwan) Automaticmachine(QTY:60,30 of the made by LHE) low-speed Wire EDM:(QTY:3,from Japan) Electric pulse machine(QTY:10,from Switzerland ) Grinding Machine(QTY:30,from Taiwan)
Measuring Equipment:	Energy dispersive X-ray Fluorescence Spectrometer(QTY:1,Japan) CCD inspection equipment(QTY:5) Salt mist test, glow wire tester,Tracking test,Needle flame tester,Leakage test machine,High and low temperature test chamber,Vivtorinox hardness tester,Image measuring instrument, Insulation resistance tester, Resistance tester, (QTY;1 of each)
Marketing Zone	Southeast Asia, North America, South America, Mid East, Western Europe, Northern Europe, Africa, Domestic Marke

Product Description

Specification:

Poles:2 to 24P

Current rating:7.0A AC,DC

Voltage rating:250V AC,DC

Temperature range:-25°C to +85°C

Contact resistance:≤20mΩ

Insulation resistance:≥1000mΩ

Withstand voltage:1500V AC/minute

Applicable wire:AWG #16 to #22

Applicable PC board thickness:1.6mm to 2.0mm

Housing:

Part No.:C4201-H02XN,C4201-HB02XN

Material:Nylon 66

Packing Q'TY:1000pcs/bag

Mates With C4201T Terminal

Part No.:C4202-H02XN

Material:Nylon 66

Packing Q'TY:1000pcs/bag

Mates C4202TA,C4202TB Terminal

Terminal:

Part No.:C4201T

Material:Phosphor bronze tin

Wire Range:AWG#18-#22

Q'TY:5,000pcs/reel

Mates With C4201 Series Housing

Part No.:C4202TA,C4202TB

Material:Phosphor bronze tin

Wire Range:AWG#18-#22

Q'TY:5,000pcs/reel

Mates With C4202 Series Housing

Wafer:

Part NO.: C4202-WR02XN, C4202-WV02XN,C4202WRL02XN,C4203-WV02XN,C4203-WV02XN

Soldering lug material:Brass Tin

Pin material:Brass Tin

Housing:PA66

Color:Normal white

Package:1000pcs/bag

Mates with C4202 Series Housing

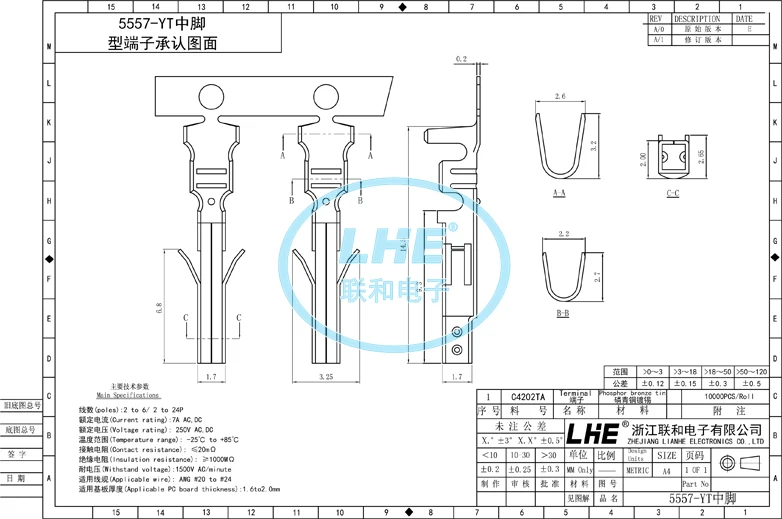

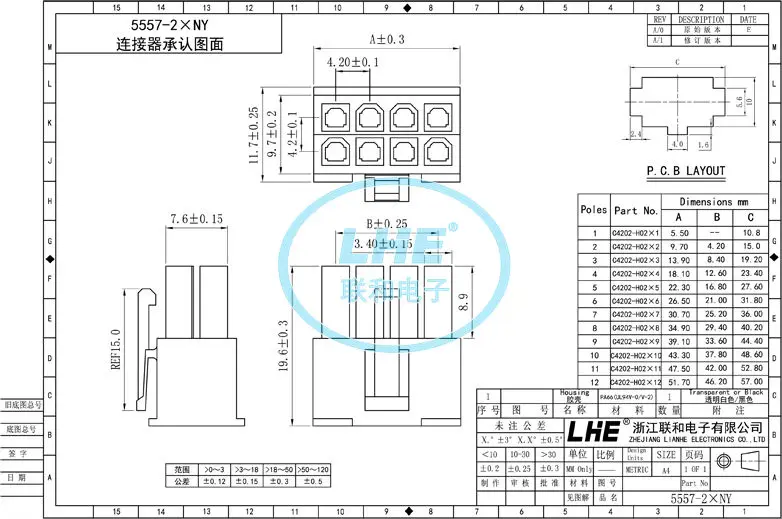

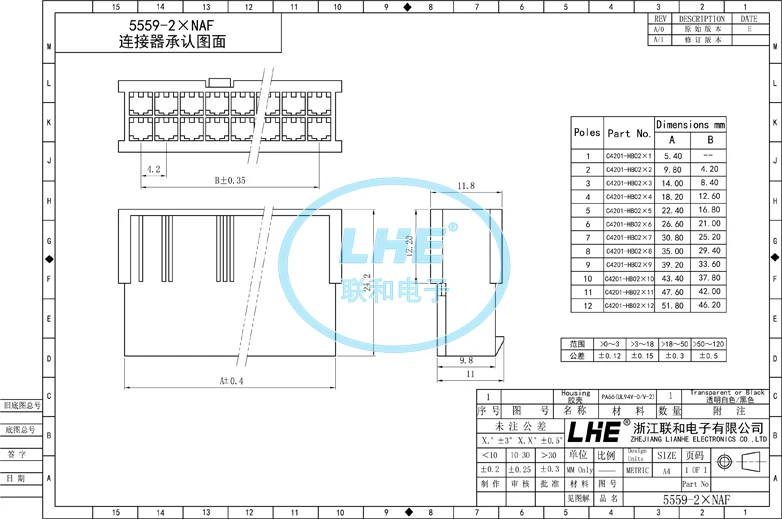

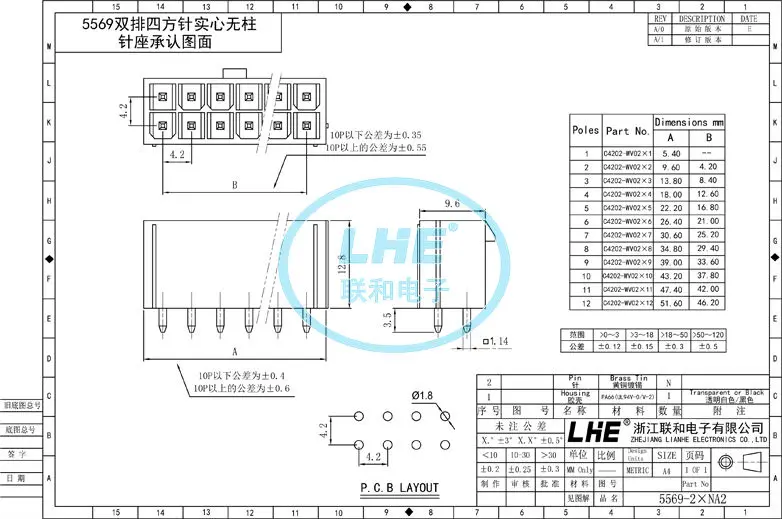

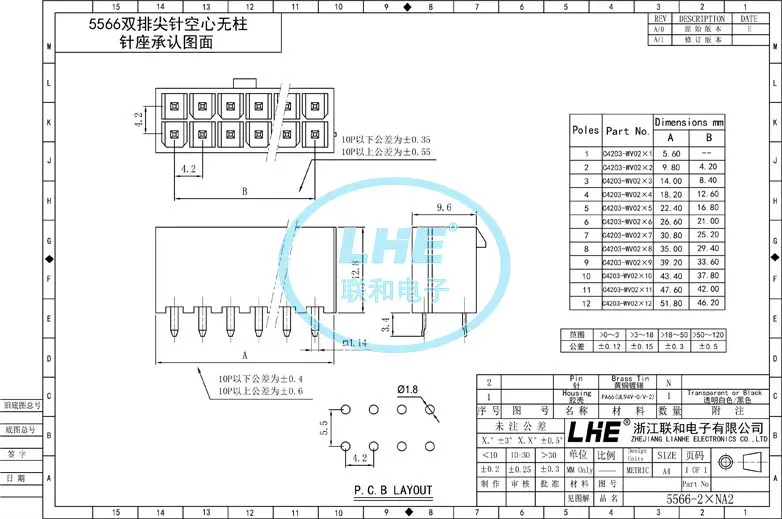

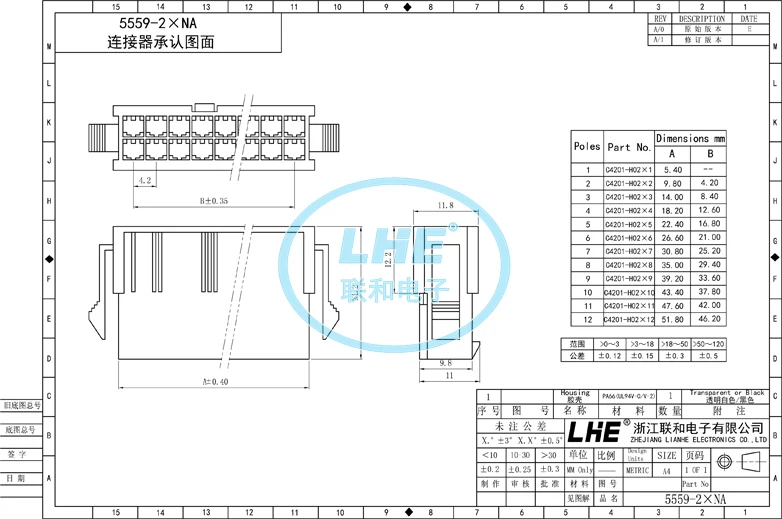

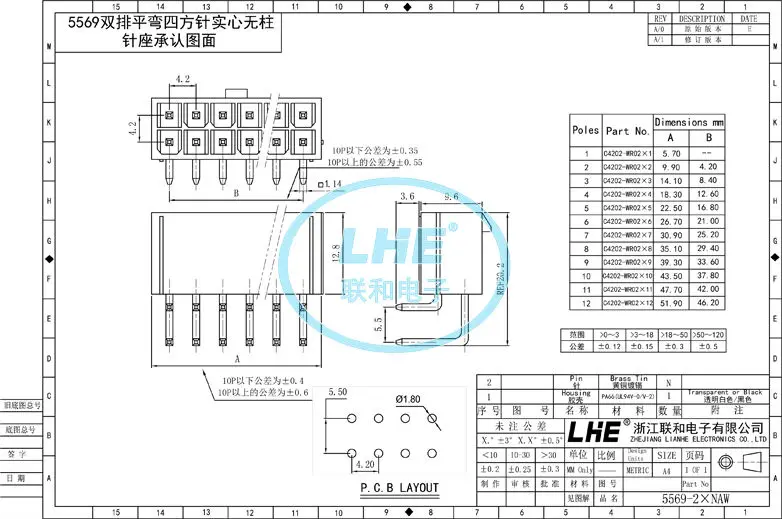

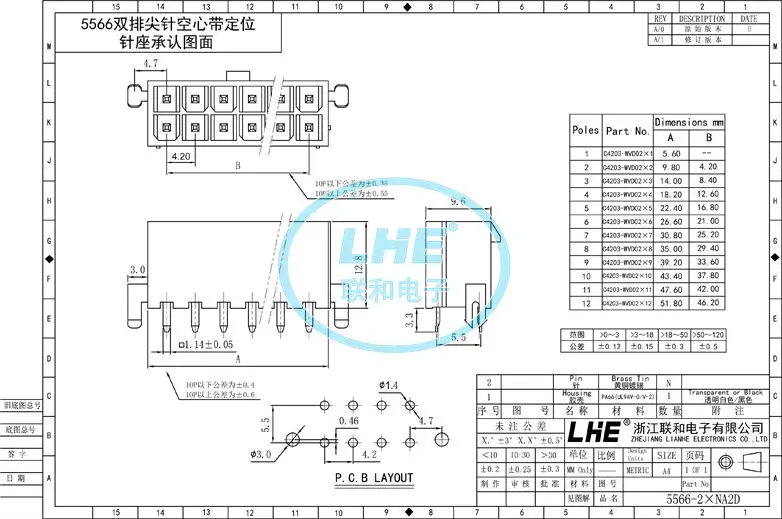

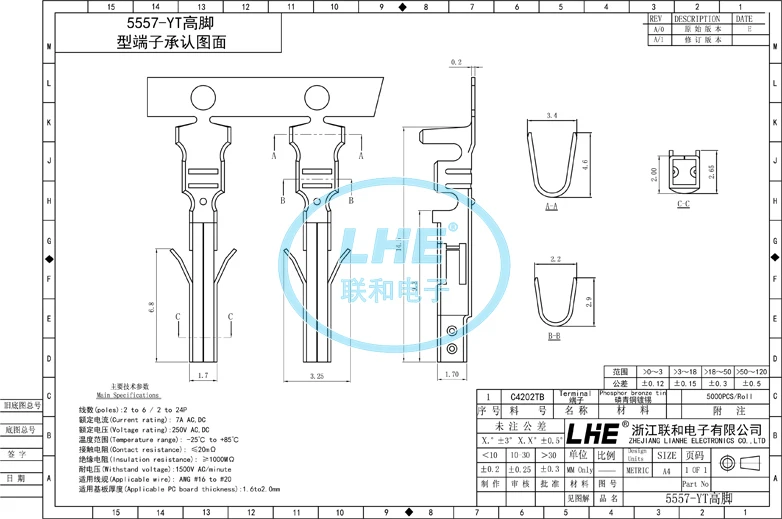

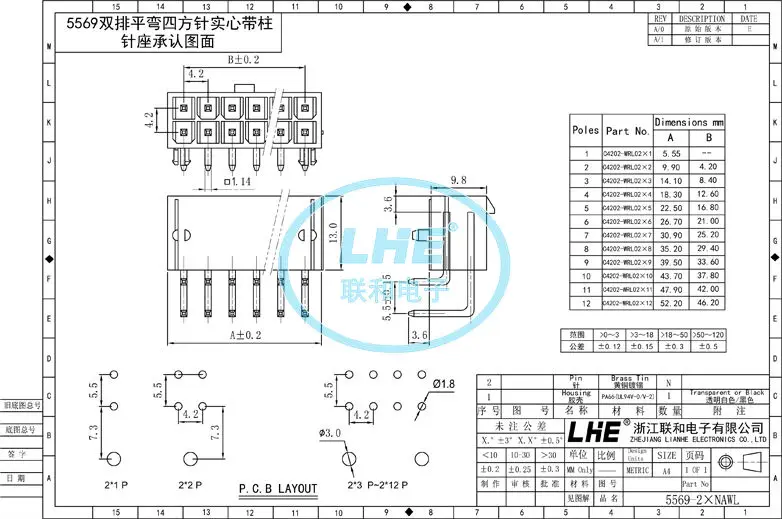

Drawing:

Our Services

1.Provide free samples

2.Accept ODM/OEM

3.We can do CO, Form F ect.

4.Terms of trade:EXW,FOB,CIF,CPT ect.

Packaging & Shipping

Housing in plastic bag and Terminals in double paper board,then in cartons, 50CM * 40CM * 50CM.(negotiable),Below is a picture of the cartons in our warehouse.
