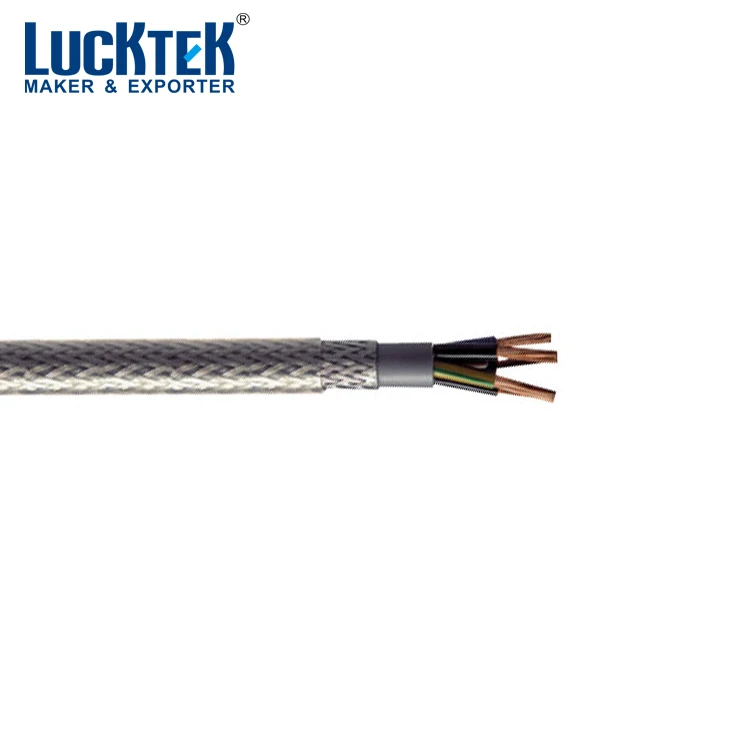

1.5mm 4 Core SY Control Flexible Cable with GSWB

Supplier: Ningbo Lucktech Electronics Co., Ltd.
Region: Zhejiang, China
Contact: Ms Cindy Cheng
Price: $0.50 / >=5000 meters
Min. Order: 5000 meters

Click here to contact

Product details

Conductor Material:	Copper;	Voltage Rating:	300/500V;
Payment Terms:	L/C,D/A,D/P;	Place of Origin:	Zhejiang China;
Insulation Material:	PVC;	Delivery Detail:	15 DAYS;
Port:	ningbo or shanghai;	Certification:	RoHS & CPR compliant;
Operating Temperature:	-15°C to +70°C;	Brand Name:	LUCKTEK;
Standard:	Generally to BS6500, VDE0250;	Packaging Detail:	Wooden, Steel-Wooden Drums or according to customers' request;
Supply Ability:	40000 Kilometer/Kilometers per Month;	Jacket:	PVC;
Sheath color:	black or transparent;	Braiding:	GSWB (Galvanised Steel Wire Braid);
Application:	Other;	Model Number:	SY Control Flexible Cable;

Product Description

SY Control Flexible Cable with TCWB

Application: Used as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines, conveyors and for computer units. Suitable for fixed installations or for flexible use in conditions of light mechanical stress. Can be used outdoors or moist conditions indoors.

The braided screen offers the best possible protection against mechanical damage and offers a level of Electro-magnetic shielding. The galvanised coating helps protect against corrosion.

Standards: Generally to BS6500, VDE0250

Conductor: Class 5 flexible annealed plain copper conductors to BS EN 60228:2005 (previously BS6360), VDE0295, IEC 60228

Insulation: PVC (Polyvinyl Chloride) Type TI 2 complying with BS EN 50363-3:2005

Bedding: PVC (Polyvinyl Chloride) TM2 as specified in BS EN 50363-4-1:2005

Braiding: GSWB (Galvanised Steel Wire Braid)

Minimum coverage of braiding shall be 50%

Sheath: PVC (Polyvinyl Chloride) conforming to TM 2 as specified in BS EN 50363-4-1:2005

Sheath Colour: Transparent or black

Voltage Rating: 300/500V

Operating Temperature: -15°C to +70°C

Minimum Bending Radius: 10 x overall diameter

Short Circuit Temperature: +160

Core Identification: Black with White numbers. (3 cores and above to include Green/Yellow).

RoHS & CPR compliant

Production Process

Certifications

More Products

Packaging & Shipping

About us

FAQ

Q: Is Lucktech a manufacturer or trading company?
A: Lucktech has its own invested factory, and also do some trading for the items we do not produce. We are competitive even for the trading items, as we have a strong sourcing team who concern about quality.

Q: What's the normal lead time?
A: For different items, we have different lead time, normally it is 15-35 days.

Q: Can We get samples for your products?
A: Yes, samples are available, but for some items, sample cost need to be charged, which can be returned after your formal order.

Q: Do you have CPR compliance for the cables?
A: Yes, now we get through the CPR Testing.

Q: What is your payment terms?
A: T/T, sight L/C, Western Union, Paypal.

Q: Do you have the OEM service?
A: Yes, we can accept the OEM, any legal information can be printed on the product.
