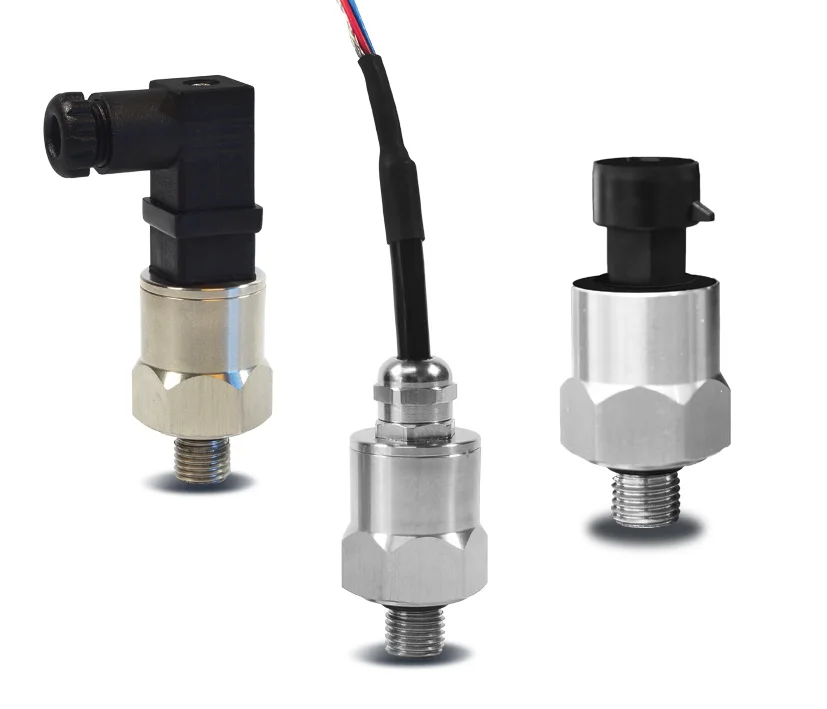

melt pressure transducer

Supplier: Shanghai Ryan Fluid Power Company Ltd.
Region: Shanghai, China
Contact: Mr Roc Zong
Price: $20.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Application:	industrial application, safety monitoring,mobile equipment;	Weight:	0.15 lbs (0.07 kg);
Port:	Shanghai, Qingdao, Ningbo Ports;	Diaphragm Material:	Standard: Nitrile Optional: Viton, EPDM, HNBR;
Max. Current:	100VA;	Maximum Overpressure:	9000 PSI (600 BAR);
Brand Name:	Ryan Hydraulics;	Packaging Detail:	3000 pieces package to 1 pallet. Ryan Hydraulic temperature transducer packaging process: 1.High density plastic wrap for temperature transducer 2.Environmental protection foam filler fixed position(special temperature transducer) 3.Packing into quality cartons 4.Wrap the cartons around damp proof film 5.Strapping to reinforce cartons and pallets temperature transducer;
Switch Type:	Blade Contact;	Max. Voltage:	42VDC;
Product name:	melt pressure transducer;	measuring:	Non corrosive gas, liquid, or steam;
feature:	Protection waterproof IP67,robust design;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Model Number:	RY-170;	Supply Ability:	50000 Piece/Pieces per Month;

Product Description

Temperature transducer is a robust product for measuring temperature in a wide variety of applications. It is offered in two sensing elements variations: solid state and PT1000. The solid state version is especially price competitive with the desired performance level.

Features:

Output: 4-20 mA
Chrome plated for high corossion resistance
IP 65 rated
Solid State or PT10000

Technical Parameters:

Measuring range	0~10KPa...1MPa…100MPa
Overload capacity	Two times FS pressure ((1.1 times FS pressure for 100MPa product)
Pressure type	Gauge pressure or absolute pressure or sealed reference pressure
Measured medium	Gas or liquid compatible with 316 stainless steel
Overall accuracy	±0.25%FS		±0.5%FS	±1%FS
Operating temperature range	-40°C~+150°C	-40°C~+200°C	-40°C~+250°C	-40°C~+250°C
Compensation temperature range	-20°C~+130°C	-20°C~+180°C	-20°C~+200°C	0°C~+250°C
Long-term stability	Typical: ±0.1%FS/year		Maximum: ±0.2%FS/ year
Zero point temperature drift	Typical: ±0.02%FS/ºC		Maximum: ±0.05%FS/ºC
Sensitivity temperature drift	Typical: ±0.02%FS/ºC		Maximum: ±0.05%FS/ºC
Range of power supply	12~36VDC(24VDC generally)
Signal output	4~20mA / 1~5V DC / 0~5V DC
Load resistance	≤(U-12)/0.02 Ω
Response time	≤3 ms
Thermal lagging	±0.1% (typical)
Enclosure protection degree	Plug type (IP65); cable type (IP67)
Safe explosion-proof	Ex iaII CT5
Vibration error	≤±0.01%FS(Axes X,Y,Z,200Hz/g)
Insulation resistance	100MΩ,500V DC
