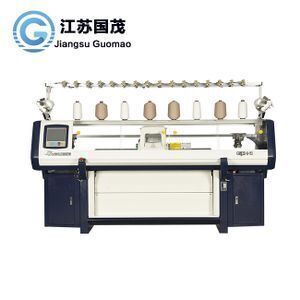

Double rib knitting cuff Jacquard jersey knit fabric flat knitting machine

Supplier: Jiangsu Gomor Textile Technology Co., Ltd.
Region: Jiangsu, China
Contact: Ms Daisy Tan
Price: $8500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Power(W):	1.3kw;	Certificate:	CE ISO;
Control system:	Hengqiang Computerized System;	Product Type:	SWEATER;
Speed:	1.2m/sec;	Needles:	Gold-beamlight Needles;
Computerized:	YES;	Product Name:	Computerized Flat Knitting Machine;
Payment Terms:	L/C,D/A,D/P,T/T;	Production Capacity:	100%;
Packaging Detail:	standard wooden cases 4 sets per 20 GP container standard wooden cases 8 sets per 40 GP container;	Place of Origin:	Jiangsu China;
Weight:	830kg;	Color:	Blue;
System:	Double System Computerized Flat Knitting Machine;	Warranty:	1 YEAR;
Condition:	New;	Function:	Knititing Sweaters;
Gauge:	3.5.7G 5/6/7/8/9/10/12/14/16G;	After-sales Service Provided:	Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;
Brand Name:	GANGJI;	Knitting Method:	DOUBLE;
Knitting Style:	FLAT;	Supply Ability:	1000 Set/Sets per Month;
Application:	Fabric Knitting;	Port:	shanghai,ningbo;
Dimension(LWH):	2.91.051.85m;	Type:	jacquard;

HAVE YOU MEET GSJX

WALK WITH KNITTER

PROFESSIONAL OF KNITTING MACHINERY

With 25 years of product upgrade,and 25 years of service improvement,

Guosheng is now at the very forefront of world's smart manufacturer of knitting machines.

It undertakes the task of improving the performance of the whole products,

And join hands with the knitter to constantly make significant contributions to the standardization

of the world's knitting machine.

REASONS TO BUY IT

You will get free machine operation training & pattern-designing training as soon as you buy our machine now.

Mature and attentive service is what Guosheng hold as the principle of service,machine operation training for free and pattern-designing training for free to free customers from all the worries.

One year warranty period

The warranty period is one year except for the wearing parts (knitting needle, brush, roller, mouth, seat).
Buy machines in bulk at competitive prices.What's more, you can get our technicians' free door-to-door service if you buy three full containers

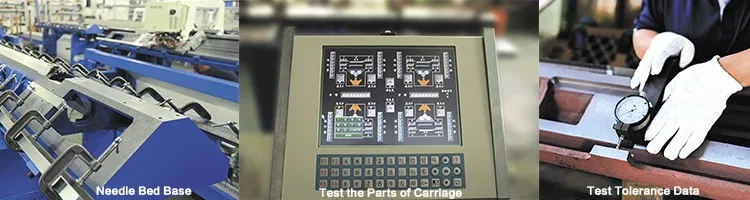

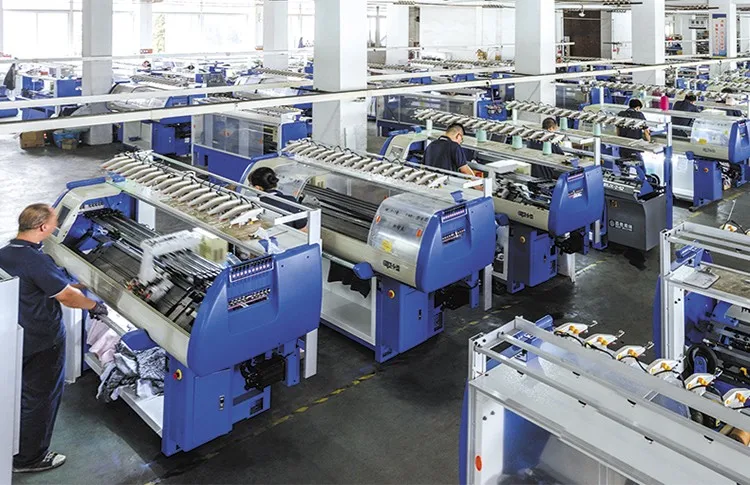

Guosheng has stable inventory and efficient production capacity

It is our responsibility to give you a satisfactory purchasing experience.We pursue quantity and quality.Guosheng has a complete inventory system, which can meet the needs of every customer, and sets the delivery period at about 10 days.We also accept private orders,and if you require customization, our assembly line can effectively improve work efficiency and greatly shorten the delivery time.

It's an efficient, high-quality machine you can't miss it

1)The fast cornering of carriage.Superior servo drive assembly makes the fast cornering of carriage came true,improved the efficiency of knitting more than 10%.
2)Well-designed angle of needle bed tooth mouth to ensure rapid antonomous falling of fabrics
3)Duplex table technique of thick needle,fulfilling double distance and expanding table scope significantly.

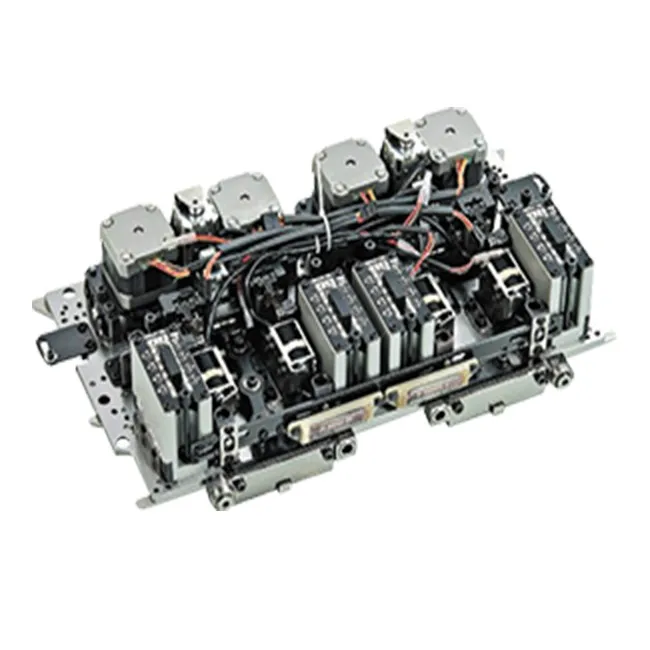

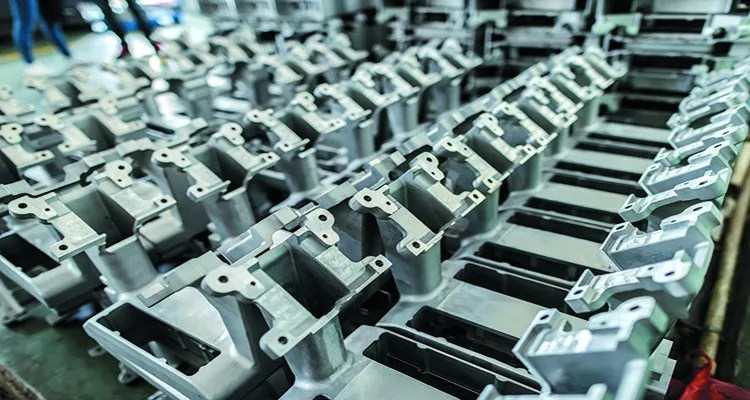

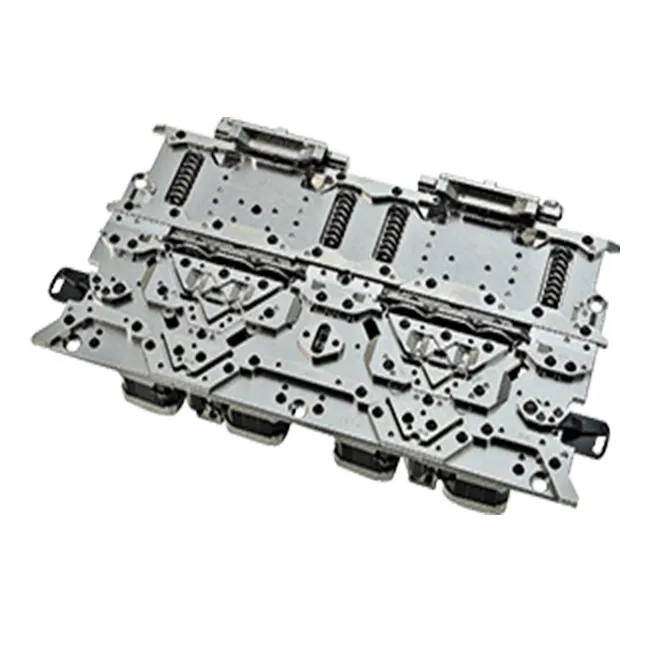

4)Triangle baseboard,adopting precise forging materials with the most superior quality,some are produced by Taiwan manufacturer according to our brand mew design program with optimized degree of surface pressure,making surface of fabrics more even,density more proper and knitting more smooth.

Product Description

Product Application

This is computerized flat knitting machine with single carriage double system. This series is economictype.flat knitting machine applies digital technology to achieve tranfers,tuck,eyelet stitch,jacquard,apparent shape,hidden shape and other regular pattern knitting functions.
Flat knitting machine can knit basic stitch like plain stitch, rib fabric, links and links, interlock stitch, etc. irregular multicolor jacquard, twit flowers weft organization, aran, cord weave, racked stitch, cable, etc.flat knitting machine is suitable to use synthetic, wool, acrylic, mixed fiber, yarn material etc to knit readymade cardigan, hat, scarf and accessories of cloth.

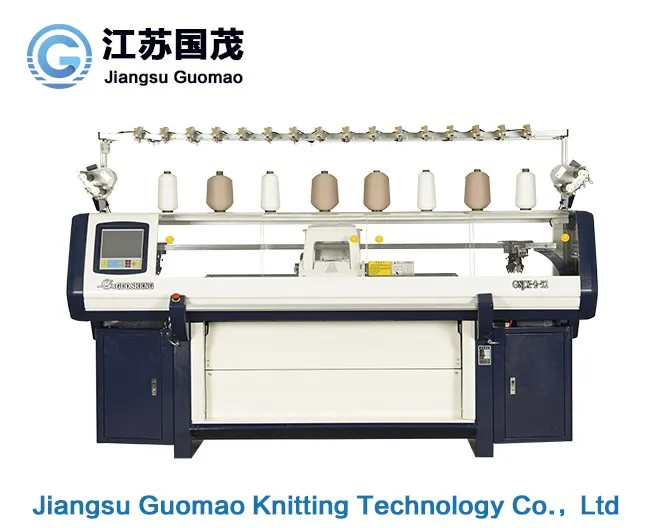

SPECIFICATIONS FOR FLAT KNITTING MACHINE
Model	GSJX-2-52
Gauge	3G,3.5G,357G,5G,6G,7G,8G,9G,10G,12G,13G,14G,15G
Knitting Machine	Double System,Single Carriage
Knitting Width	44inch,52inch,60inch,80inch,100inch
Knitting Speed	Max 1.2m/s
Knitting Function	Tranfer,Tuck,Miss,Jacquard,Intarsia,Hide or Apparent Shaping
Stitch Density	Stitch system controlled by stepping motor,32 section stitch selectable,adjustable scope supported by subdivision technology:0-650.
Racking	Controlled by AC servo motor,racking within 2 inches and with fine adjusting function.

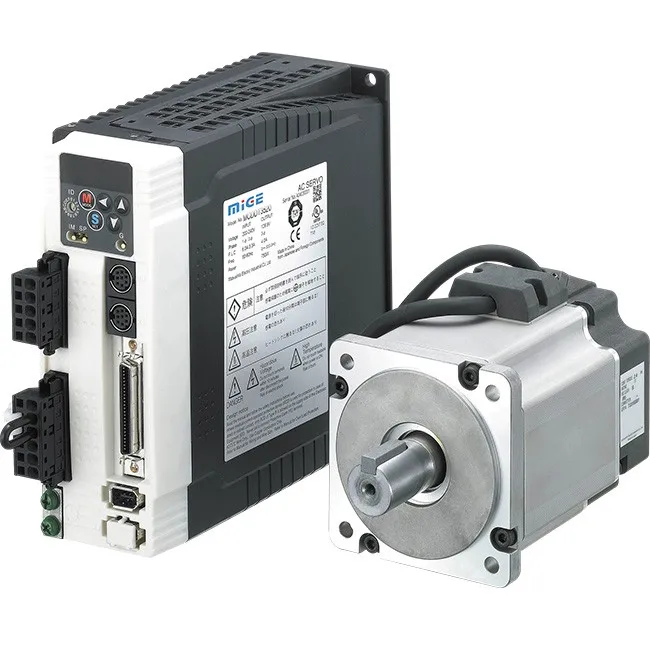

Drive System	Synchronous belt drive,AC servo system.
Needle Selection	Controlled by computer,electric magnet needle choose system with high efficiency.
Yarn Carrier	2*8 yarn carriers on each side of 4 guide rails,shiftable on any needle position.
Take Down Roller	Programmed instruction controlled by stepping motor,32 section levels selection adjustable area:0-100.
Protection System	The machine will automatically alarm if yarn breaking,float yarn,rewind,end of knitting,fail of racking,needle breakage and error programming occur ect.
Control System	1.Adopt LCD screen,input device:USB,system memory 256MB,a great amount of design files can be stored. 2.Monitoring menu,each knid of operating parameter,can be shown,and they can be adjusted at any time when the machine is running. 3.Design system is visual and easy to understand and upgrad. 4.Multi language version ,there are chinese,english etc.
Power	220v,single-phase,have memorizing function at the power-off moment.

Certifications

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

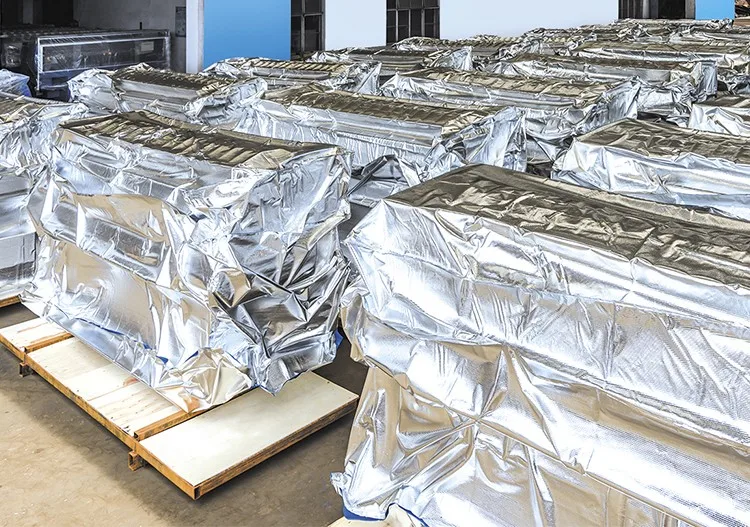

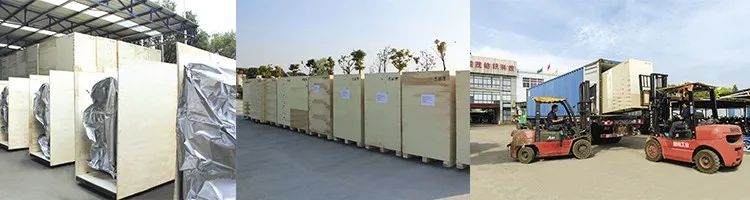

Packing & Delivery

Every machine you buy, we take care of every product like a child

To make sure the product you buy is safe during transportation,we use vacuum package to prevent moisture and rust.In addition,we provide complete packaging methods according to your requirement,and provide convenience for loading,uploading and storage as well as save time for checking and delivery.Make sure you can receive proper product at a proper time.
