High stability kinetic energy conversion centrifugal blower

Product details
Material:Cast iron , steel;Supply Ability:10000 Piece/Pieces per Year;
After-sales Service Provided:Field installation, commissioning and training;Payment Terms:L/C,D/A,D/P,T/T;
Voltage:345-400V/6000V;MOQ:1set;
Air Volume:Customization;Port:Qingdao Weihai;
Packaging Detail:Seaworthy Wooden Case;Color:Blue charcoal grey;
Power Type:Customization;Warranty:1 YEAR;
Blower:Centrifugal Blower;Type:Radial Fan;
Shipping:Ocean Forwarding;

High stability kinetic energy conversion centrifugal blower

Product Description



BlowerCentrifugal Blower
Flow rate80 ~ 800m3/min
Boost range49 ~ 147kPa
PowerHigh  Presure
Power sourceElectric Blower
Power TypeCustomization
MaterialCast iron , steel
Voltage345-400V/6000V
ShippingOcean Forwarding
Air VolumeCustomization
ColorBlue charcoal grey
Product packagingCustomized according to customer opinions
Product gross weightEach blower has a different weight
Supply CapacityProduction of 10,000 roots blower per year

Product features:
1. The impeller is designed by three-way flow theory, and the performance of the blower is predicted by flow analysis technology, making the variable efficiency as high as 82%.
2. The fan adopts the axial inlet guide vane and diffuser regulating device, and the flow regulation range is 45% ~ 110% of the rated flow, so that it can operate with high efficiency under non-rated conditions.
3. Adopt a modular overall structure, the blower body is assembled on the shell of the gear growth box, and the lubricating oil system, motor and gear growth box are compact arranged on the common base, which doubles as the oil tank.
4, the rotor after strict dynamic balance, small vibration, high reliability, low overall noise.Compared with the multi-stage centrifugal blower with the same flow and pressure, it has small energy consumption, light weight and small occupation area.
5. The fan structure is advanced and reasonable, the wearing parts are few, and the installation, operation and maintenance are convenient.The machine's bearing vibration, temperature, anti-surge control, start interlock protection, fault alarm, lubrication system oil pressure, oil temperature control are controlled by programmable logic controller, so that the machine operation can be real-time monitoring.

Main USES
It can be widely used in sewage treatment, metallurgy, circulating fluidized bed boiler fluidization of power station, tail gas desulfurization, pharmacy, gas pressurization and so on.

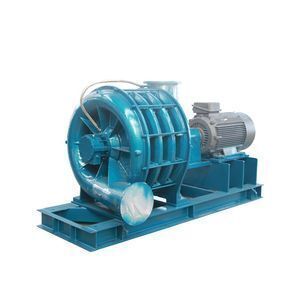

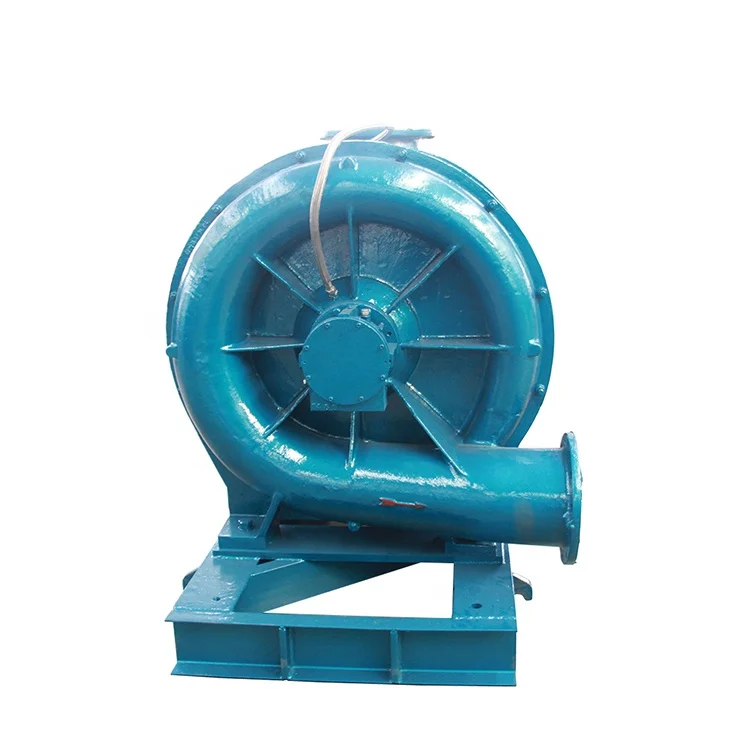

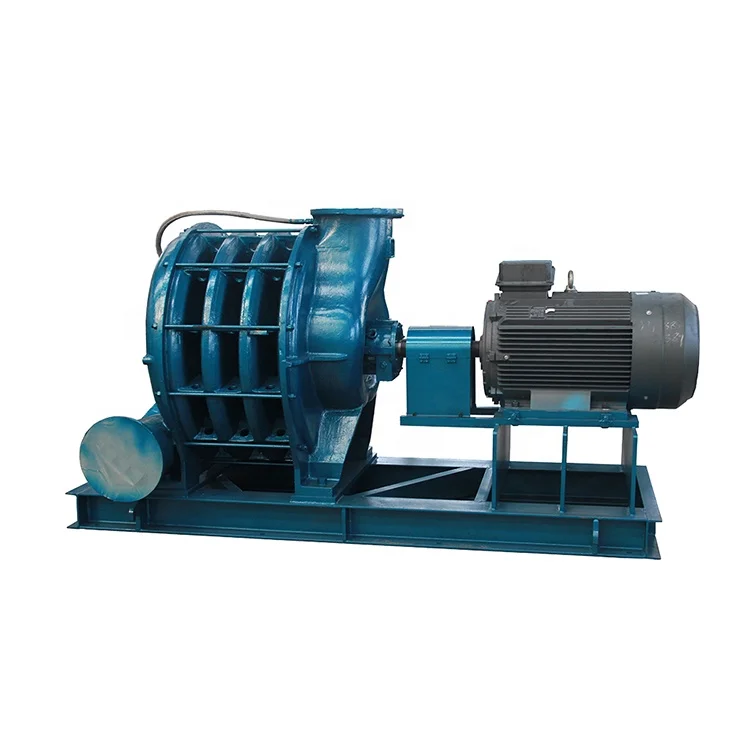

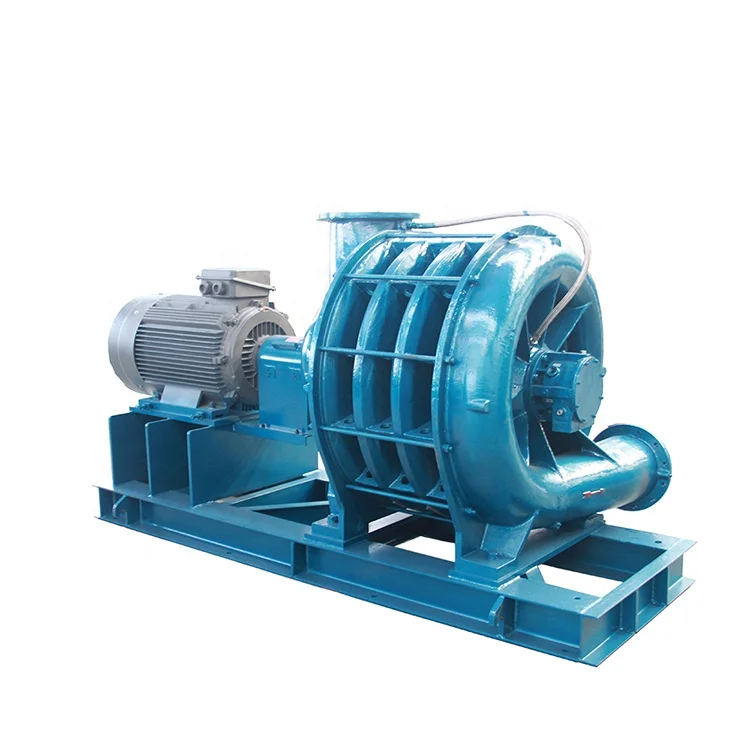

Product Display
