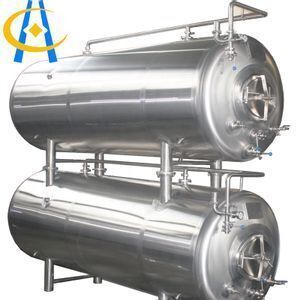

Stainless steel semi-autimatic horizontal brite beer tank bright beer tanks or storage tank

Click here to contact

Product details

Dimension(LWH):	Depends;	Port:	shanghai;
Color:	Silvery Grey;	Supply Ability:	10 Set/Sets per Month Stainless steel semi-autimatic horizontal brite beer tank brigh;
Certification:	CE ISO;	MOQ:	1 Set;
Thickness:	3mm;	Function:	Storing Beer;
Warranty:	2 years,12 Months;	Weight:	100KG-5000KG;
Voltage:	380V;	Brand Name:	HENGCHENG;
Surface Treatment:	Matt Polished;	Applicable Industries:	Food & Beverage Shops;
Packaging Detail:	packing for Stainless steel semi-autimatic horizontal brite beer tank bright beer tanks or storage tank Bulk Cargo: Standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment's surface. Container Cargo: The equipment will be bound firmly and won't easily swing to the side, up or down.;	Application:	Beer;
Product Name:	bright beer tanks;	After-sales Service Provided:	Field maintenance and repair service;
Condition:	New;	Payment Terms:	L/C,T/T,Western Union;
Place of Origin:	Shanghai China;	Power(W):	0.75KW;
Processing:	Storage Tank;	Type:	Horizontal;
Material:	SUS304/316L;	Processing Types:	alcohol;

Product Description

Bright beer tanks

These tanks are used for the storage of the beer.

Depending on their application, the beer serving tanks can be glycol jacketed or

can be located in a cold room since brewpubs serving is often done by pumping or

pressurizing the beer toward the serving location.

Product Name	Stainless steel semi-autimatic horizontal brite beer tank bright beer tanks or storage tank
Function:	Bright beer tanks are used to store beer

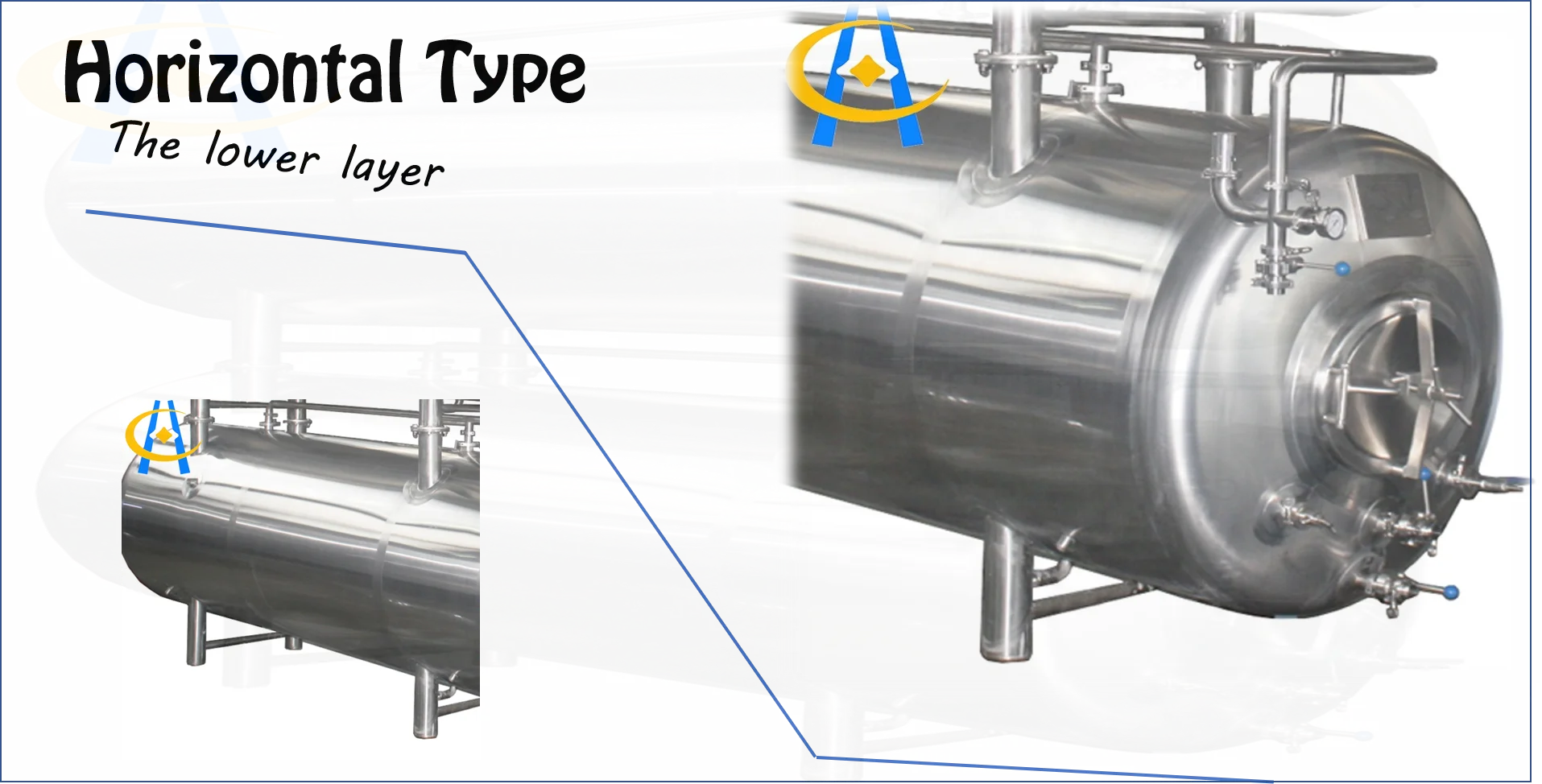

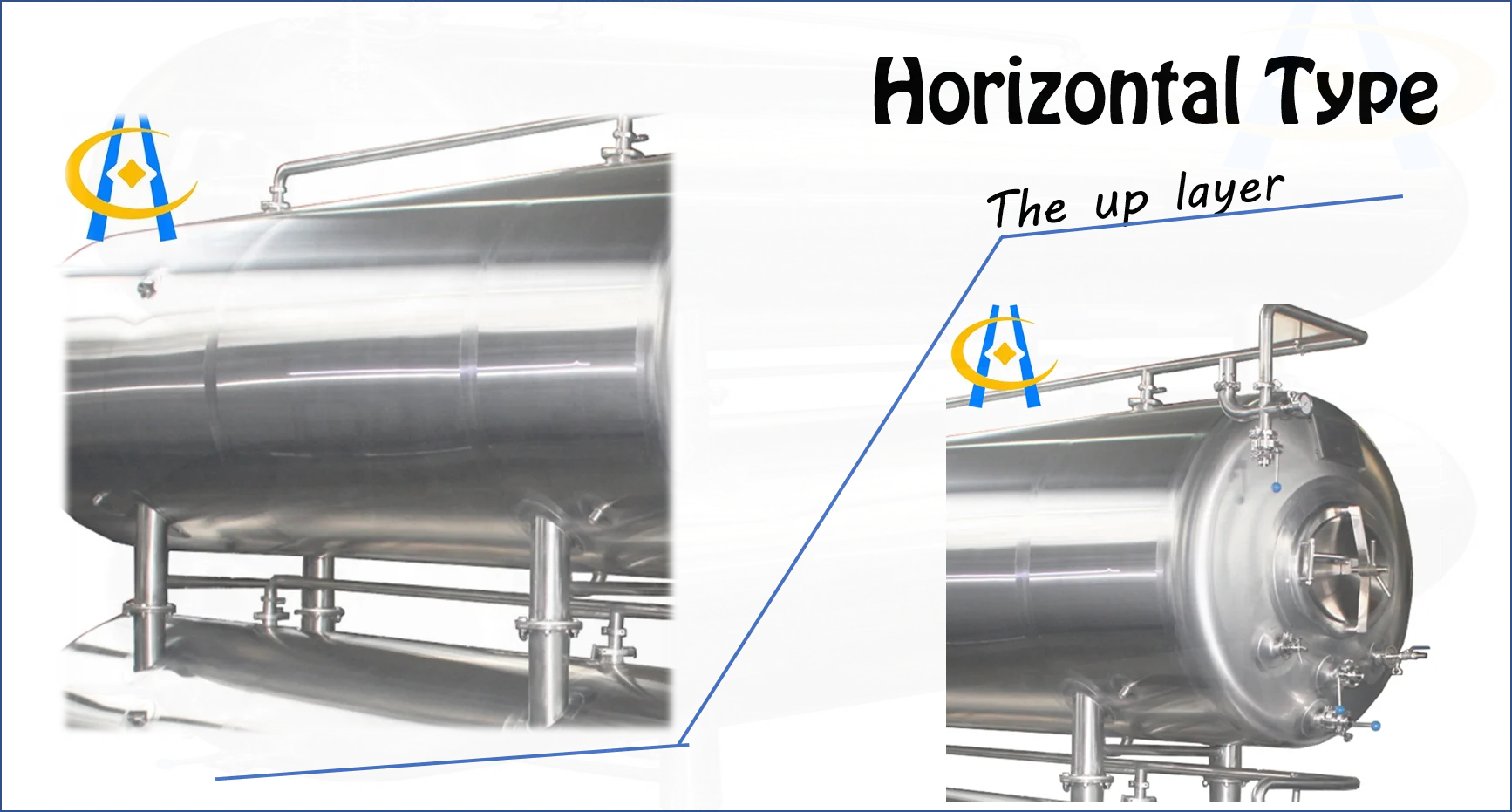

Type:	Horizontal stacking
Capacity:	gross capacity 500L effective capacity 625L
Inner shell:	304 stainless steel 3mm thickness
Outer shell:	304 stainless steel 2mm thickness
Surface Treatment	Polishing 0.4-0.6μm. No dead ends
Insulation:	80mm polyurethane
Cooling jacket:	Dimple plate jacket 304 stainless steel, thickness 2mm
Test	With strict water / air pressure test,air pressure test for 48 hours before delivery
Type of head:	Dished head
Manway:	Shadowless side Manway
Accessories:	Sample Valve x1; Pressure relief/vacuum valve x1; Temp. sensor / thermometer x1; Carbonation Stone x1; Bottom outlet with butterfly valve x1; Spraying Ball with down tube x1; Stainless pipe legs with adjustable footpads x4;
