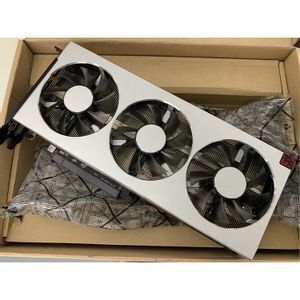

MSI XFX AMD Radeon VII 16G Gaming Graphics Card with 16GB HBM2 4096-bit Memory Support CrossFire Technology

Click here to contact

Product details

Chipset Manufacturer:	AMD;	MEMORY BUS:	4096-bit HBM2;
RECOMMENDED PSU:	650 W;	Core Clock(Mhz):	1710 Mhz;
Products Status:	USED,refurbished,OPEN-BOX;	Brand Name:	MSI;
GRAPHICS PROCESSING UNIT:	Radeon VII;	Single package size:	45X30X13 cm;
Certification:	FCC,ce,RECH,GS,UL,CSA,ROHS,weee,sgs,SIG（BluetoothSIG),BIS（ISI）;	Item Condition:	PCI Express 3.0 X16;
Selling Units:	Single item;	Video Memory Speed:	1.2ns;
Memory Clock(Mhz):	8008MHz;	CORES:	3840 Units (60 CU);
Application:	workstation,Desktop;	Single gross weight:	5.0 KG;
MODEL NAME:	Radeon VII 16G;	Package Preview:	;
Interface Type:	PCI EXPRESS;	Packaging Detail:	Standard Packaging;
DirectX:	DirectX 12;	Place of Origin:	Guangdong China;
Cooler Type:	Fan;	Outputs:	HDMI;
Chip Process:	16 nanometers;	Output Interface Type:	Support HDMI Input,DP,HDMI;
Video Memory Type:	HBM2;	Memory Interface:	4096bit;
POWER CONSUMPTION:	300 W;	POWER CONNECTORS:	8-pin x 2;
CORE CLOCKS:	Boost: up to 1750 MHz Base: up to 1400 MHz;	HDCP SUPPORT:	2.2;
CARD DIMENSION(MM):	267 x 121 x 40 mm;

MSI XFX AMD Radeon VII 16G Gaming Graphics Card with 16GB HBM2 4096-bit Memory Support CrossFire Technology

Core/Memory

Boost Clock / Base Clock / Memory Speed
up to 1750 MHz / up to 1400 MHz / 2.0 Gbps
16GB HBM2
DisplayPort x 3 / HDMI x 1

Afterburner Overclocking Utility

The World's First 7nm Gaming GPU

Radeon^™ VII graphics deliver forward-looking technology to advanced, next-generation games with ultra-high quality visuals.

Radeon™ ReLive

Radeon™ FreeSync Technology

MODEL NAME	Radeon™ VII 16G
GRAPHICS PROCESSING UNIT	Radeon™ VII
INTERFACE	PCI Express x16
CORES	3840 Units (60 CU)
CORE CLOCKS	Boost: up to 1750 MHz Base: up to 1400 MHz
MEMORY SPEED	2.0 Gbps
MEMORY	16GB HBM2
MEMORY BUS	4096-bit HBM2
OUTPUT	DisplayPort x 3 (v1.4) / HDMI 2.0b x 1
HDCP SUPPORT	2.2
POWER CONSUMPTION	300 W
POWER CONNECTORS	8-pin x 2
RECOMMENDED PSU	650 W
CARD DIMENSION(MM)	267 x 121 x 40 mm
WEIGHT (CARD / PACKAGE)	1280 g / 1772 g
DIRECTX VERSION SUPPORT	12
OPENGL VERSION SUPPORT	4.5
MULTI-GPU TECHNOLOGY	Y, CrossFire™ Technology (DirectX® 12 and Vulkan® Optimized)
MAXIMUM DISPLAYS	4
VR READY	Y
DIGITAL MAXIMUM RESOLUTION	7680x4320
