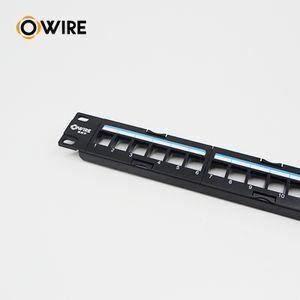

EXW CAT5E CAT6 Patch Panel from Owire Factory
- 2.00 piece
| Number of Conductors: | 8; | Insulation Material: | PE; |
| IDC life: | 200 times min; | Jacket: | PVC; |
| Label Color Code: | T568A/B; | Place of Origin: | Guangdong China; |
| Port: | shenzhen; | Brand Name: | Apkte/Owire; |
| PCB: | FR-4/1.6MM UL-94Vo; | Type: | rj45 network patch panels; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Model Number: | Patch panel; |
| Packaging Detail: | Standard packing,carton, or as customers' request; | Conductor Material: | Copper; |
| Supply Ability: | 8000000.0 Piece/Pieces per Month; | Application: | communication; |
EXW CAT5E CAT6 Patch Panel from Owire Factory
High quality
Advanced equipments for both producing and testing
Pass the CEcertificate,ISO9001,etc
1..Front Panel :1.5mm thickness Matallic Panel(SPCC).
Painting on surface
2.Plastic Frame: Fireproof PC/ABS UL-94Vo
3.Rj45 jack housing:Fireproof PBT UL-94Vo
4.Rj45 Jack insert :Housing-Fire proof PBT UL-94Vo
Contact- 8P8C Phosper bronze with 3 μ,, gold plated .
5.PCB : FR-4/1.6MM UL-94Vo
6.IDC:Body- Fireproof PC/ABS UL-94Vo
Pin:- Phosphor bronze and Tined
7.Label Color Code: T568A/B
8.IDC Terminal: for 22-26 AWG cable
9. High reliability and superior performance
10.RJ45 Jack life: 750 times Min
11.IDC life : 200 times min
Performance:
Next: 46.5dB
Attenuation: 0.17dB
Return loss: 28.4dB
Maximum rated electric current: 1.5A
Installation size:
Height: 1.75 inches
Width: 19.00 inches

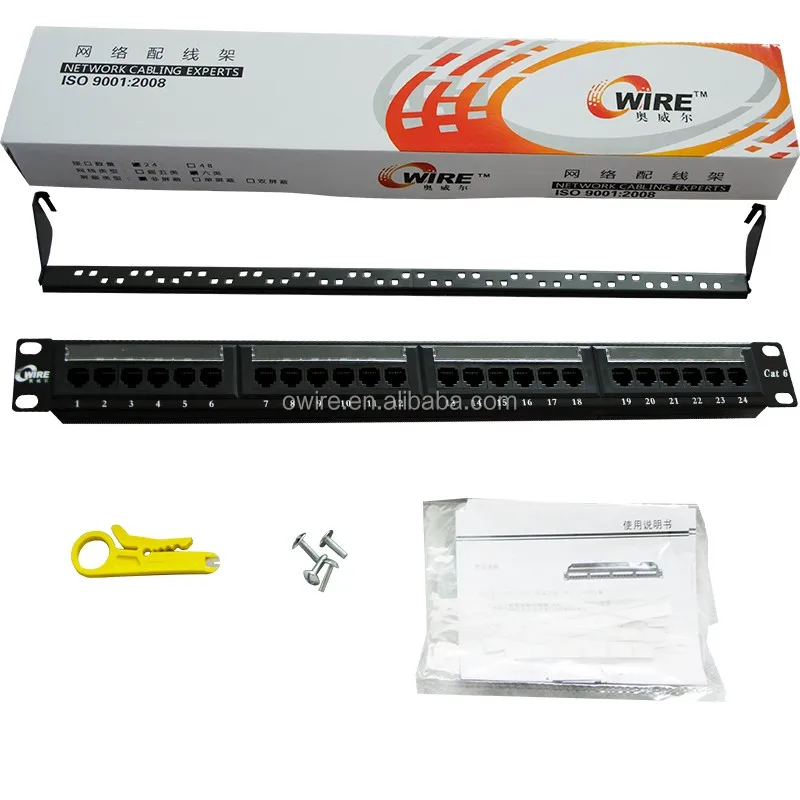

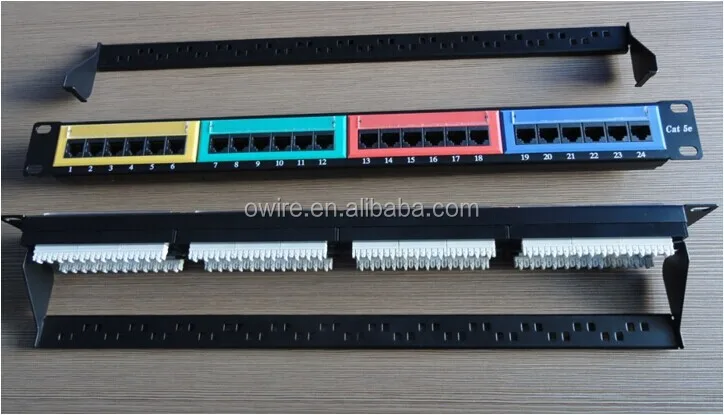

The panel is attached with a rear cable management arm, convenient for the cable
management of users.
