China Toothpick Factory Making Bbq Stick Bamboo Skewer Machine bamboo sticks making machine For Sale

Supplier: Shenzhen Fast Dragon Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Alin Li
Price: $1200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 Year,1 YEAR;	Warranty of core components:	1 YEAR;
Certification:	CE;	After-sales Service Provided:	Online support;
Dimension(LWH):	10206901050mm;	Marketing Type:	Hot Product 2019;
Condition:	New;	Core Components:	MOTOR;
Machinery Test Report:	Provided;	Place of Origin:	China;
Video outgoing-inspection:	Provided;	Voltage:	220v;
Weight:	300kg;	Single gross weight:	450.0 KG;
Single package size:	100X65X99 cm;	After Warranty Service:	Online support;
Local Service Location:	none;	Showroom Location:	none;
Applicable Industries:	Manufacturing Plant,Food & Beverage Factory;	Selling Units:	Single item;

Product Description

Introduction:

The above 10 sets are a production line, producing two pointed toothpicks, with an output of 800,000 in 8 hours, about 100 kg.

Name	Motor (kw)	Weight (kg)	Dimension (mm)	Model
Sawing machine	2.2	65	900X510X930	FD-101
Bamboo dissection machine	3.0	630	3000X850X1200	FD-102
fix thick and definitely wide flaker	3.7	450	1460X660X1000	FD-103
Bamboo filament shaping machine	9.1	450	1050X650X990	FD-104
Bamboo filament set-size machine	0 .75	85	1500X650X990	FD-105
Toothpick stick set size machine	2.0	210	900X600X800	FD-108
Polishing machine	1.5	120	1500X150X100	FD-109
Ordering machine	0.55	65	530X1000X800	FD-110
Toothpick sharpen machine	2.75	260	900X570X1010	FD-111
Multi-sharpen machine	0.55	65	370X330X720	FD-107

Process flow :
Selecting the raw bamboo--sawing & cutting--splitting--slicing--drawbench--Chemical Treatment (bleachning and sterilizing)--Rinsing--Drying--Cutting into certain length--Polishing--sharpening and engraving--Packing

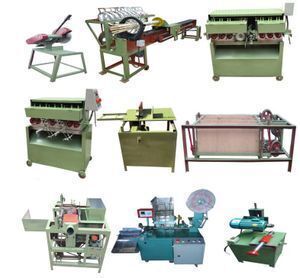

Detail Images
