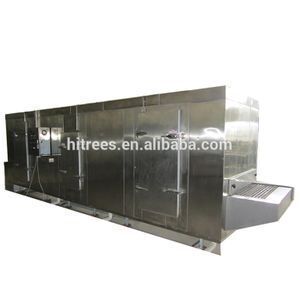

Tunnel IQF Freezer TF200 200kg/h

Supplier: Tianjin Hitrees Machinery Equipment Co., Ltd.
Region: Tianjin, China
Contact: Mr Leo Wei
Price: $9900.00 /set
Min. Order: 1 set

Click here to contact

Product details

Evaporating Area:	360 square meters;	Dimension(LWH):	10200mm1800mm2300mm;
Refrigeration Consumption:	30KW;	After-sales Service Provided:	Engineers available to service machinery overseas;
Packaging Detail:	Sea worthy packing suitable for containers transportation;	Delivery Detail:	45 working days after down payment;
Condition:	New;	Place of Origin:	Tianjin China (Mainland);
Weight:	Approx. 5 tons;	Brand Name:	HITREES;
Model Number:	TF200;	Warranty:	12 Months;
Payment Terms:	L/C,T/T,Western Union;	Power(W):	5.15KW;
Voltage:	Customized;	Belt Width:	1300mm;
Port:	Tianjin;	Belt Material:	SUS304 Stainless Steel;
Certification:	CE;	Supply Ability:	10 Set/Sets per Month;
Type:	Tunnel Freezer;

Product Description

Product Application

Tunnel IQF freezers are mostly used for flour food freezing, fruits & vegetables freezing, meat freezing, seafood freezing and prepared food freezing.

NO.	ITEM	CONTENT
1	Equipment Type	Tunnel Freezer TF200
2	Belt Type	Stainless steel material
3	Output Capacity	200kg/h
4	Inlet Temperature	+15 degree Celsius
5	Outlet Core Temperature	-18 degree Celsius
6	Inner Air Temperature	-38±3 degree Celsius
7	Overall Dimension	10200mm1800mm2300mm LWH
8	Belt Width	1300mm
9	Tunnel Passable Height	100mm
10	Inlet Device Length	600mm
11	Outlet Device Length	600mm
12	Inlet & Outlet Device Height	850mm
13	Retention Time	Adjustable
14	Defrosting Method & Interval	By Water every 12 hours
15	Refrigeration Consumption	30 KW (+40 degree C/-40 degree C)
16	Evaporating Area	360 square meters
17	Compressor Model	BITZER 6GE-34Y * 2 sets
18	Refrigeration Capacity	30.26 KW (+40 degree C/-40 degree C)
19	Refrigerant	R404a
20	Condensing Type	Air cooled
21	Installed Power for tunnel freezer	5.15KW
22	Installed Power for Compressor System	30KW

Main Structure

(1) Stainless steel conveyor belt;
(2) Sandwich PUF panels 150mm thick, laminated by stainless steel sheet both sides; floor panels are equipped;
(3) Doors are equipped with frame heating device;
(4) Aluminum evaporators, different fin pitches;
(5) Axial fans: stainless steel air box, aluminum blades;
(6) Full welded stainless steel water discharging plate is installed on top of floor panels. It will bring defrosting water out of cabinet through stainless steel draining pipes;
(7) The inlet device, outlet device and all structure parts are made of stainless steel;
(8) Control panel is made of stainless steel;
(9) Schneider or Siemens electric components;
(10)SEW speed reducer.
