3mm adjustable compression spring for hinge
- 0.02 >=500 pieces
| Application: | Hardware; | Brand Name: | Hengsheng; |
| Payment Terms: | T/T,Western Union; | OEM: | OEM Accepted; |
| Packaging Detail: | PE Bags+Carton, or can be customized packing depends on your order qty and requirements.; | Package Preview: | ; |
| Usage: | Industrial; | Type: | Hardware Parts; |
| Material: | STEEL,Steel; | Port: | Fuzhou, China; |
| Product name: | 3mm adjustable compression spring for hinge; | Place of Origin: | Fujian China; |
| Certificate: | ISO9001/ROHS/SGS/IATF16949; | Surface treatment: | Customers' Request; |
| Style: | Coil; | Size: | Customer's Size; |
| MOQ: | 500 Pcs; | Supply Ability: | 100000 Piece/Pieces per Month; |
| Quality Guarantee: | 1 Year; |

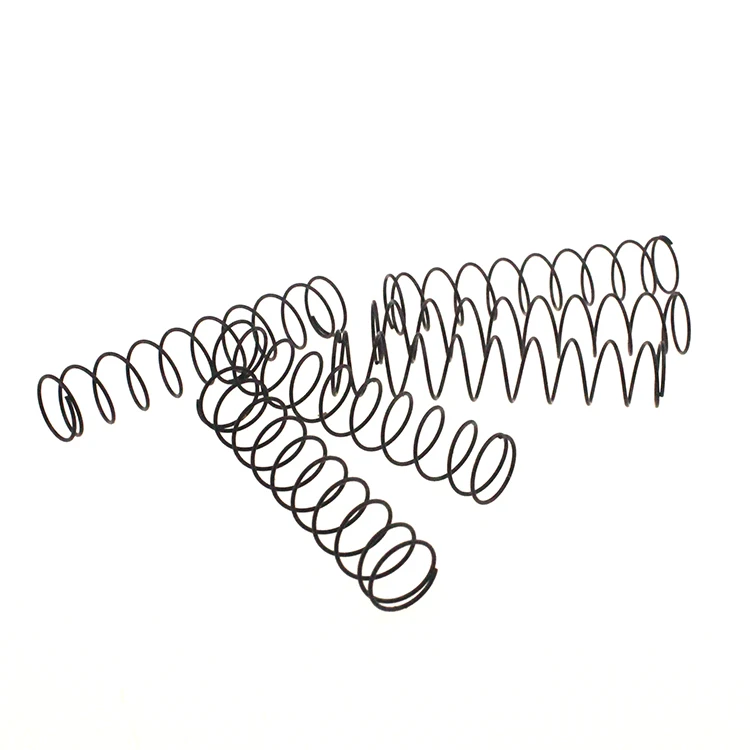

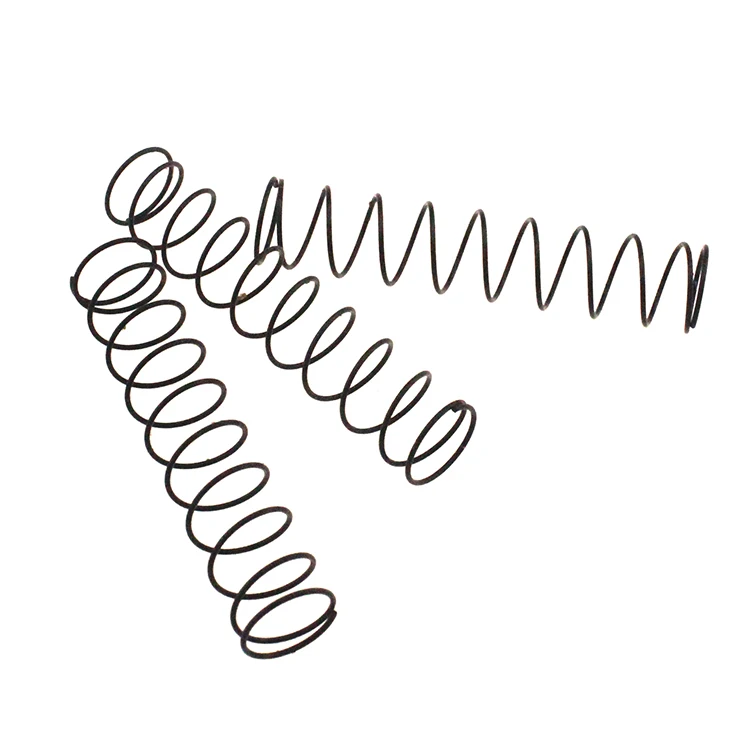

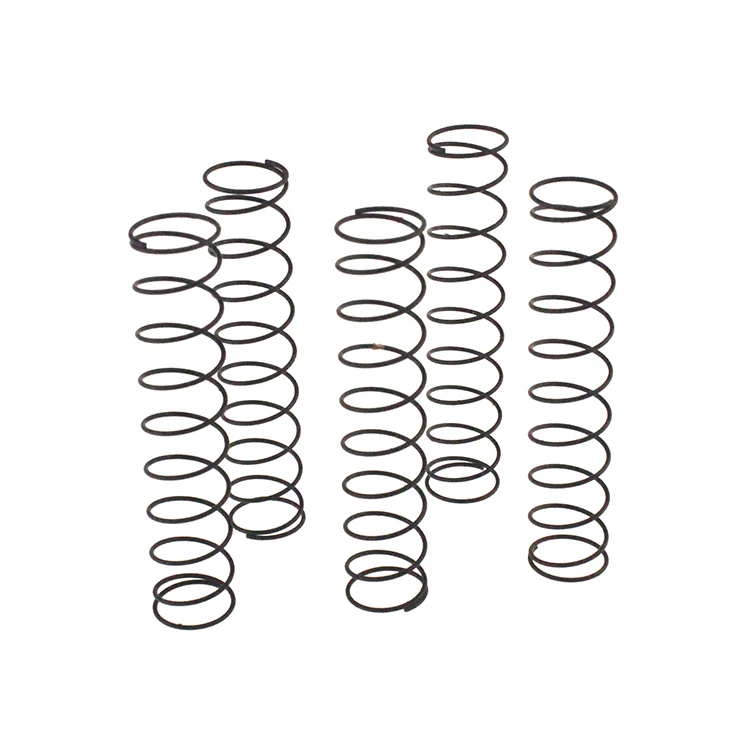

Product Name: 3mm adjustable compression spring for hinge
What’s compression spring?
The compression spring is the most widely used of all spring types.Because of its design and principle easy to grasp,manufacturing control is also the most simple.There is a certain gap between the rings of the compression spring.When subjected to an external load,the spring shrinks and deforms,and the deformation energy can be stored.
| Model | Compression springs | ||||||
| Material Type | SS302(AISI302)/ SS304(AISI304)/ SS316(AISI316)/SS301(AISI301)/SS631/65Mn(AISI1066)/ 60Si2Mn(HD2600)/55CrSiA(HD1550)/Music wire/C17200/C64200, Etc | ||||||
| Wire diameter | 0.1~20 mm | ||||||
| I.D | >=0.4 mm | ||||||
| O.D | >=0.6 mm | ||||||
| Free length | >=0.5 mm | ||||||
| Total Coils | >=3 | ||||||
| Active coils | >=1 | ||||||

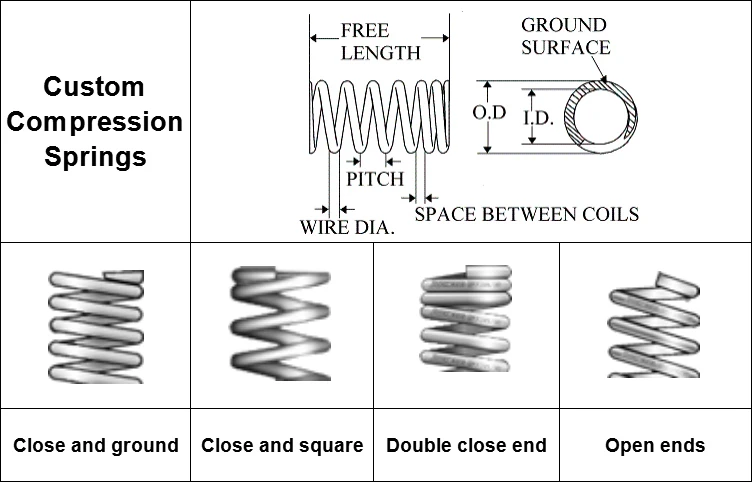

| Ends | Close and ground, close and square, double close end, open ends | ||||||
| Direction | Right or left | ||||||
| Tolerance | >=0.05 mm | ||||||
| Packaging | PE bags, Cartons, Pallets | ||||||
| Warranty period | One year | ||||||
| Application | Electronic producats, Children toys, Baby carriage, Bicycle, Kitchen appliances, Cameras, Printers, Office equipment, Precision equipment and various kinds of vehicles | ||||||
| Finish | Zinc plating, Nickel plating, Anodic oxidation,Black oxided,Electrophoresis,Power coating, Gold plating, Silver plating, Tin plating, Paint,Chorme, Phosphate,Dacromet,Oil coating, Copper plating, Sand blasting, Passivation, Polishing,Etc | ||||||
| Notes | 1. Please offer us your spring spec,we can make spring based on your requirements. | ||||||
| 2. Discount offered if with large order quantity. | |||||||

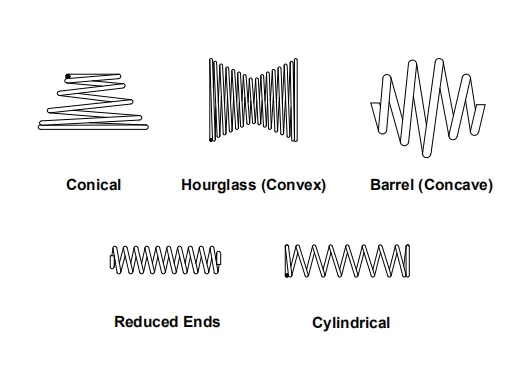

Type of compression spring and ends
There are many different types of compression springs for you to choose from, such as conical compression spring, hourglass(convex) compression spring, barrel(concave) compression spring, reduced ends compression spring, cylindrical compression spring, and so on.
|
