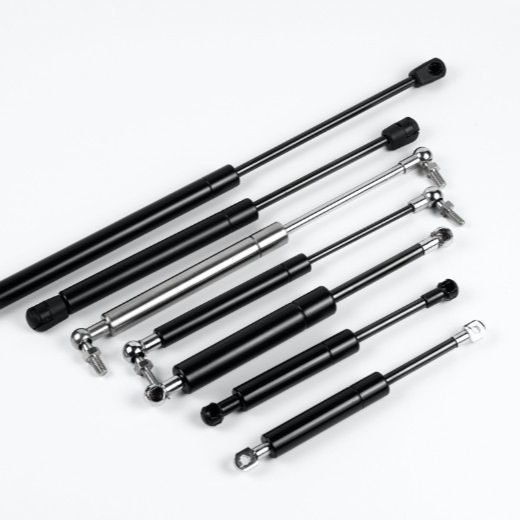

JP Adjustable 1000n Gas Strut For Murphy Bed Heavy Duty Gas Strut Products from ShenZhen JP Industry Co., LTD

Product Details

usage:	furniture, furniture	Rod material:	steel or stainless steel
model:	compressed gas spring	Tube:	steel or stainless steel
product name:	JP Adjustable 1000n Gas Strut For Murphy Bed Heavy Duty Gas Strut	Material:	steel
Package preview:		style:	cylinder
place of origin; place of origin:	Guangdong, China	Supply capacity:	5,000,000 pieces per year
Packaging Details:	1pc/polybag, 50pcs/carton.	Pipe surface treatment:	black painting
Key words:	compressed gas spring	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Processing:	acceptable	Bar surface treatment:	QPQ or chrome
sample:	usable	brand:	JP
port:	Shenzhen Port, Shanghai Port	Gas type:	pure nitrogen

Compressed air springs, also known as gas pressure springs, gas dampers or gas pressure dampers, will meet your individual requirements for opening, closing, tilting and damping flaps, tables, seats or loungers thanks to our decades of experience requirements. They are responsible for the controlled sequence of movements.

JP® gas springs offer the following advantages:

1. ISO 9001, RoHS, REACH certification.

2. 50,000-180,000 lifetimes.

3.German standard production line.

4. maleMaintenance free.

5. Free samples.

Standard product range

∅ Piston rod (mm)	∅ Tube (mm)	Stroke(mm)	Force* F1 (N)
6	15	30-200	40-400
8	18	50-400	50-700
10	twenty two	50-400	80-1,000
12	25	100-500	400-2,000
14	28	100-500	500-3,000

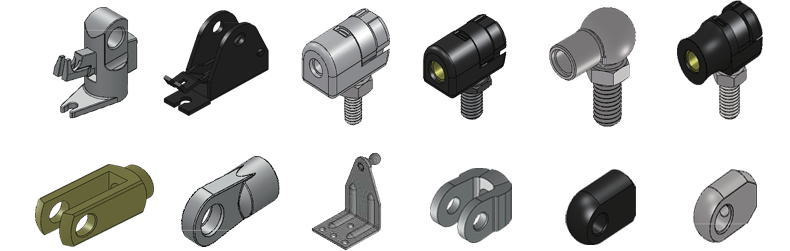

End fittings

JP® Gas Spring Connectors are manufactured from steel, stainless steel, aluminum and plastic materials and are available in a variety of finish options.

Product Details

tube

- Treated with a highly corrosion-resistant coating.

- Passed 500 hours salt spray test.

- Eco-friendly painting.

piston rod

- Excellent rod seal durability.

-Induction hardening.
- Black nitrided surface (QPQ) or special chromed rods.

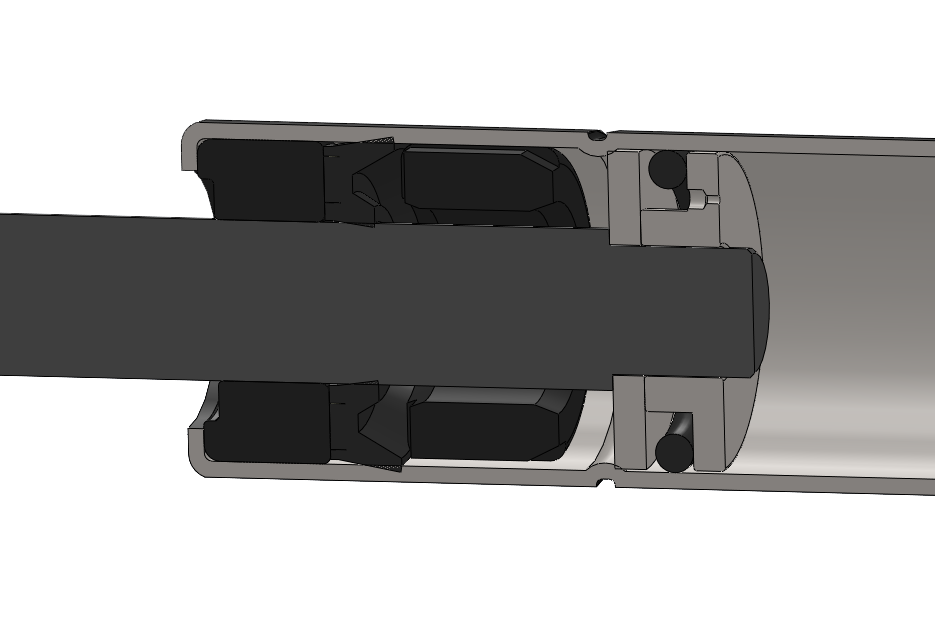

piston unit

-Ultra-precision CNC machining.

- Lubricated seals.
- Temperature range -30 to +80°C.

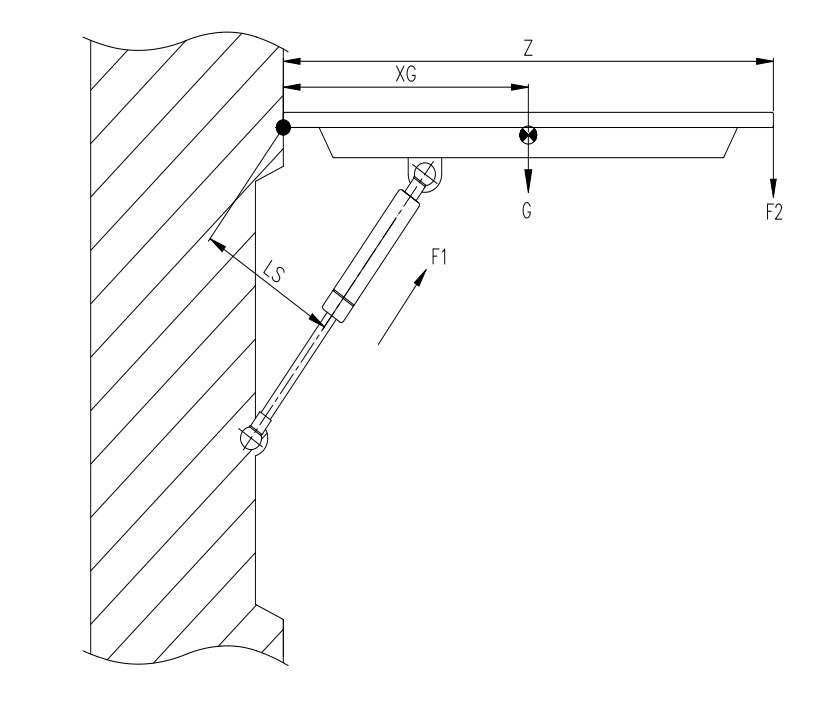

Force Calculation Guideelectronic

F1 = (G x XG) / (LS x A)

Estimated Gas Spring Force F1 (N) Z = Lid Length from Pivot Point (mm) XG = Center of Gravity (mm) G = Lid Weight in Newtons (kg x 10) LS = Gas Spring Force Radius (mm) A = number of gas springs

Spring characteristics of gas springs:

As can be seen from the figure, the spring characteristic represents the change in force of the gas spring during its travel, from the extended state to the inserted state and back again.

Here, the spring characteristic value represents the force ratio F2/F1. Force F1 is the most important criterion besides size when designing gas springs. Determine the value of the spring force by measuring force F1 5 mm before the end of the stretching exercise. A force FR caused by friction is generated between the lines of force in the insertion and extension directions.
