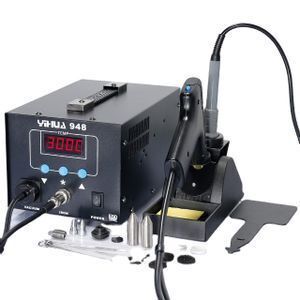

YIHUA 948 upgrade version ESD Safe Desoldering Vacuum Suction Gun Station

Product details
Model Number:948;Place of Origin:Guangdong China;
G.W:10 KG/CTN;Current:6A;
Temperature Control Accuracy:stable;Usage:Desoldering and soldering;
Brand Name:YIHUA;Port:Huangpu;
Rated Duty Cycle:50-100%;Dimensions:32.5*32*20.5 cm;
Voltage:120V,220V/50HZ,110V-240V;Q'TY:4 PCS/CTN;
Certification:CE ISO Certification;outer box size:66*34.5*45cm;
Payment Terms:L/C,T/T,Western Union;Packaging Detail:1pcs per inner box ,2pcs per outer carton box;
After-sales Service Provided:Video technical support;Warranty:1 Year;
Tip Type:STRAIGHT;Supply Ability:200.0 Piece/Pieces per Week;

YIHUA948  ESD Safe Desoldering Vacuum Suction Gun Station



Feature

1. Adopts PID programmable temperature control technology with an implantable highest-precision PID program for high-speed tracking and detection of actual soldering station temperatures with real-time temperature correction. Temperature stability, minimal temperature error.

2.With suction tin soldering station and soldering iron function which can intelligent identify and interchange When we need to use the soldering iron remove the suction tin soldering handle ,connected the iron handle It can intelligent identify and read the last time temperature setting parameter of soldering iron .if need to change back to the suction tin soldering station take down the iron handle and connected to suction tin soldering handle ,the machine automatically identify suction tin soldering handle temperature parameters.

3. Anti-static design prevents electrostatic component damage or leakage.

4.Adopts an isolation transformer for power supply to heating elements , low voltage power supply which safety and reliability.

5.Portable built-in vacuum with strong suction does away with external vacuum systems, easy to take away.

6.Iron stand with the integration of design, installation on the side of the machine , stable ,don't worry stand shift and affect the operation.

7. This device has the following user-friendly design features

A. Sleep function
Soldering iron automatic detection of their work status are not in use in a quiescent state, arriving to set the sleep time, the temperature of the iron automatically lower the temperature to 200 ° C enter into sleep state, can effectively prevent the oxidation of iron head and prolong the iron tip service life, energy saving and environmental protection. The sleep time can be set range: 1 to 99 minutes in 1 minute steps, users can be set based on usage, if you do not need a soldering iron sleep ,the sleep time is set to---.
Wake/Sleep Mode
a Shake soldering handle up and down several times or flick the red switch on the suction gun once.
b Press any one button.
c Turn the power switch on and off.



B Automatic shutdown function
After machine enter into sleep state, start the timer program, set the shutdown time did not wake up from sleep, automatic shutdown, energy saving and environmental protection. Auto power off time setting range: 1 to 99 minutes in 1 minute steps, If you do not need a auto shutdown function ,the power off time is set to---.



C Temperature Correction Feature
Suitable for temperature deviations between actual temperatures and displayed temperatures due to environmental conditions or the replacement of heating cores, iron tips or other parts which can be corrected with this feature.

D. Celsius/Fahrenheit Display Temperature Function

 To satisfy market demand in different regions, the Company has designed a temperature display mode.

8. With a unique tin suction nozzle and heating pipe design, solder can be inhaled through filters in a molten state without the need for regular maintenance, thereby delivering greater efficiency.

9. Adopts silicone heat-resistant tubing to prevent heat generation and contact damage.

10. The double-sided internal SMT manufacturing process boasts clean craftsmanship. The signal flow is clear, and the machine is both stable and safe, further improving its performance and adaptability to various harsh environments.





Data:

Desoldering iron gun power

80W

Soldering iron power

60W

Temperature range

200oC -480oC

Display type

LED digital

Temperature stability

±1oC

Heating element voltage

AC 26V ±10%

De soldering pump power

12W

Vacuum pressure

0.12MPa

Tip of ground resistance

<2OM

Dimensions

32.5*32*20.5cm

Weight

 4.6 KG/PC

Handle cord length

≥120cm

Operating temperature

0-40oC/32°F-104°F

storage temperature

-20oC-80oC/-4°F-176°F

Storage humidity

35% -45%





Company Information Display



Guangzhou YIHUA Electronic Equipment CO., Ltd was founded in the 1980s, which transferred from

a large scale army enterprise called 083 base. It has become the biggest and most powerful

manufacturer for making professional rework station and soldering station and DC power supply and

our sales all over the world.

Certification of our products



We have passed the ISO9001-2008 international quality management system and our products have

passed the European CE certification, the United States,ETL certification, SAA certification, SGS

certification, the depth of export certification and Korea KC certification and so on.

Chinese Soldering Industry Standard Maker



2016,our company was invited to attend Standard Committee for Household Electrical Appliances--Chinese Soldering Industry Standard Set.

Complete Quality Test System



All of our products are passed testing by professional person before shipping, let you don't need to worry about the quality.

Our warranty

*Credit Safeguard

GuangZhou YiHua Electronic Equipments Co,. Ltd  was signed a contract with Alibaba and  paid a large deposit, make buyers fee l comfortable buying

*Factory advantage

Factory D&R / production/ sales/ and sales service together.

Manufactory  sell directly,the goods are in plenty supply,delivery date fast,good compete price You could arrange to ship the goods by your self , or  ask we help you arrange to ship. If  we help you arrange to ship. Before quote the shipping freight, we need to know which model and quantity you are asking. We will according your detail address, order model and quantity to advise  you ship by sea  or, by air ,or by Express. As usual, we are using HongKong DHL to ship the small order..

*Delivery date

Over 100~over500pcs are 20days  will ship out. Over 1000pcs are 30days .

If the material not enough or we have some customer  queue up our products before you,

we will discuss with you the shipping date. If you want the delivery date faster than that day, please inquiry us, we will try to do it as your request.

*Warranty policy

One Years warranty

As usual, the shipping fee are high. if return China to repair are not worth the money. So we could support technology and give you the spare parts along with the product .

Note: warranty does not cover wearing parts:, for example :iron heater, gun heater ,iron tips.

*Products  discount

as usual we quote three price for each model :sample price, over 60pcs price, over 500pcs price.

Those price are calculate our produce cost, as you know big order are less margin to sell. we hope take win-win business with both.

*Warm-heart  note

1.If products upgrade or quality improve to change the technique parameter, the factory will not further notice.

2.If the customer haven't special request, the product in accordance with factory's setting quality standards to produce.
