XZ1000A HDD MACHINE WITH ONE YEAR GUARANTEE PERIOD

Click here to contact

Product details

Warranty:	1 YEAR;	Packaging Detail:	As for XZ1000A horizontal directional drill / XZ1000A HDD machine, we usually transport it together with its accessories by Ro-on Ro-off shipment or Bulk shipment.;
Payment Terms:	L/C,T/T,Western Union;	Max spindle torque:	43000N.m;
Max thrust/pullback force:	1075kn;	Showroom Location:	None;
UNIQUE SELLING POINT:	EXCELLENT PERFORMANCE;	Place of Origin:	Jiangsu China;
Guarantee period:	One year;	Package Preview:	;
Usage:	Trenchless projects;	Model:	XZ1000A HDD machine;
Engine model:	QSL8.9-C360;	After Warranty Service:	Video technical support,Online support,Spare parts;
Brand Name:	XG;	Max flow rate of mud pump:	600L/min;
Supply Ability:	10.0 Unit/Units per Month;	Local Service Location:	None;
Condition:	New;	Port:	Any port in China;
Applicable Industries:	Construction works ,Energy & Mining;	Max spindle speed:	100r/min;
Engine power:	264kw/2100;	Max carriage thrust/pulback speed:	35m/min;

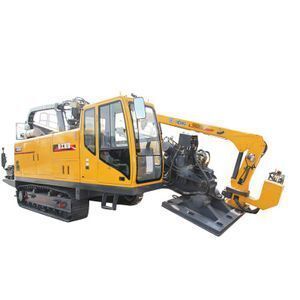

XZ1000A HORIZONTAL DIRECTIONAL DRILL / XZ1000A HDD MACHINE
ITEM		PARAMETER
Engine	Make	Cummins
	Model	QSL8.9-C360
	Rated Power	264 KW / 2100 R/Min
Operation	Type	Rack and pinion
	Max. Thrust /Pullback Force	1075/1075 KN
	Max carriage thrust/pullback travel speed	35M/Min
	Max. Spindle Torque	43000 N·M
	Max. Spindle Speed	100 R/Min
	Type	Self-Propelled Steel Track
	Ground Travel Speed	3.0 Km/h
Drill Rod/ Drill pipe	Diameter ×Length	Φ127mm×6000mm
Drill Rod/ Drill pipe	Entry Angle	18°
Mud Pump	Max flow rate	600L/Min
Mud Pump	Max pressure	10
Overall Weight		23T
Overall Dimension		11500×2900×3000mm
