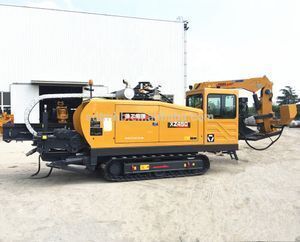

XZ450 HORIZONTAL DIRECTIONAL DRILL WITH ONE YEAR GUARANTEE PERIOD
-
Supplier: Shandong Tangmihanbei Import And Export Co., Ltd. -
Region: Shandong, China -
Contact: Mr Jie Lee -
Price: $93000.00 /unit -
Min. Order: 1 unit
Product details
| Max thrust/pullback force: | 480kn; | Model: | XZ450 horizontal directional drill; |
| Packaging Detail: | As for XZ450 horizontal directional drill, we usually transport it together with its accessories by 40 feet container.; | Max spindle speed: | 135r/min; |
| Engine power: | 194kw/2200; | Payment Terms: | L/C,T/T,Western Union; |
| Usage: | Trenchless projects; | Place of Origin: | Jiangsu China (Mainland); |
| Guarantee period: | One year; | Max flow rate of mud pump: | 600L/min; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Engine model: | QSC8.3-C260; |
| Max carriage thrust/pulback speed: | 42m/min; | Supply Ability: | 10 Unit/Units per Month; |
| Max spindle torque: | 23500N.m; | Port: | Any port in China; |
XZ450 HORIZONTAL DIRECTIONAL DRILL | ||
ITEM | PARAMETER | |
Engine | Make | Cummins |
Model | QSC8.3-C260 | |
Rated Power | 194 KW / 2200 R/Min | |
Operation | Type | Rack and pinion |
Max. Thrust /Pullback Force | 480/480 KN | |
Max carriage thrust/pullback travel speed | 42M/Min | |
Max. Spindle Torque | 23500 N·M | |
Max. Spindle Speed | 135R/Min | |
Type | Self-Propelled Steel Track | |
Ground Travel Speed | 3.0 Km/h | |
Drill Rod/ Drill pipe | Diameter ×Length | Φ89 mm×4500mm |
Entry Angle | 10~20° | |
Mud Pump | Max flow rate | 600L/Min |
Max pressure | 10 | |
Overall Weight | 13.3T | |
Overall Dimension | 8800×2280×2610mm | |
