Complete beer brewing equipment micro brewery for sale

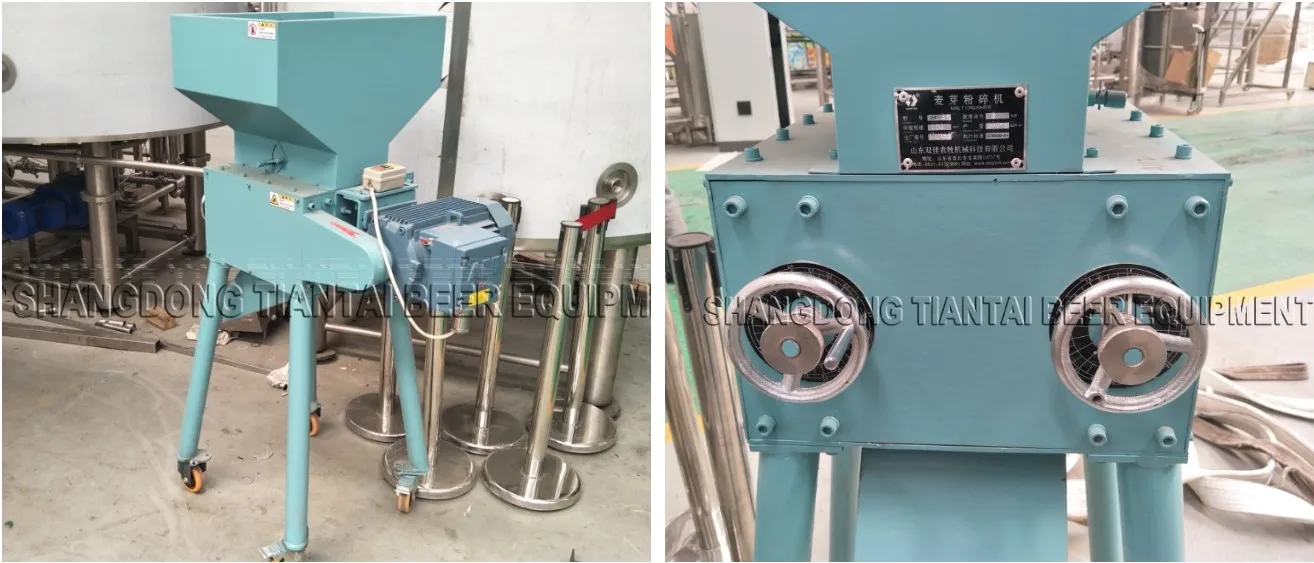

Our standard grain crushing machine based on Speed differencial double roller.

The Crushing Particle Size is adjustable.

The Flexible auger, Grist hopper and Hydrator for optional.

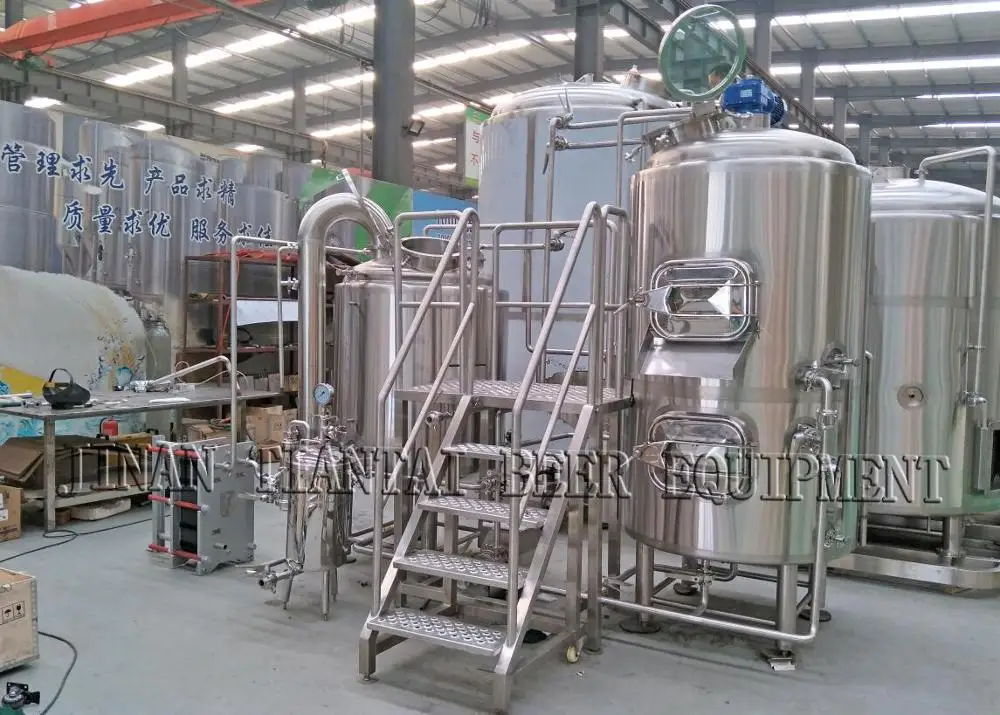

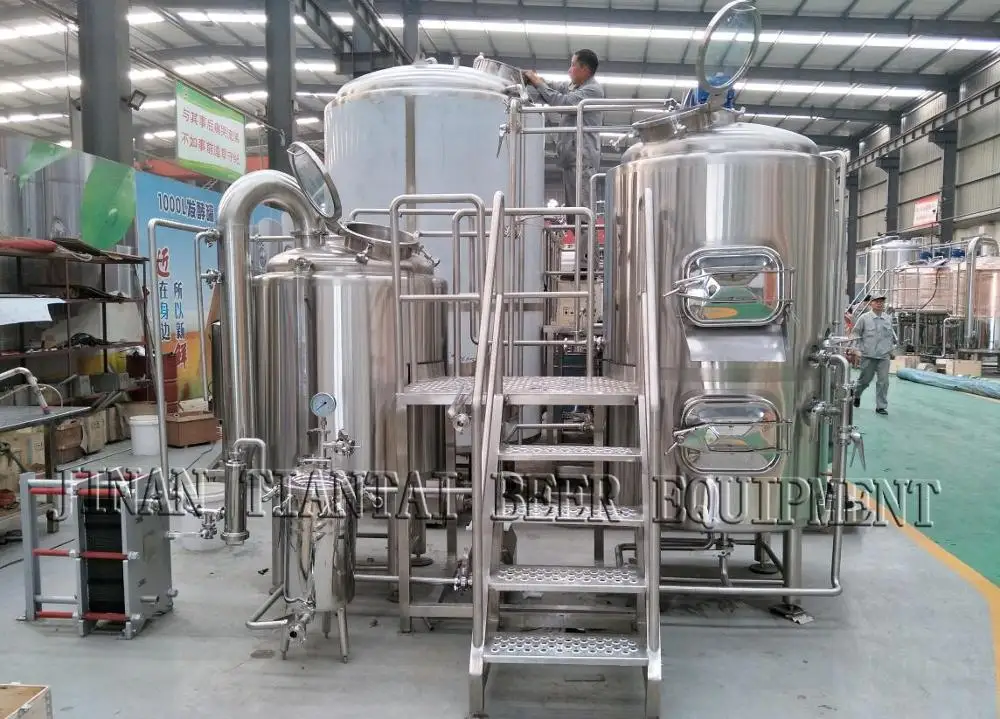

The Picture as below is turnkey 800L/7bbl micro brewery beer equipjment customized for other customers. The brewhouse based on combined three vessel structure: Mash/Lauter /whirlpool tun + Brew kettle. Just mean one combined vessel of Mash/lauter tun on top, the whirlpool tun on bottom; And one separated vessel of brew kettle. With this structure, the whirlpooling will not being influenced if you prefer to use electric heating. As now the brew kettle is one separated tank with electric heating coil inside.

Besides, this tructure will help to saves you some foortpint on site, but need higher ceiling height.

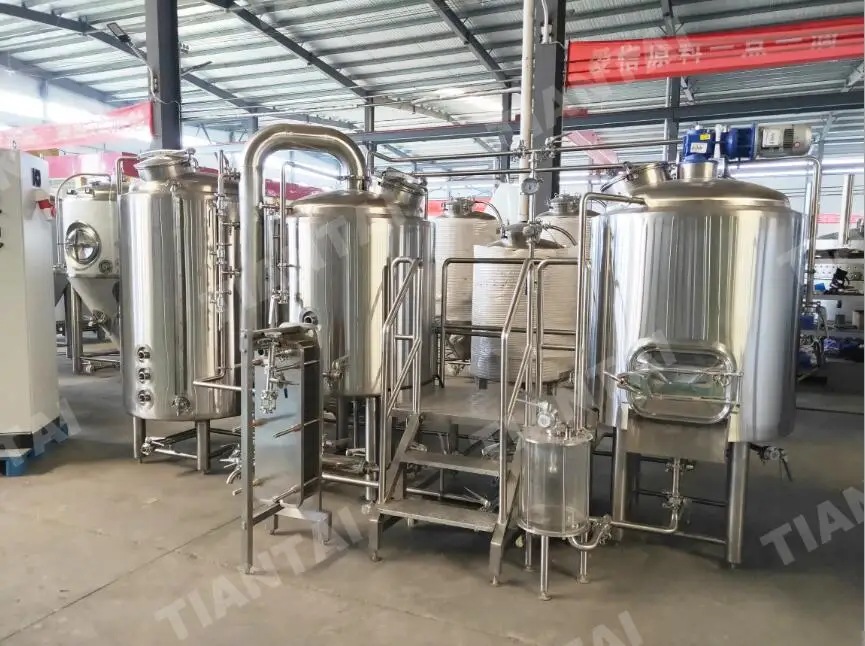

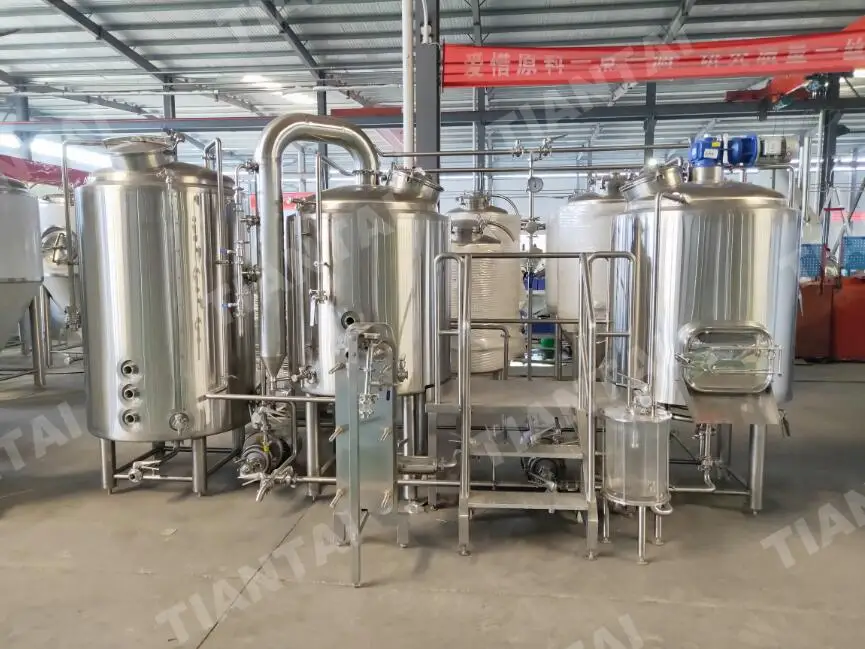

This set of micro beer brewing equipment as below with two vessel brewhouse, Mash/Lauter+Kettle/Whirlpool tun + HLT. Just mean one combined vessel with mash/latuer tun on top, the whirlpool tun on bottom. And one separated vessel of brew kettle. Many of our customers prefer to use Electric heating for the 7bbl brewhouse, Or with limited footpint. Do not worry about it! This structure is a choice~

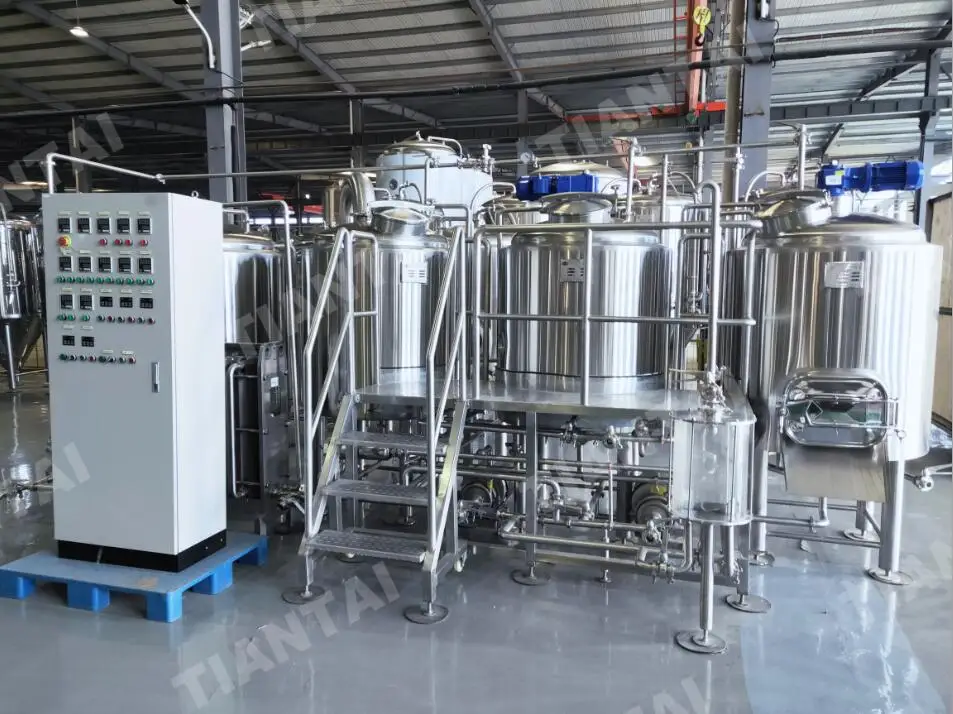

The 3 vessel micro beer brewery system is becoming more and more popular recently, the separated mash tun and lauter tun is more flexible during brewing. The 3 vessel micro brewey is suitable for both of Infusion and Decoction. It is suitable for brewing multi batches per day.

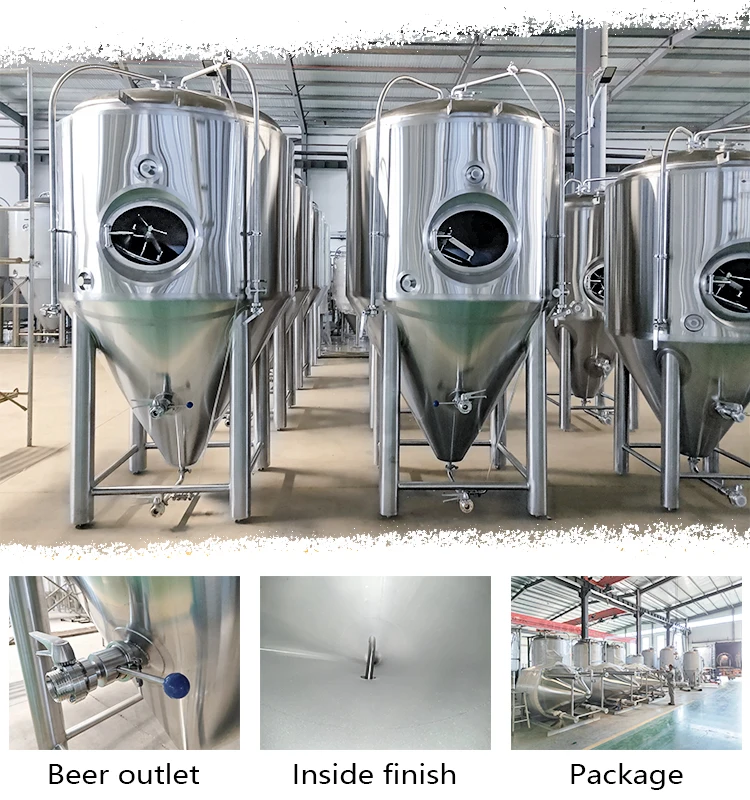

Most micro breweries today use cylindro-conical vessels, or CCVs, which have a conical bottom and a cylindrical top. The cone aperture is typically around 60°, an angle that will allow the yeast to flow towards the cone's apex, but is not so steep as to take up too much vertical space. CCVs can handle both fermenting and conditioning in the same tank. At the end of fermentation, the yeast and other solids which have fallen to the cone's apex can be simply flushed out of a port at apex.

TIANTAI can offer you both cooling systems for cold rooms and glycol cooling systems in various sizes to meet the requirements of your brewery. The glycol cooling system includes stainless steel insulated ice water tank, chiller with fryon as refrigerant and glycol water recycle pipings. The ice water tank is used to contain the liquid mixed with city water and glycol which freezing point will be as low as 5 to 7 degree below zero.

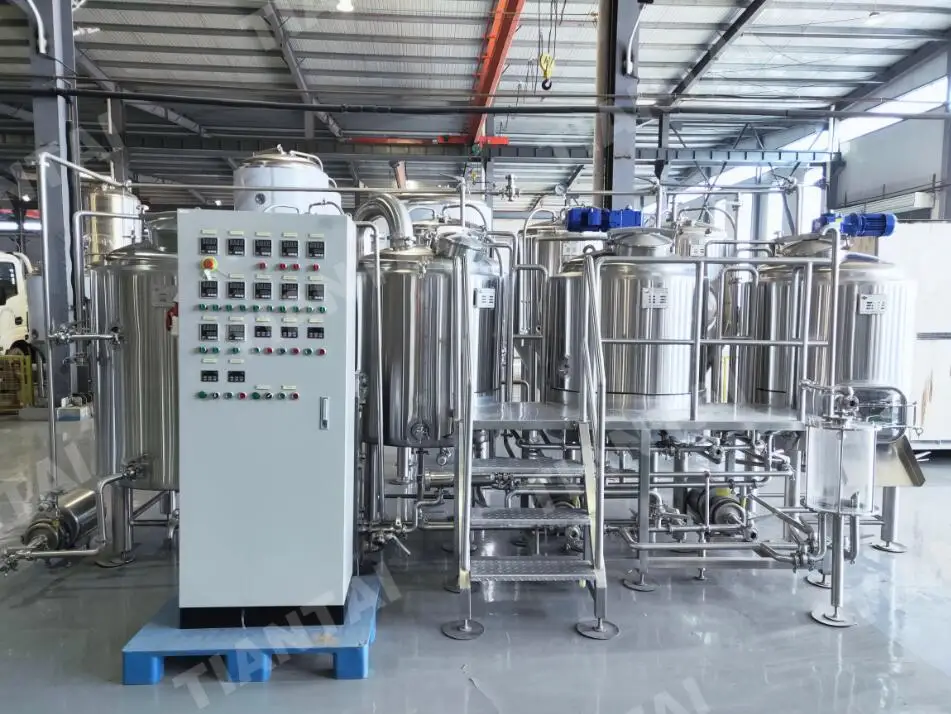

The comparison of instrument and PLC control panel

Instrument panel:   the program is very stable. Although one module is broken, it would not affect other modules.

The PLC panel:      Modern and beautiful. And it has high visual degree.

We have more than 15 years experience about designing, manufacturing, installing and training the beer brewery equipment. We have exported to USA, Canada, Brazil, Korea, Australia, Italy, Spain, Belgium, South Africa etc. All of our beer equipment details are taken the humanized and brewmasters’ intention into consideration. Reliable quality is guaranteed by certificated raw material, professional technical support, advanced processing equipment, strict quality control and complete personal training etc. We always keep our system affordable which will support more brew masters to approach their brewing dream.
