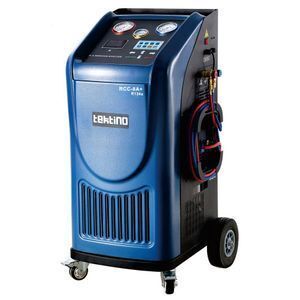

CE certified, Tektino Fylly automatic RCC-8A+ automotive ac recovery recycling recharge machine
- 100.00 unit
| Warranty: | One Year; | Brand Name: | Tektino; |
| Port: | Wuhan; | Packaging Detail: | Wooden case, Packing info: 710*640*1190mm, Gross weight:105kg; |
| Model Number: | RCC-8A+; | Manifold: | Highly integrated manifold; |
| Place of Origin: | Guangdong China; | Type: | Fully Automatic,Other,Other; |
| Display: | color LCD screen; | Payment Terms: | L/C,D/P,T/T,Western Union,MoneyGram,PayPal; |
| Certification: | CE; | Language: | English,Spanish,Polish,Turkish,Russian,Czech,Serbian,Croatian,etc; |
| A/C database: | over 6000 car models till 2015; | Supply Ability: | 300.0 Unit/Units per Week; |
CE certified, Tektino Fylly automatic RCC-8A+ automotive ac recovery recycling recharge machine
* Highly integrated module and high quality spare parts ensure a stable & reliable operation.
* A/C database is more than 6000 car models, can be also updated every year and have 10 blank
self-definition database settable.
*Automatic vacuum leak test available
* Service reminding for regular maintenance after 600 operations
Interphase Chart
Key board
Highly integrated pipeline modules
Original imported high-quality parts
Compressor
Dry filter
Hose
partial picture
Functions
1.Main functions
1)Recovering/Recycling (discharging used oil)
2)Vacuum (automatic vacuum leakage test for optional)
3)New oil injection
4)Recharging
5)Full Automatic mode
2.Auxiliary functions
1)Vacuum system piping
2)Multiple alarms
3)Maintenance procedures
4)Part inspections
5)Calibration of load cell
6)Parameters setting
7)Refrigerant tank heating (optional)
8)Air purge system
9)Service reminding for regular maintenance after 1200 operations
Specifications
| Power supply | AC220V±10%~50/60Hz, 110V±10%~60Hz |
| Vacuum pump | 60L/Min (120L/Min for optional) |
| Compresor | 3/8hp, import compressor |
| Load cell accuracy (refrigerant tank) | ±10g |
| Max. working pressure | 20bar |
| Dry filter | 600ml |
| Refrigerant tank volume | 13.6L (max.10kg full tank alarm) |
| Vapor refrigerant recycling speed | 250g/Min |
| Liquid refrigerant recycling speed | 350g/Min |
| Load cell accuracy (oil tank) | ±5g |
| Dimension(machine) | 635*585*1075mm |
| Dimension(Package) | 710*640*1190mm |
| Languages | English,Polish,Turkish,Spanish, Russian, Czech, Serbia, Chinese, etc. |
| Gross weight | 105kg |
