CE Certified, Tektino AIR-095 full automatic car air conditioning handling system

Click here to contact

Product details

System:	Android;	Model Number:	AIR-095;
Mode:	Fully automatic;	Leak test:	vacuum leak test, UV dye leak test;
Type:	Other;	Place of Origin:	Guangdong China (Mainland);
Brand Name:	Tektino;	Port:	Shenzhen;
Payment Terms:	L/C,T/T,Western Union,MoneyGram,PayPal;	Certification:	CE;
Manifold:	Highly integrated manifold;	Packaging Detail:	Packing size is 9606901250mm;
Warranty:	One year;	Supply Ability:	100 Unit/Units per Week;
Display:	Touch Screen;

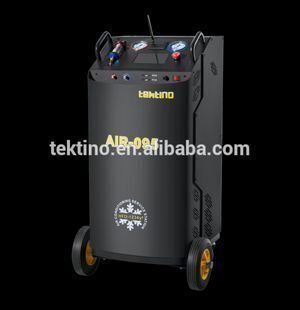

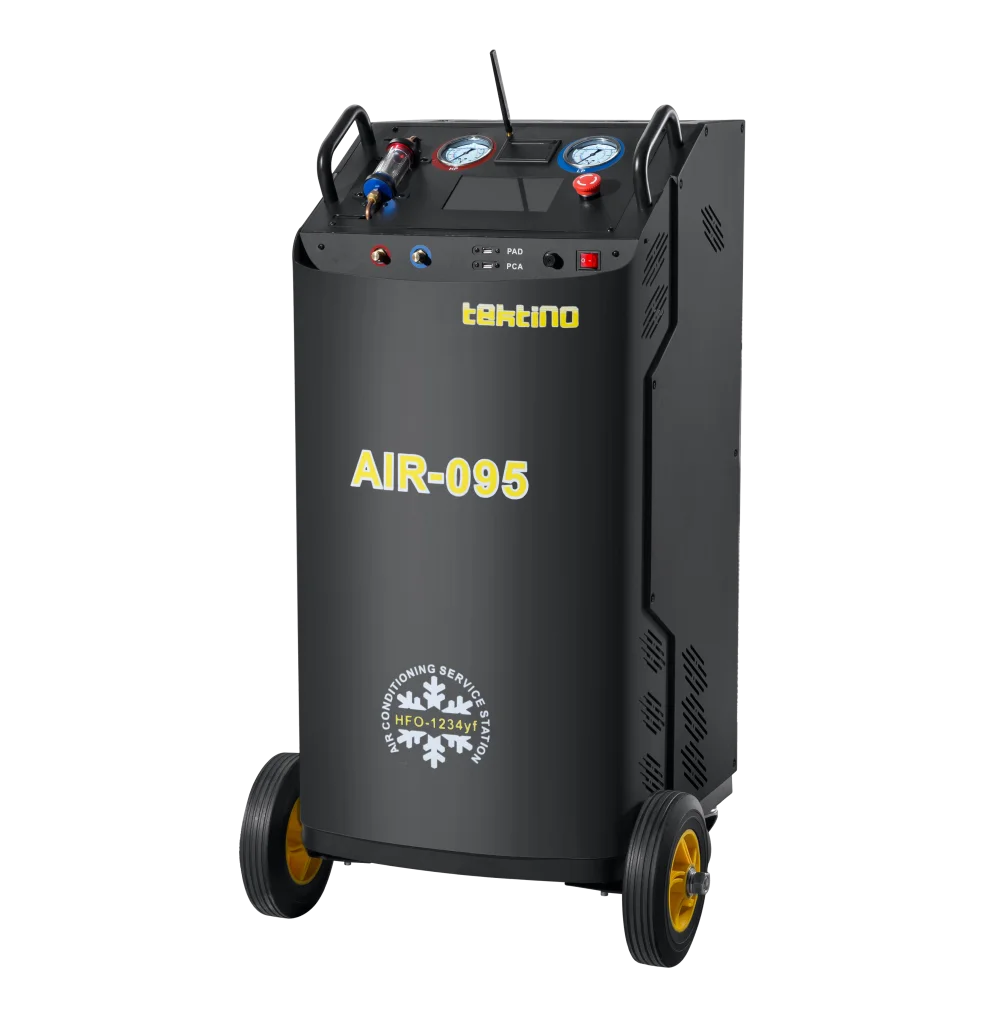

Tektino brand, AIR-095 fully automatic Car air conditioning handling system with CE certification

--Flush(Unidirectional & Bidirectional)

--Fully automatic in flush/recovery/vacuum/ oil injection/charge

--Vacuum leak test

--UV dye injection

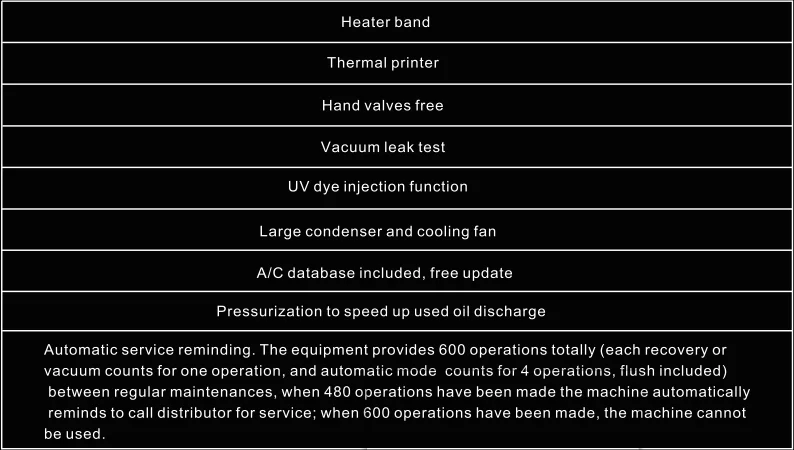

--Automatic service reminding

--Automatic air purge

--Amply database

--English, Polish, Turkish, Russian, French,Spanish, Czech, Serbian, Croatian, German, Arabic, Chinese, more languages pre request.

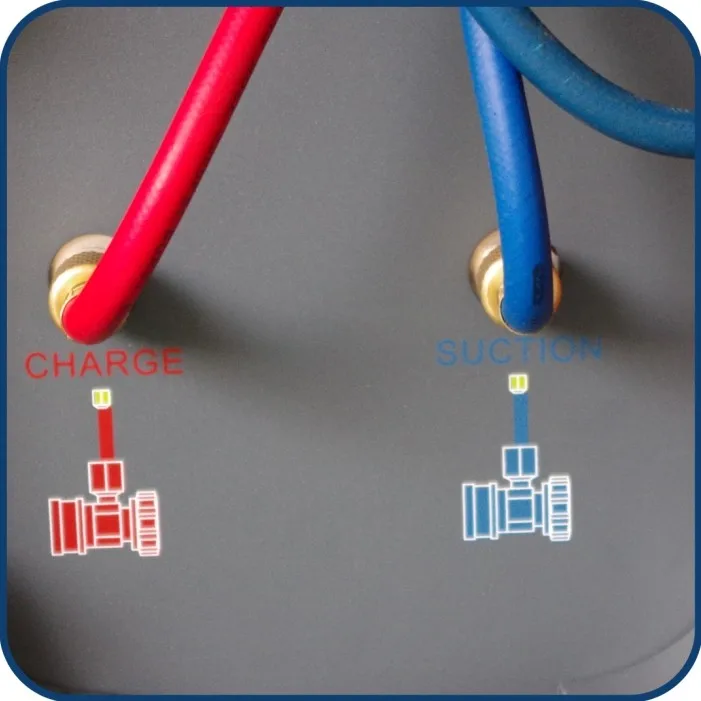

Interface Chart

Highly integrated pipeline modules

Original imported high-quality parts

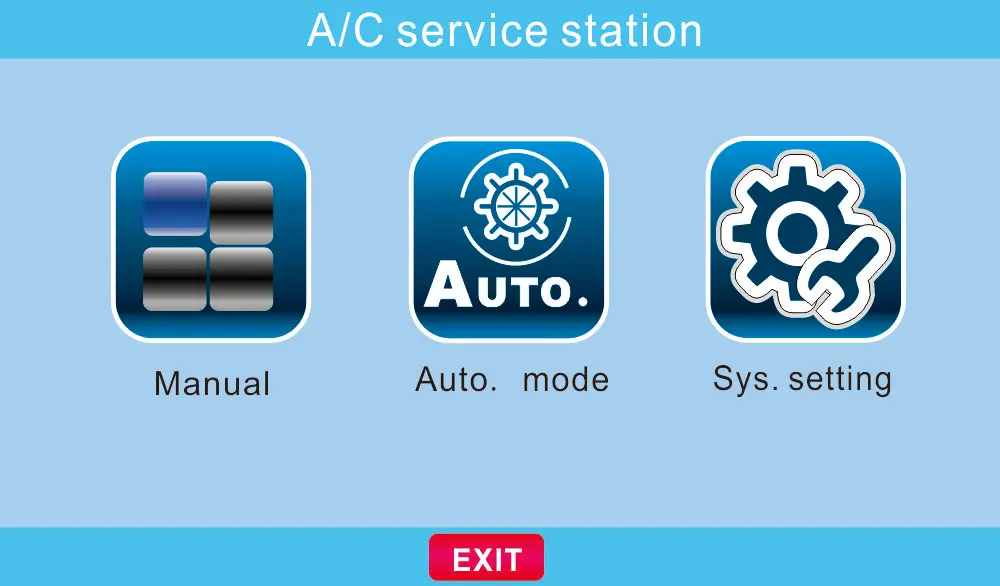

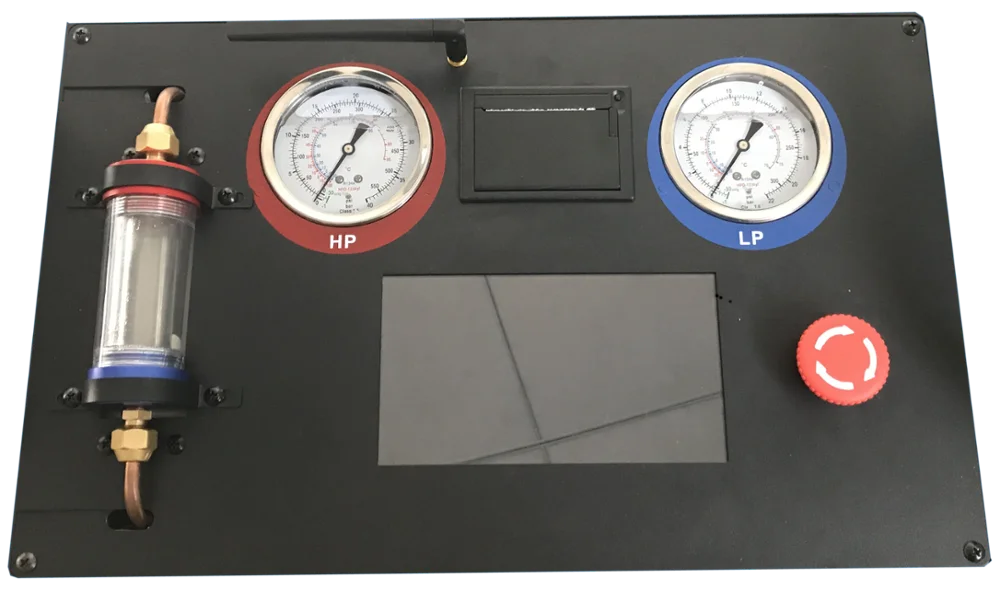

Touch screen

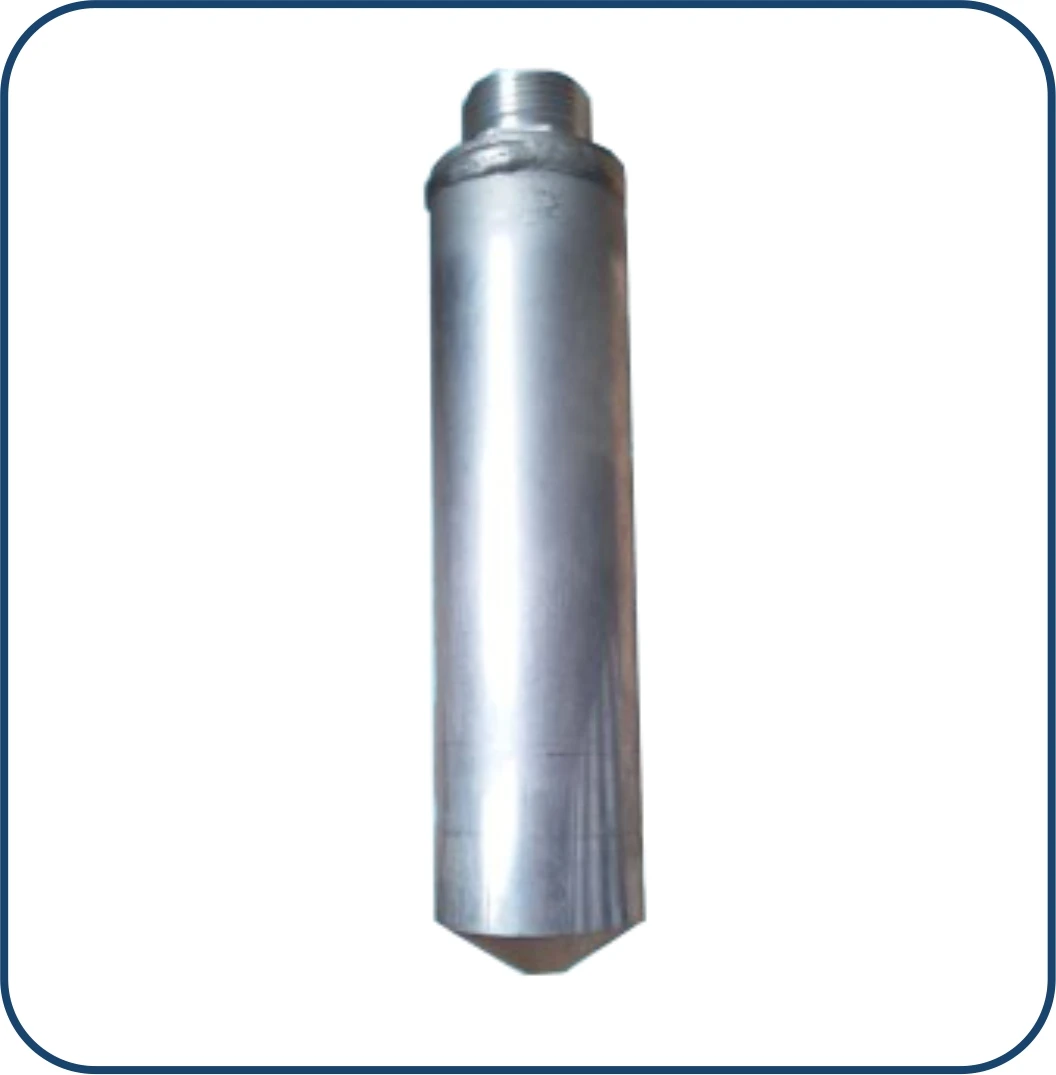

Dry filter

Equipment self-diagnosis

Hose

Functions:

Dimension	Package 9606901250mm; Unpacked machine 6807401120mm
Input power	AC220V±10%~50/60Hz, 110V±10%~60Hz
Imported compressor power	3/8 hp
Average gas state refrigerant recovery speed (through charge/suction port)	250g/Min
Recovery rate	97%
Pressurization mechanism	to speed up old oil discharge
Vacuum pump speed	120L/Min
Accuracy of tank load cell	±10g
Accuracy of oil bottle load cell	±1g
Tank capacity	18KG
New/Old oil bottle capacity	250ml/400ml
Max.Pressure	20bar
Recharge speed	2kg/Min (max.)
Flush time range	20-60 minutes
LCD display	7-inch, color display
High pressure gauge range	-1~40 Bar
Low pressure gauge range	-1~22 Bar
Service interval time expiration	600 times usage(Every recovery or vacuum will be counted as 1 time usage, and an auto. operation will be counted as 4 times usage,flush included) of the equipment
