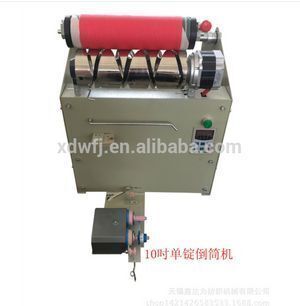

Yarn/Wool Winder Bobbin Winding Machine with 10 inch Drum

Supplier: Wuxi Xindawei Textile Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Dean Dai
Price: $400.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Automatic Grade:	Semi-automatic;	Local Service Location:	None;
Power:	360W;	Port:	Shanghai/Ningbo;
Showroom Location:	None;	Certification:	Certification;
Material:	Steel;	COLOR:	Grey, green, white, blue;
Memory Capacity:	999999m;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;
Weight:	210kg/section;	Voltage:	220V;
Application:	large package, polyster, nylon, wool,Winding Yarns;	After-sales Service Provided:	Free spare parts,Video technical support,Online support;
Place of Origin:	Jiangsu China;	Warranty:	1 Year;
Applicable Industries:	Manufacturing Plant;	Package:	Wooden case;
Num of Spindles:	1-108;	Supply Ability:	540.0 Unit/Units per Month;
Dimension(LWH):	15808701640;	Packaging Detail:	Wooden Case, we have several kinds of packages, we will according to your demands to design.;
Production Capacity:	HIGH SPEED;	After Warranty Service:	Video technical support,Online support,Spare parts;
Condition:	New;	Name:	Yarn/Wool Winder Bobbin Winding Machine with 10 inch Drum;
Brand Name:	Xindawei;

Product Description

Single Spindle(Unit)

1. Automatic stop at preset diameter and at yarn break, speed up to 1200 mt/min.

2. Special winder for the production of hard cones for dyeing and waxing, for any type of yarns & blends.

3. Slow start and progressive speed increase, adjustable winding tension with frequency variator, mechanical clearers, yarn tensioners and anti-patterning device.

4. Supplied in sections of 1 up to 108 heads ready for opearation.

1, or 2, 4 Spindles(Units)

1. Automatic stop at preset diameter and at yarn break, speed up to 1200 mt/min.
2. Special winder for the production of hard cones for dyeing and waxing, for any type of yarns & blends.
3. Slow start and progressive speed increase, adjustable winding tension with frequency variator, mechanical clearers, yarn tensioners and anti-patterning device.
4. Supplied in sections of 1 up to 108 heads ready for opearation.

Detailed Images

Packing & Delivery

Specifications

Item	Technical parameters
Types of winding	Drum,Random
Mechanical speed	Up to 1200m/min (process speed depending on quality of yarn and feed packages)
Package shape	Cylindrical or conical
Traverse length	280mm
Mechanical anti-patterning system	Swing amplitude of creel :1-3mm
Package bobbin	0°，3°30’，4°20’，5°57’，9°15′
Package diameter	Up toφ 290 mm
Package density	0.2-0.4g/cm3
Fibre / count	Cotton.flax, wool, silk,chemical fiber /Ne 6…180
Auto stop while yarn break	With electronic yarn detector,the spindle will stop when yarn break
Slow start	For smooth start and better winding quality,supportting individual slow start for each spindle(available on request)
External dimensions	2.235(length) ×0.7(width) ×1.68(height)
Power supply	220V
