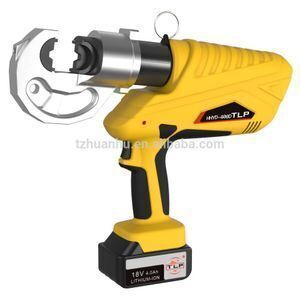

HHYD-400D Battery Powered Cable Lug Terminal Connector Crimping Tool Hydraulic Cable Crimping Tool Wire Crimping Tool

Supplier: Taizhou Ruiqi Tools Co., Ltd.
Region: Zhejiang, China
Contact: Mr Michael Zhang
Price: $490.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

charging time:	2 hours;	Supply Ability:	100.0 Piece/Pieces per Month;
Package:	sturdy plastic storage box;	Type:	Hydraulic Crimping Tools;
battery:	18v/4.0 Ah Li-ion;	Packaging Detail:	sturdy plastic storage box;
Payment Terms:	T/T;	max.pressure:	12 ton;
max. stroke:	32 mm;	crimping dies:	16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400sqmm;
battery capacity:	180 crimping cycles;	Port:	Ningbo, Shanghai;
crimping range:	16-400 mm2;

Product Description

Characteristics

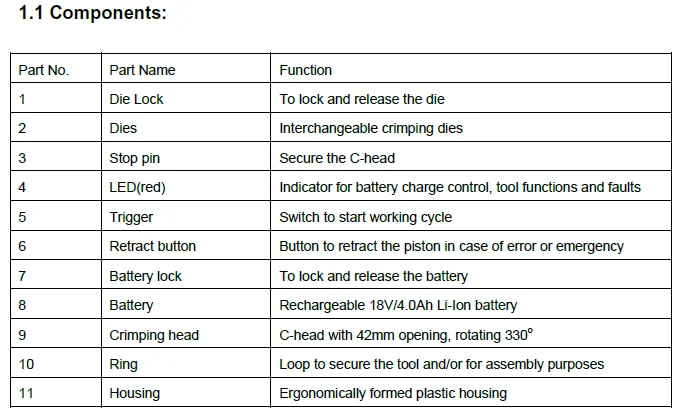

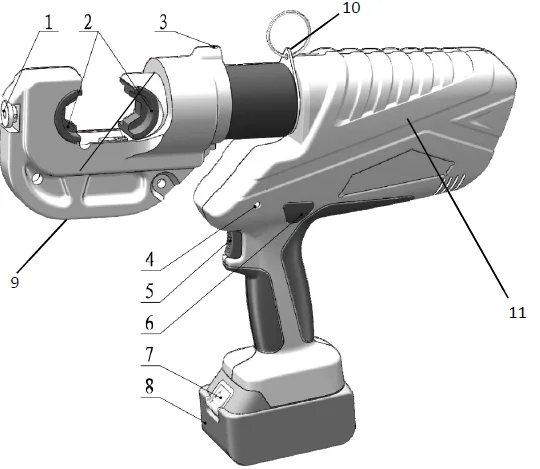

1. Open C-crimping head with 42 mm width, rotating 350°.

2. Two-stage hydraulic system features fast feed and power stroke upon reaching counter pressure, saving time.

3. 10000+ cycle service life.

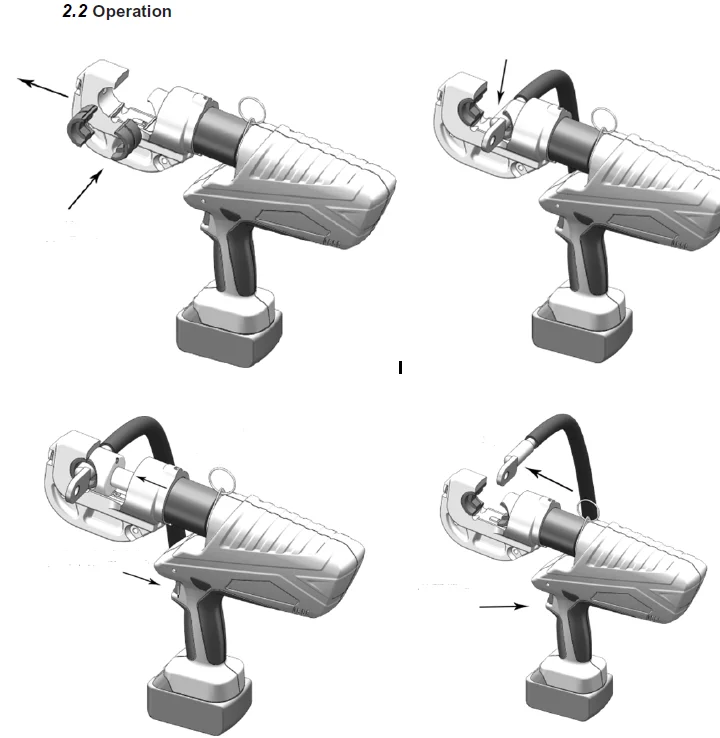

4. Ram retracts to original position automatically when operation is complete.

5. Manual retraction in case of need.

6. Audible buzzer and red LED light in case of error.

7. Quick motor stop for higher user safety.

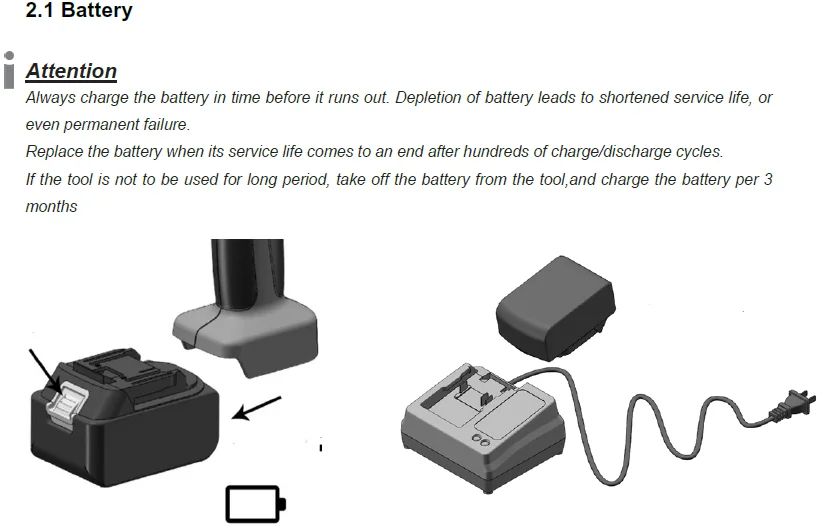

8. Powerful 18V Li-ion battery with low battery warning.

9. Ergonomic 2-component grip area and balanced center of gravity.

10. Sturdy plastic storage box.

Model	HHYD-400D
Hydraulic Ram Output	11 Ton
Ram stroke	32 mm
Battery capacity	180 crimping cycles
Crimping range	16-400 mm²
Crimping times	5s-15s(Depend on the size of cable)
Battery	18V/4.0Ah Li-ion

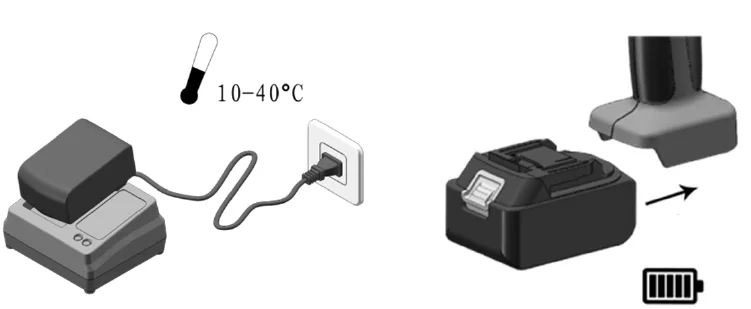

Charging time	2 hours
Crimping dies	16,25,35,50,70,95,120,150,185,240,300,400 mm²
Qty of battery	2 pcs
Charger	1 pc
Seals for the cylinder	1 set
Seals for the safety valve	1 set

Packaging & Shipping

We pack the goods with sturdy plastic storage box and can deliver the goods within 20 days.

Our Services

We take "Quality first, Customer utmost" as our principle and strive for customer satisfaction with our fine work in details. Our goal is to develop long-term business relationship with every customer we ever cooperate, by providing quality products and services, and continuous improvements.
