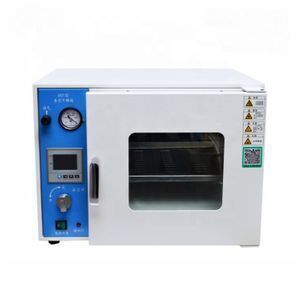

Hot-selling Laboratory Vacuum Drying Oven

Product details
Weight:50 KG;Certification:ISO;
Voltage:220V 50HZ;Packaging Detail:Drying oven package in wooden case or thicker carton;
Warranty:2 years;Temperature range:RT+10~250℃;
Usage:laboratory;Supply Ability:3000 Set/Sets per Month;
Dimension(L*W*H):370*415*345;Brand Name:BYF;
Vacuum degree:<133KPa;Applicable Industries:Food & Beverage Factory;
Application:Medicine Processing,Chemicals Processing,Plastics Processing,Food Processing,Eductaion;Power(W):300-2000W;
Product name:Hot-selling Laboratory Vacuum Drying Oven;Drying Oven Application:Biochemistry chemical etc;
Key Selling Points:Automatic;Keyword:Drying Oven;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;After-sales Service Provided:Online support,No after-sales service,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;
Package:Wooden Case;Condition:New;
Place of Origin:Hebei China;Material:Stainless Steel;
Type:Vacuum Drying Equipment;Port:Tianjin Port;
Color:Customers Request;
Product Description

Vacuum Drying Oven Application

Vacuum drying oven is widely used in the fields of biochemistry,chemical and pharmaceutical,medical and health,agricultural research,environmental protection etc.,which is suitable for powder drying,baking as well as disinfecting and sterilizing of all kinds of glass containers,especially suitable for quick and efficient drying treatment for items of heat sensitivity,easy decomposition,easy oxidation and complex components.

SPECIFICATIONS FOR VACUUM DRYING OVEN

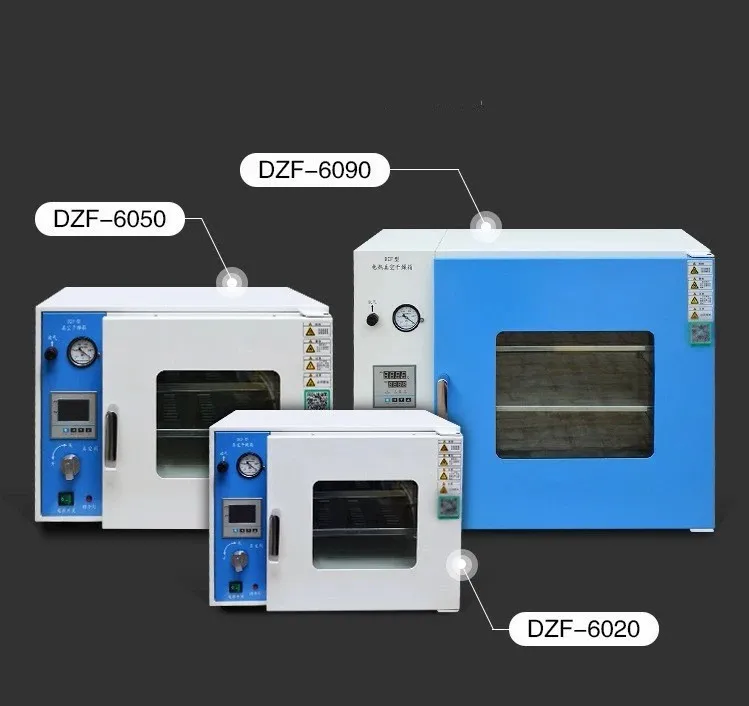

Model
Voltage
Power
Tem.range
Tem.resolution
Tem.fluctuation
Inner chamber size (D*W*H)
Exterior size (D*W*H)
DZF-6020A







220V 50HZ


300W







RT+10-250℃







0.1℃







<133Pa


300*300*275


420*595*460
DZF-6020B
DZF-6050A

1400W


370*415*345


510*720*535
DZF-6050B
DZF-6090B
1400W
450*450*450
570x790x640
DZF-6210B
2000W
600*650*550
720*940*970

Main Features


1) The shell is made of high quality cold-rolled steel plate,surface electrostatic spraying.

2) Inner chamber is made of stainless steel or galvanized steel plate.

3) A is galvanized steel inner chamber,AB is stainless steel inner chamber.

4) Intelligent digital display PID temperature controller,with the functions of timing,overtemperature alarm

instruction,temperature deviation correction,control temperature self-tuning.

5) Large double layer toughened glass window is convenient to observe the changes of contents in the box.

6) New type synthetic silicone seal,beautiful shape,can run high temperature for long period of time.

7) Hot air citculation system adopts the double air duct ciculation of the low noise fan.Ensuring that the fan service life

is more longer and the temperature in the box is more uniform.

8) The device is equipped with an independent fan switch that can be turn on or off as needed.

Note: if the customer doesn't need the air blast function,turn off the fan switch or ask to remove the fan to reduce the cost when placing the order.

Detailed Images

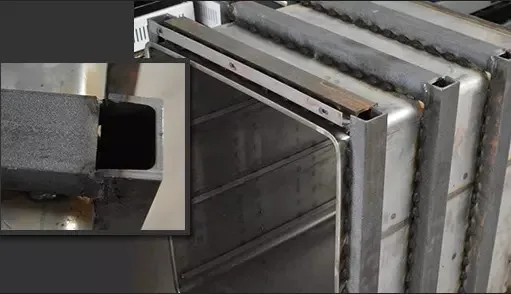

Inner Parts

Name: Inner Oven

Brand: BYF

Original: China

Reinforce inner steels

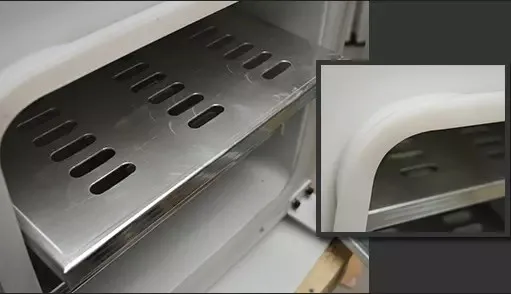

Dry Box Parts

Name: Extra thick bracket

Brand: BYF

Original: China

Extra thick bracket of exquisite workmanship

Machine Parts

Name: High temperature silicone sealing strip

Brand: BYF

Original: China

High temperature silicone sealing strip used in the box greatly improved vacuum.

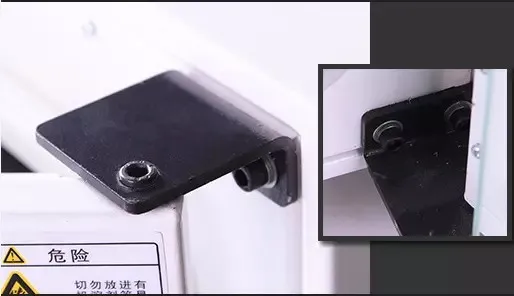

Adjustable Doorknod

Name: New type doorknod

Brand: BYF

Original: China

New type lock catch doorknod is used.This new design is adjustable.Much easier to open and close the door,also make the door more stable and better sealing.

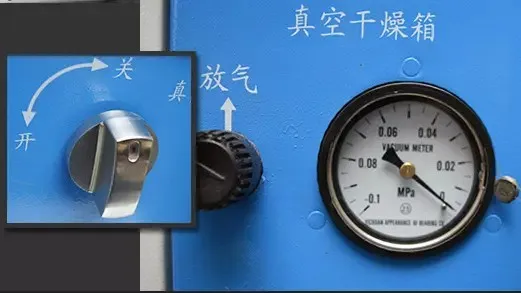

Vacuum Pressure Gage

Name: Vacuum pressure gage

Brand: BYF

Original: China

High quality vacuum valve switch and vacuum pressure gage are accute, quakeproof,antimagnetic.

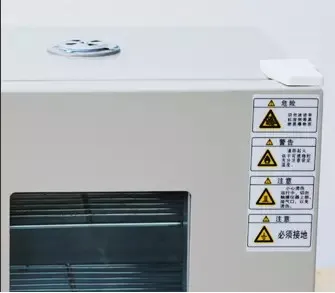

The Surface Treatment

Name: New type surface

Brand: BYF

Original: China

Powder coated of the surface to avoid anti. Beatiful,environmental and usable.

FAQ

1.Q:Where is your factory located? How can I visit there?


A: Our factory is located in Cangzhou City, China, about 40 minutes from Canzhou west station to our factory. And 120 kilometers from Tianjin International air port. Warmly welcomed to visit us!

2.Q:How does your factory do regarding quality control?

A: "Quality today, market tomorrow" Inspection and trace back No. We serious control the quality from raw material to finished goods.So that that we can 100% sure our goods is qualified.

3. Q: Price high ?

A: Our price is workable. We had tried use auto equipment to save Workers cost. and control other costs like humuan sources,logistics etc.

4. Q:After sales service.

A:Quality are promised. If our products are not meet the contract we would like to send free goods to you.
