Factory directly Small rotary drum dryer Cassava Dregs Cow Dung Rotary Dryer Price

Our company's dryer is a new type small multi-functional dryer, suitable for various drying operations, and four feet can install mobile wheel, which can adapt to a variousworking environment.The main models are 300, 500, 1000, 2000 and 4000, and can accept  different models customized according to customer demand, Our compny senior engineer track and guide the whole process , in order to meet customer request!

Product feature:

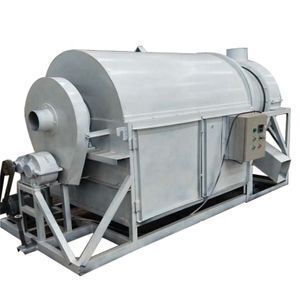

Small dryer including box and drum two parts, the main body adopts the reverse flow tower type internal circulation structure, the overall modular structure,which make it easy to disassemble and transport, small occupation, good drying quality, low labor operation intensity, low equipment cost.Integrated butt joint design of heating system and drum, compact structure, low energy consumption, high thermal efficiency.Small dryer conform to international continuous improvement of material drying quality, reduce energy consumption, reduce losses, conform to the green, quality, fresh drying concept.

1, can be widely used in river sand, sludge, coal mud, sawdust, sand, bean curd residue, chicken manure, organic fertilizer, feed, Chinese medicine residue, wine grains, vinegar grains and other fields material drying;

2. Take hot air as the drying medium, adopt the cycle drying process, the material is evenly heated and fully dehydrated, and the quality after drying is good;

3. The heating system of the dryer is more advanced. The converted heat energy can dry the materials without pollution.

4, equipped with automatic online temperature measurement, humidity measurement device, the degree of automation is greatly improved, high uniformity of drying;

5, can automatically control the work process, automatic shutdown, simple operation, greatly reduce labor costs.

Struction and work principle:

The chicken manure dryer is mainly composed of heating source, conveying machine, feeding machine, rotary drum, material crushing device, discharging machine, induced draft fan, unloading device and distribution cabinet.After the dehydrated wet material is added into the dryer, under the rotation of the uniformly distributed plate reader in the drum, the material is evenly dispersed in the dryer and in full touch with the hot air, which accelerates the drying heat and mass transfer.In the drying process, the material plate and hot air quality action with a tilt , to another section of the dryer star unloading valve discharge finished products

Three, main characteristics

1, production process: the machine will handle moisture 65%  fresh chicken manure to moisture 13% or less of pure chicken manure organic fertilizer after high temperature drying, sterilization, decomposition and other processes dried .

2, drying finished products: the organic fertilizer has a variety of nutrients necessary for crops.According to the test of the scientific research department, the nitrogen content of this fertilizer is 2.6% and the phosphorus content is 3.5%, and the potassium content is 2.5%. The crude protein content is 16-25% and the organic matter content is 45%.it Is pollution-free green food planting and the best choice of fertilizer, can also be used to feed fish, dirty pig and so on.

3, drum drying mechanization is with high production capacity degree,and can do continuous operation.

4, good structure, simple, material through the cylinder resistance smooth operation, easy to operate.

5, less fault, low maintenance cost, low power consumption.

6. Wide application range and good drying uniformity.

7, At the same time at dry can also achieve the purpose of sterilization and deodorization.

Technical Parameters:

Range of  Application:

Chicken manure dryer, cow manure dryer is suitable for large, medium, small chicken farms and breeding industry developed areas, according to the requirements of drying products, it can use different heat sources.Such as: gas furnace, direct hot air furnace, indirect hot air furnace, heat conduction oil, electric heating, steam, etc.This machine is applicable to chicken manure, duck manure, livestock manure and slaughtering waste materials with water content less than 65%, which has a good effect on opening up feed resources, reducing feeding cost and reducing environmental pollution.

Product and effect display:

Packing:Standard export packing or as buyer's request

Shipping:in 7-30 days after receiving the order

♦Pre-sales:
1 Perfect 7*24hours inquiry and professional consulting service
2.Visit our factory anytime
♦Sale:
1. Update the production schedule in time
2. Quality supervision
3. Product acceptance
4. Shipping on time
♦After-sales:
1. Guarantee:1 year ,during this period we will offer free spare parts if they are broken.
2. Training how to install and use machine
3. Engineers available to service overseas
4. Skill support during the whole using life

Q1: What is the MOQ for your roatary dryer?

A: Our MOQ is 1 set.

Q2:How long is the warranty of your equipment?

A:Our warranty period is one year generally.

Q3: Can I have the details information about your rotary dryer and your company?
A: Yes, surely, we would like to send all of details information about our machines to you at our earliest time. Our tel/WhatsApp/WeChat/Skype: +86 18530033911

Q4:Can I visit your factory?

A:Yes. Welcome to your visiting any time you are convenient!

For more details,please don't hesitate to contact us!Welcome to your inquiry!
