156x156mm Panel type Axial fan filter dust proof air filter DS9803

Supplier: Zhejiang Fengdeng Electric Co., Ltd.
Region: Zhejiang, China
Contact: Mr Weijie Zheng
Price: $1.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Place of Origin:	Zhejiang China;	Noise:	36-40dB;
Filtering material:	Foam;	Type:	Panel type;
Applicable Industries:	Building Material Shops,Machinery Repair Shops,Retail;	Air throughput:	65-85 m3/h;
Packaging Detail:	60pcs/carton;	Color:	Grey RAL7035;
Brand Name:	DOSSY;	Supply Ability:	100000 Piece/Pieces per Month;
Model:	DS9803;	Rated Current:	0.12-0.35A;
Port:	NINGBO / SHANGHAI;	Outside size:	156x156mm;
Protection IP:	IP54/ IP56;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Certificate:	CE RoHS;

Product Description

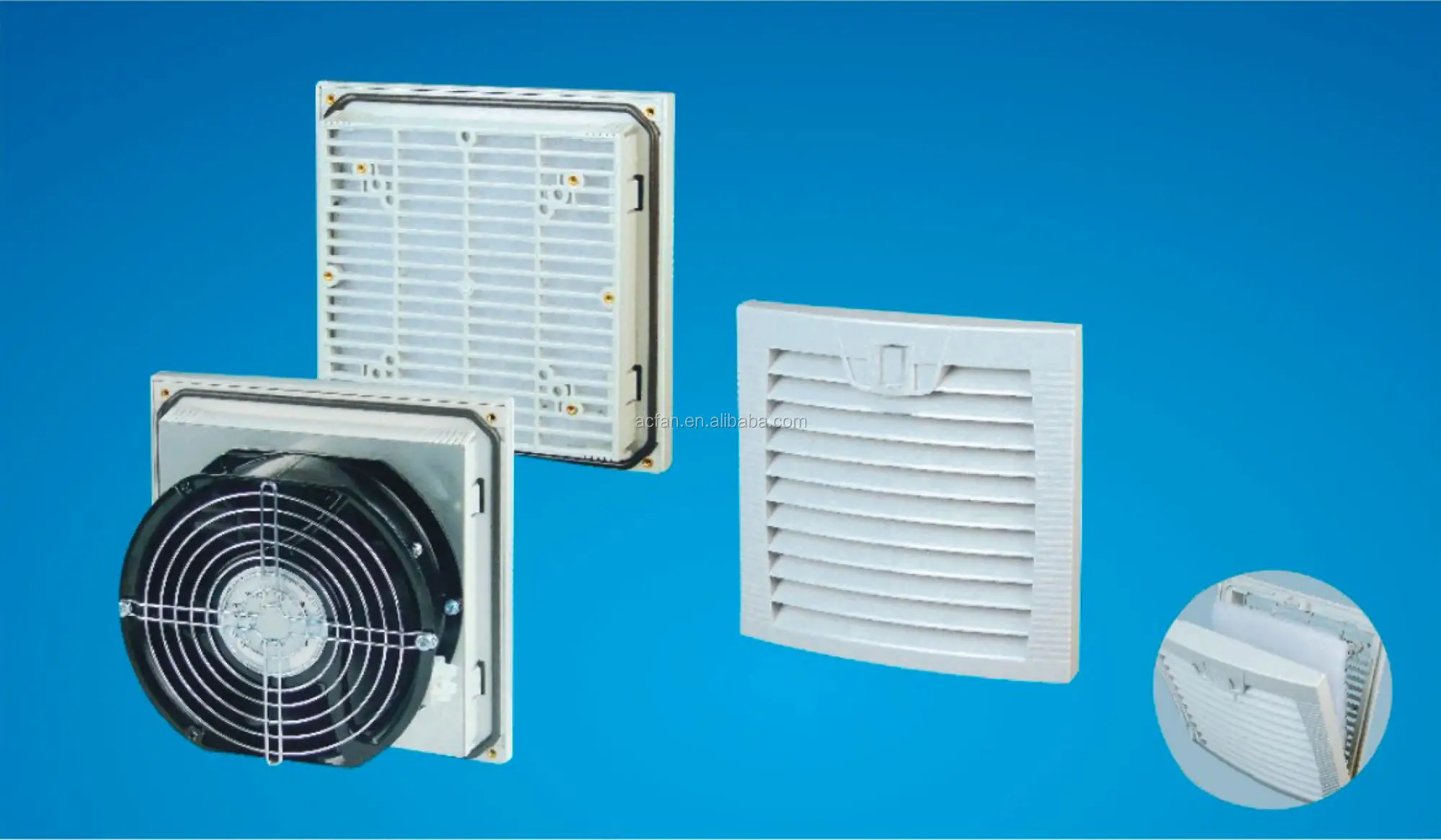

DS9803 Panel type Fan Filter

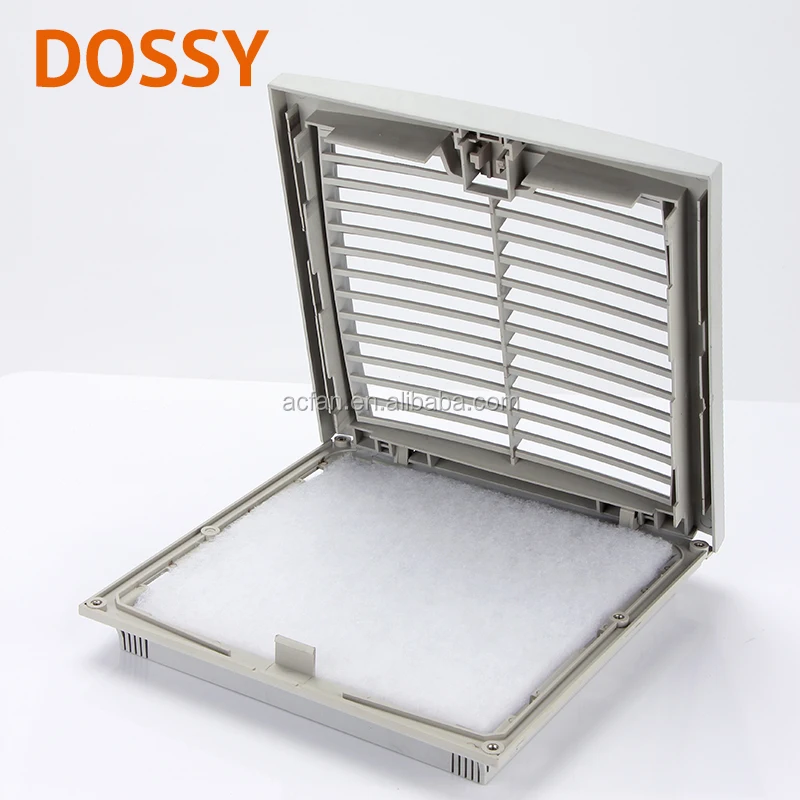

* DS9803 series ventilation system consists of grille, filter pad and fan.
* Frame is made up of heatproof andantiflaming fire retardant ABS plastic, the fire resistance conforms to UL-94 standard.
* High efficient external rotor axial fan ensures optimal filtering air flow rate.
* Non-woven fiber filter pad filtering efficiency up to 70% or more.
* The augmentof sealing ring makes it IP55 protection grade.
* The user can simply reverse the fan installation to achieve suck or blow airflow.
* Maintenance: usually this kind of equipment does not need any maintenance. But after using in the polluted environment, non-woven fiber filter pad needs to be cleaned (internal). After break up, you can use compressed air to blow the filter, or clean it with water (the highestwater temperature should be less than 40 degrees Celsius).

Technical Parameters

Order Number:

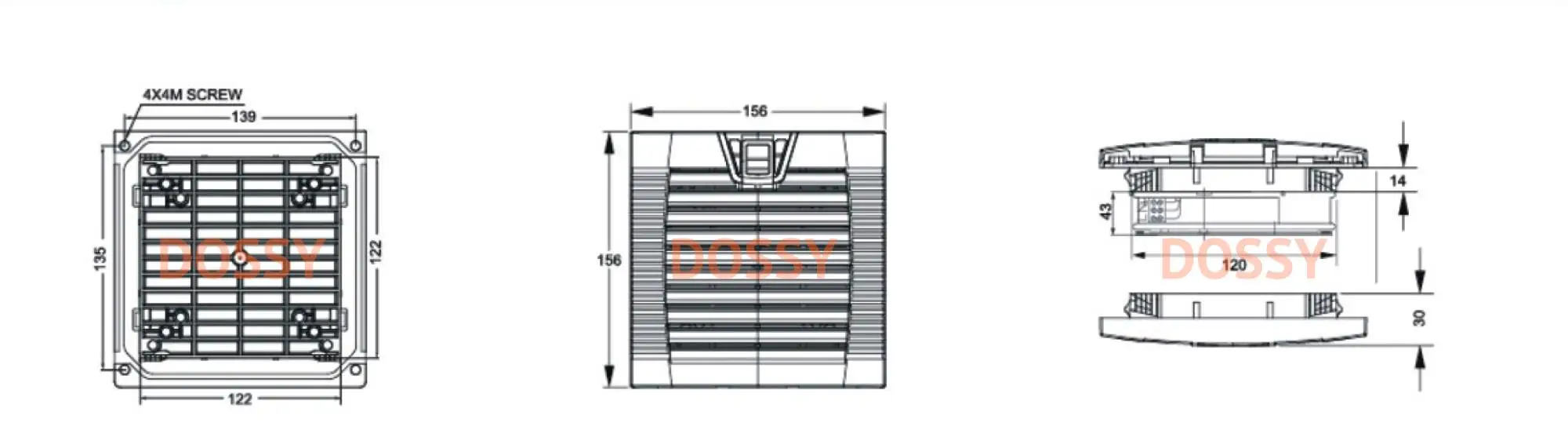

P/N	Model	outline size	Panel hole size	Fan code	Voltage (V)	Freq(Hz)	Air volume m3/min	Noise (dB)
PF9003	DS9803	156x156x30mm	122x122mm	None	None	None	None	None
PF9803S1225L11	DS9803	156x156x30mm	122x122mm	AF1225S11L	110V	50/60	85	32
PF9803B1225L11	DS9803	156x156x30mm	122x122mm	AF1225B11L	110V	50/60	90	32
PF9803S1225L22	DS9803	156x156x30mm	122x122mm	AF1225S22L	220V	50/60	85	32
PF9803B1225L22	DS9803	156x156x30mm	122x122mm	AF1225B22L	220V	50/60	90	32
PF9803S1238L11	DS9803	156x156x30mm	122x122mm	AF1238S11L	110V	50/60	138	39
PF9803B1238L11	DS9803	156x156x30mm	122x122mm	AF1238B11L	110V	50/60	148	39
PF9803S1238L22	DS9803	156x156x30mm	122x122mm	AF1238S22L	220V	50/60	138	39
PF9803B1238L22	DS9803	156x156x30mm	122x122mm	AF1238B22L	220V	50/60	148	39
PF9803S12387L11	DS9803	156x156x30mm	122x122mm	AF12387S11L	110V	50/60	160	43
PF9803B1238711L	DS9803	156x156x30mm	122x122mm	AF12387B11L	110V	50/60	172	43
PF9803S1238722L	DS9803	156x156x30mm	122x122mm	AF12387S22L	220v	50/60	160	43
PF9803B1238722L	DS9803	156x156x30mm	122x122mm	AF12387B22L	220v	50/60	172	43

Technical Parameters

Model No.Fan and Filter Unit	DS9803.230	DS9803.115	DS9803.024
Rated operating voltage V,Hz	230V AC, 50/60Hz	115V AC, 50/60Hz	24V DC
Air throughput, unimpeded air flow	65/85 m3/h		85 m3/h
Air throughput with outlet filter including standard filter mat	1x DS9803.300: 55/70 m3/h
Axial Fan	Self-starting shaded pole motor		DC motor
Rated current max.	0.12/0.1A	0.24/0.2A	0.35A
Power	19.0/14.0 W		7.7 W
Noise level	36/40 dB(A)		40 dB(A)
Temperature range	-10 to +55℃
Color	Standard RAL7035, other color can customized.
Protection category to EN 60 529/09.2000	IP 54 standard IP56 when using a hose-proof hood
Model No. outlet filter	DS9803.300
