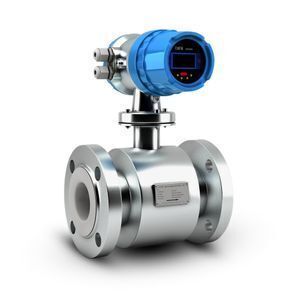

Digital water electromagnetic flow meter sewage magnetic flowmeter

Supplier: Henan Dafang Dingsheng Flow Instrument Co., Ltd.
Region: Henan, China
Contact: Mr Gavin Shao
Price: $325.00 /set
Min. Order: 1 set

Click here to contact

Product details

Product Name:	water flowmeter;	Power supply:	220VAC~24VDC;
Brand Name:	DFDS;	Supply Ability:	1000.0 Set/Sets per Month water flowmeter;
Output signal:	Pulse / 4~20mA / RS485 / HART;	Communication:	RS-485/ Hart;
Accuracy:	1.0%;	Packaging Detail:	wooden case;
Size:	DN15~300;	Display:	LCD;
Model Number:	DFLD;	Place of Origin:	Henan China;
Material:	Stainless Steel;	Package Preview:	;
Type:	Flow meter,Variable Area Water Flowmeters;	Port:	QINGDAO, TIANJIN, SHANGHAI, ECT;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;	Name:	waste water electromagnetic flowmeter for standard water applications;

Product Description

DFDS-YGD Integrated Type

Carbon steel

The raw material of the main body is made of GB/T699-88 carbon steel, anti-rust paint spraying process, special requirements, paint color can be Customized.

Stainless steel

The raw material of the body shell is made of stainless steel (SUS316 and SUS304 are optional), and the mirror surface is polished.

Related types

Technical performance parameter

Nominal Diameter	DN10~DN3000mm
Nominal Pressure	0.6~4.0MPa (Higher Pressure can be customized)
Main Power	AC220V 50Hz / DC24V / 3.6V
Language	English, Others can be customized.
Display	Instantaneous flow, flow unit, cumulative flow
Unit	Liter, m³, Gallon (Optional).
Accuracy	±0.5%, ±0.3%
Output Signal	RS485 / 4-20mA / Pulse / Analog
Communication	RS232, RS485 (MODBUS), HART is optional
Lining Material	Neoprene, Polyurethane Rubber, PTFE, F46, PFA
Electrode Material	SUS316, HB, HC, Titanium, Tantalum, Platinum-iridium alloy, Wolfram
Medium Temp.	-20°C ~ +180°C
Ambient Temp.	-25°C ~ +60°C
Medium Electrical Conductivity	≥5us/cm
Measuring Range	1500:1, flow rate<15m/s
Protection Class	IP65, IP67, IP68 (Optional)
