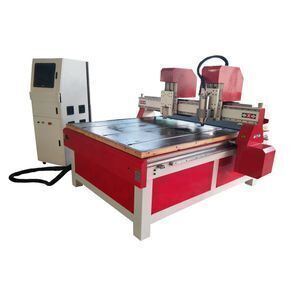

Shape glass and mirror automatic cnc cutting table machine for sale

Supplier: Jinan Artech Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Leon Xu
Price: $3500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	CE;	Place of Origin:	Shandong China (Mainland);
Port:	QINGDAO, ETC;	Voltage:	380V 50HZ;
Weight:	900kg;	worktable height:	870±10mm.;
Power(W):	3kw;	power supply:	3~380V/50HZ;
Packaging Detail:	Standard export wooden box;	Usage:	glass cutting;
cutting thickness:	1-19mm;	Dimension(LWH):	185016501250(mm);
Production Capacity:	1-19mm;	Brand Name:	ARTECH;
Machine Type:	Glass Cutting Machine;	Payment Terms:	L/C,T/T;
control system:	NC studio;	cutting speed:	0~130m/min;
Product name:	Shape glass and mirror automatic cnc cutting table machine for sale;	Diagonal accuracy:	≤±0.25mm/m;
Supply Ability:	300 Set/Sets per Month;	Warranty:	1 year;
Condition:	New;	After-sales Service Provided:	Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
Linear parallelism:	≤±0.10mm/m;	Glass thickness:	0.5-15mm;

Product Description

This machine use for glass cutting from 1-19 mm. It can meet the cutting requirements for different kinds of glass such as architectural glass, cosmetic mirror glass, furniture glass, spell mirror glass, round glass, watch glass, craft glass, etc.

Working area (X*Y)	1300*1300mm (Can be customized)
Body structure	Thicken steel made
rails	Hiwin square rails
Cutting heads	1 head ( Can be customized 1-12 heads)
X, Y Resolution	<0.01mm
Max Moving Speed	40000mm/min
XYZ traveling positioning accuracy	±0.01mm
XYZ repositioning accuracy	±0.01mm
Voltage	AC 110/220/380V
Drive type	Leadshine stepper motors and drivers
Working Dictate	G Code,uoo,mmg,*plt
Operating system	NC-studio control system
Auto oil lubricator	included

Main Features

- Cutting pressure automatic adjusted according to glass thickness.
- Cutter head 360 degree rotating.
- Climbing wheels on the cutter head for protecting the cutter assembly and the glass.
- Water proof surface panel, stainless steel side covered, water and deformation resisting
- High quality felt, perfect level, anti-static
- Self-lubricating guide rail
- Air filter for keeping the oil clean
- Air float and belt transmit
- Linear guide rail
- Automatic oiling for transmission system

Option function
Glass automatic typesetting system:You just need to input the shape, dimension ,number ,system will automatic typesetting optimization.
Glass special-shaped automatic scanning system:You just need to put the samples of graphics on the machine table, the system will automatically scanning, and type-in the graphics into the computer.

Multi cutting heads: multi heads working at same time, improve the working efficiency

Sample picture

ARTECH 8080

ACCEPT CUSTOMIZE

ARTECH 2520

ACCEPT CUSTOMIZE

ARTECH 1313 MULTI-HEADS

ACCEPT CUSTOMIZE

Our Service

GUARANTEE

1 year guarantee for whole machine from production date (except consumable parts) Within guarantee under normal use and maintenance, if something is wrong with the machine, you will get spare part for free.

TECHNICAL SUPPORT

Technical support by phone, email, whatsapp and Skype. Friendly English manual and operation video CD disk. Engineer available to service machinery overseas. You will also get technical support and service all the lifetime.

AFTER SALE SERVICES

Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine. You will be able to get free training advice towards our machine in our factory.

Packing & Delivery

Packaging
Size	upon real model and configuration
Weight	upon real model and configuration
Packaging	standard export wooden box
Delivery	normally 3-20 days after receiving deposit, detail delivery date should be decided according to production season and order quantity.

Our Company

ARTECH is comprehensive in the production, design, manufacturing, trade and service of CNC machines, and provide high quality and good efficient CNC machines worldwide. our main product are CNC router machine, Laser cutting engraving machine, Laser marking machine , CNC plasma cutting machine and CNC glass cutting machine. With a strong staff team, "Brand ArtechCNC" gained success in woodworking engraving machine, advertising engraving machine, stone engraving machine, metal engraving machine, laser engraving machine and laser cutting industry equipment.

CNC MACHINE WORKSHOP

LASER MACHINE WORKSHOP
