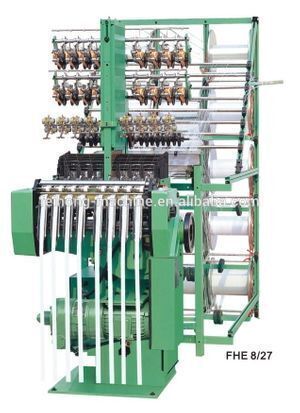

High Speed Narrow Fabric Weaving Shuttleless Loom Machine

Product details
Place of Origin:Guangdong China;Certification:CE;
Payment Terms:L/C,T/T;Dimension(L*W*H):1600x900x1900;
Delivery Detail:30 days;Warranty:1 Year;
Model Number:FHE;After-sales Service Provided:Overseas service center available;
Voltage:380V, 440V;Brand Name:Feihong;
Condition:New;

Model

Production
Line

Max. Reed Size

Heald Frame

Pick Density

Speed RPM

Motor

FHE4/65

4

65mm

16-20

8-48

1000-1500

2HP

FHE6/45

6

45mm

16-20

8-48

1000-1500

2HP

FHE8/27

8

27mm

16-20

8-48

1000-1500

2HP



Application:

To produce various narrow elastic, non-elastic fabric and decorative items (Bra strap, ribbon and the other light duty tapes.



Features:

High speed, solid build, calm transmission, low noise

Using a double motor fitting allows a quicker and easier setting.

Automatic lubricating system, reduce the manual maintenance.

Best feeding weft yarn for more stable and uniform weft feeding

Professional after sales service



Additional setting available:

Automatic rubber feeding device

Double hook and double / single needle

Back feeding device
