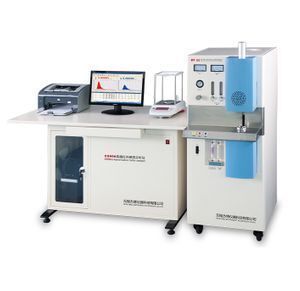

CS996 High-Frequency Infrared Carbon Sulfur Analyzer

Click here to contact

Product details

Item:	carbon sulfur analyzer;	Packaging Detail:	Standard export package Gross weight: 330Kg Dimension: 1.8CBM;
Port:	Shanghai;	Model Number:	CS996;
Place of Origin:	Jiangsu China;	application:	metal, ore, soil, rock etc.;
Supply Ability:	20.0 Set/Sets per Month;	Brand Name:	JB;
analysis principle:	infrared absorption;	Payment Terms:	L/C,T/T,Western Union;

Product Description

Production Description

CS996 High-frequency Infrared Carbon Sulfur Analyzer can determine the percentageof Carbonand Suflur in
steel , iron , alloy , nonferrous metal , cement , mineral , glass and other materials.
frequency Infrared Carbon Sulfur Analyzer can determine the percentage of Carbon and Suflur in steel , iron , alloy , nonferrous metal , cement , mineral , glass and other materials.

Main Features

The whole machine adopts the modular design. The electronic circuits is highly integrated, stable and reliable.
Adopt high speed sampling chip with high precision and fast.
The main unit and computer use USB2.0 interface communication which greatly improve the speed of communication.
The infrared detection unit connect with high frequency furnace by high-speed optical fiber (patent) which thoroughly to eliminate the high frequency interference.
The new infrared light source which is fever continuously and high efficiency spectrum.
Adopt gold plated carbon sulfur analysis pool and high-precision infrared detector.
Automatic leak detection for pneumatic system with alarm function.
High precision flow controller guarantee the stability of air flow and inlet gas circuit system.
Amd hole metal filter which ensure the complete separation of dust and gas.
Automatic cleaning and ash discharge system which thoroughly clean the pipe and reduce dust on the result of analysis.

Technical Parameters

Main Technical Parameters
Analysis elements:	Carbon and Sulfur
Analysis principle:	High-frequency furnace combustion and Infrared absorption detection
Analysis range:	C: 0.0001%-10.0000% S: 0.0001%-2.0000% ( can extend to 99.999% )
Sample weight :	0.5g
Analysis precision:	C: accordance with ISO9556 S: accordance with ISO4935
Sensitivity :	C/S 0.1ppm
Analysis time:	20~100 seconds adjustable ( normally 35 seconds )
Working period:	24 hours
The working conditions:	220V/50Hz, Temperature 10-30℃, humidity <75%
High-frequency furnace:	Output power: 2500 W, Frequency: 20 MHz
Spare parts:	Available for 2000 times testing
The warranty:	Two years

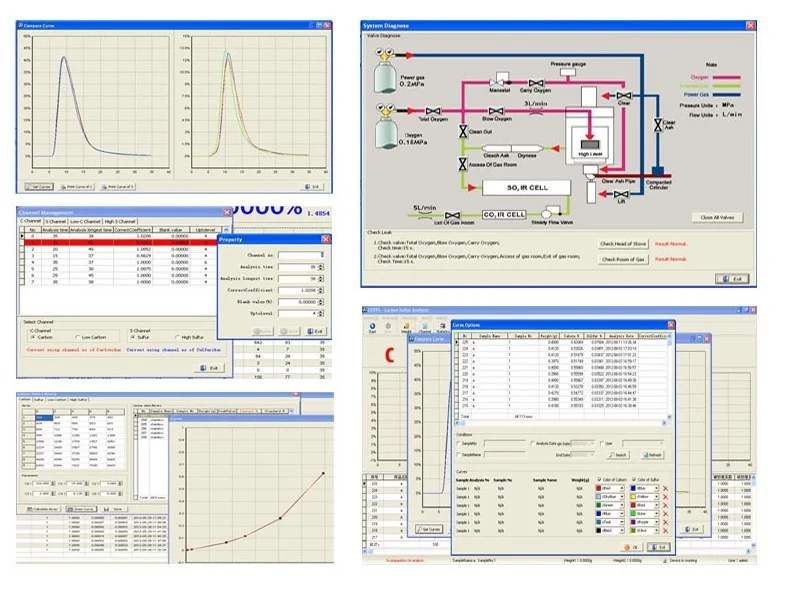

Analysis software
Operation software:	Adopt Deiph software compilation, WIN7 English operating software.
User management:	User account password protection, support the user to add, delete, permissions Settings, and other functions.
Display function:	carbon and sulfur with two curves, dynamic display of the real-time data process.
Data processing:	The results using ACCESS database storage that can store all data and curve analysis each time.
	Random analysis results inquiries which can according to the time, operator, sample name, logo etc.
	Supply curve/data storage, parameter setting, channel selection, mathematical statistics, results correction, curve comparison etc.
	It can be implemented carbon sulfur work curve and curve fitting in the software.
Printing function:	Provides both laboratory and testing station print mode, and can design the print format.
Diagnosis function:	It can detect the sealing of burner and chamber.by the software.
