line array speaker quick release pin with lanyard

Product details
material:304/306/316 stainless steel;Place of Origin:Guangdong China;
payment terms:T/T, paypal, western union, etc;service:OEM ODM;
Packaging Detail:bubble packed individually then put in carton to prevent from damaging and scratches in transporting.;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;
Certification:ISO9001:2008, TS16949, ISO13485, etc;Delivery Detail:Shipped in 15-25 days after payment;
delivery time:15-25 days;Supply Ability:100000 Piece/Pieces per Month;
shipping:DHL, UPS, FEDEX, TNT, etc;color:silver;
Model Number:OEM;Brand Name:HKAA;
Product name:quick release pin;Size:customized;
surface treatment: polish/anodizing/plated;Port:shenzhen;
Product Description

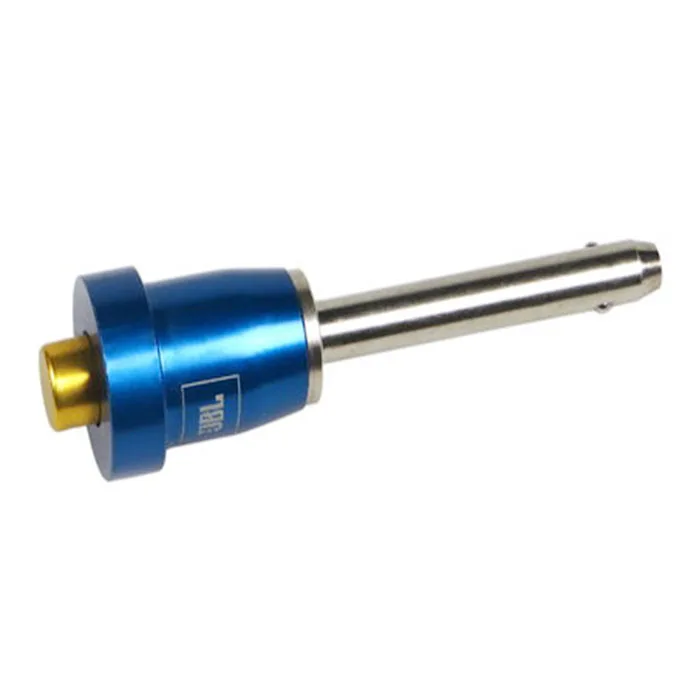

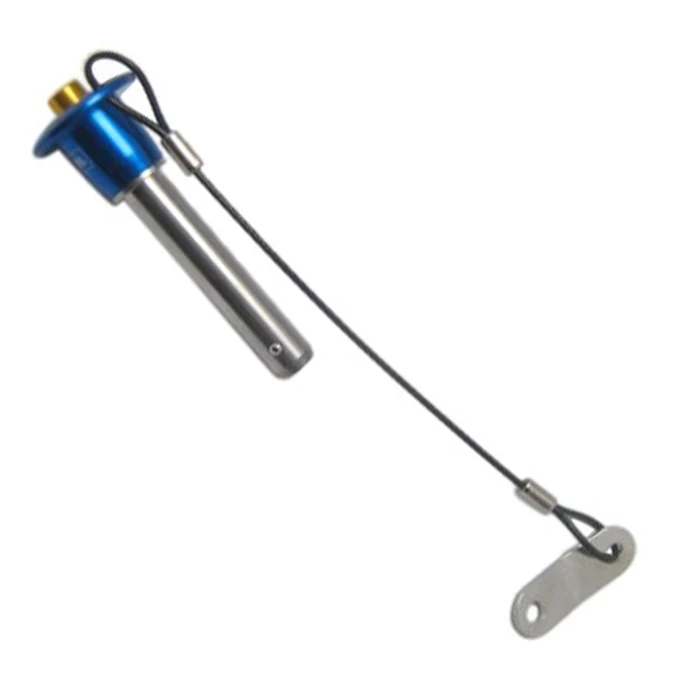

line array speaker quick release pin with lanyard



Material:       (Each Parts module )



Body :SUS304 (Stainless Steel)   Spindle: SUS304 (Stainless Steel)   Button: HPb59-1(Brass)  Spring :SUS304 (Stainless Steel)

Handle: ADC10.1(Casting Aluminium)  Collar :SUS304 (Stainless Steel)   Balls : SUS440C (Stainless Steel) Button:gold anodized Aluminum Head:Blue anodized aluminum



Quick release pin,ball lock pin,detent pin,self lock pin,positive lock pin is used for all kinds of quick dismantling & fitting while needing to repeat positioning accuracy.



Features:



1.It can be Auto-defense and make the ball of the pin head be retractable by pressing the button of the handle, at this time you can let the quick release pin be passed through the pin hole quickly ;



2.When you release the button, the ball will pop-up , quick release pin will can't be pull-out;



3. High precision, The tolerance of diameter and grip length are very strict;



4. The coverage of application is wide, according to the environment you can choose to use high-strength alloy steel and stainless steel material;



5. According to the space conditions of handle you can choose L-handle, T-handle, Button handle,taper head, Marine handle or Ring-handle and so on.



6 ball pin can be matched with bushing .





Our quick release pin,ball lock pin,detent pin,self lock pin,positive lock pin can be provided various forms of handle, and all kinds of specifications of metric and inch . The leadtime is very short. We can make cusomized pin accoeding to your drawing and requirements, and also we have a technology department, the ministry of research design, a fully furnished equipment. we are standby to provide sample testing and quality services to our clients.we can provide sample for you testing if you need large quantity.





















Company Information


Specialty Hardware Manufactory!

Surface: customer requirement

Material: steel /stainless steel/ aluminum / brass / iron / zinc / alloy ,Any other material and dimension depends on customers' demand.

Usage: machinery / furniture / toy / woodboard / wall

Manufacturing process: casting parts

Euipment: casting machine

Testing equipment: projector

Tolerance:+/-0.05MM

 We are willing to provide with sample for quality and function testing.

We are ISO 9001: 2008 certified firm.



HK AA Industrial Co.,LTD
HA AA was founded in 1998, covering an area of 11,000 square meters and 110 workers . 80% of our products are sold to oversea market such as Germany,UK,France, Italy,USA, Canada,Australia,Japan,South Korea etc. We are ISO 9001:2008,TS16949 certified company. Our products are widely used in medical,military,agriculture,marine,industry, hydraulic,auto,motorcycle,electron,optics,inst rument,communication,nuclear,chemical, Petrochemical,Energy,food industry etc.
Our machines:
50 CNC turning machines from Japan with FANUC system,
32 CNC milling machinee from Taiwan with Mitsubishi System,
10 stamping machines and 6 hobbing gear machines
1 Mazak machine











Inspection equipment

 CMM from Hexagon

2.5 dimensional full automatic detection instrument

Projector

1 Concentricity tester

2 Roughness tester

3 Tensile tester

4 Salt spray tester

 other basic inspect tooling like  Calpers, Micrometer, Height gauge, Pin gauge, Thread gauge, Slot card and so on.









Inspection equipment:Our detecting instruments as:
Certifications

Our Certifications



Our Services



Industry Focus

Appliance/ Automotive/ Agricultural

Electronics/ Industrial/ Marine

Mining/ Hydraulics/ Valves

Oil and Gas/ Electrical/ Construction

Intended Application

Shafts

Valve Components

Automatic Door Components

Cable/ Electronic Connector

Fire Suppression System Components

Fittings/ Fasteners

Gears/ Hardware

Roller Bearings

Lead Times Available



Max: 2 Weeks (On Initial Order)

Rush Services Available

Industry Standards

ISO 9001:2008

PPAP

RoHS Compliant

Additional Capabilities

CAD Design Services

CAM Programming Services

Coordinate Measuring Machines (CMM)

Reverse Engineering

Equipment List

From simple 2-axis turning to 7-axis, turn-mill-drill CNC Swiss-type machines, we are equipped with a full line of CNC equipment from the following manufactures:

molding machines/ stamping machines

automatic lathe machines/ spring machines.

Automation Capabilities

Continuous Machining

Material (Metals)

Alloy Steels/ Aluminum/ Brass/ Bronze Alloys

Carbon Steel/ Copper/ Stainless Steel/ Tool Steel

Cold Rolled Steel/ Bearing Steel

Material

(Plastic Polymers)

ABS/ Delrin/ Nylon/ PVC

Processes

(Special Capabilities)

Broaching/ Hobbing/ Slotting

Tolerance

±0.0002 in

±0.0051 mm



Packaging & Shipping

 Packaging

Shipping

1. We are willing to provide with sample for quality and function testing.

2.  Delivery time:within 20 working days .
FAQ

Q1:How to guarantee the Quality of Industrial Parts?

A1:we are ISO 9001-2008 certified firm. we have the integrated system for industrial parts quality control. We have IQC (incoming quality control), IPQCS (in process quality control section), FQC (final quality control) and OQC (out-going quality control) to control each process of industrial parts prodution.



Q2:What's the Advantage of Your Parts for Industry Products?

A2:Our advantage is the competitive prices, fast delivery and high quality. Our employees are responsible-oriented, friendly-oriented,and dilient-oriented. our Industrial parts products are featured by strict tolerance, smooth finish and long-life performance.



Q3:what are our machining equipmengts?

A3:Our machining equipments include CNC milling machines, CNC turning machines, stamping

machines,hobbing machines, automatic lathe machines, tapping machines, grinding machines,

screw machines, cutting machines and so on.



Q4: What shipping ways our use?

A4:Generally speaking, we will use UPS or DHL to ship the products. Our customers can reach the

products within 3 days.
If our customers do not need them urgently, we will also use Fedex and TNT.
If the products are of heavy weight and large volumn, we will ship them by sea. This way can save

our customers a lot of money.



Q5:Who are our main customers?



A5:HP, Samsung, Jabil Group,Lexmark,Flextronic Group.



Q6:What materials can you handle?

A6:Brass,bronze,copper,stainless steel, steel,aluminum,titanium And plastic.



Q7:How Long is the Delivery for Your Industrial Part?

A7:Generally speaking, it will take us 15 working days for machining parts and 25 working days for

the for stamping parts products. But we will shorten our lead time according to customers' demands

 if we are able to.
