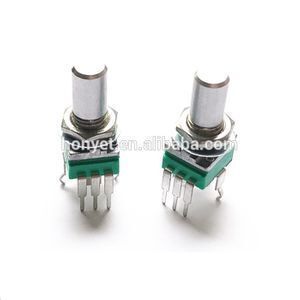

Hot sale shaft dia 6.35mm ,full shaft 9mm rotary potentiometer

Product details
Residual resistance:Max :20Ω;Max. Operating Voltage:AC 50V;
Resistance:A1M,B100K,B10K;Resistance Tolerance:20% / 10%;
Insulation resistance:Min:100MΩ at 250V DC;Technology:Carbon Film;
Selling Units:Multiple of 500;Total resistance:500Ω~2M;
Gross weight per batch:5.0 KG;Type:Rotary Potentiometer;
Model Number:RV9312 B10k;Slider noise:Less than 100mV;
Place of Origin:Guangdong China;Withstand Voltage:1 minute at AC 300V;
Rotation stopper strength:5.0Kgf.cm;Total rotation angle:300±5°;
Rotation life:10000cycles;Packaging Detail:Plastic tray +carton;
Number of click:Center click or 5clicks or 11clicks or 41clicks;Operating Temperature:-20~+70;
Brand Name:HongYuan;Rated Power:0.025W~0.05W;
Package Preview:;Package size per batch:31X19X18 cm;
Rotational torque:10 ~200gf.cm;

Hot sale shaft dia 6.35mm ,full shaft  9mm rotary potentiometer



Product Description

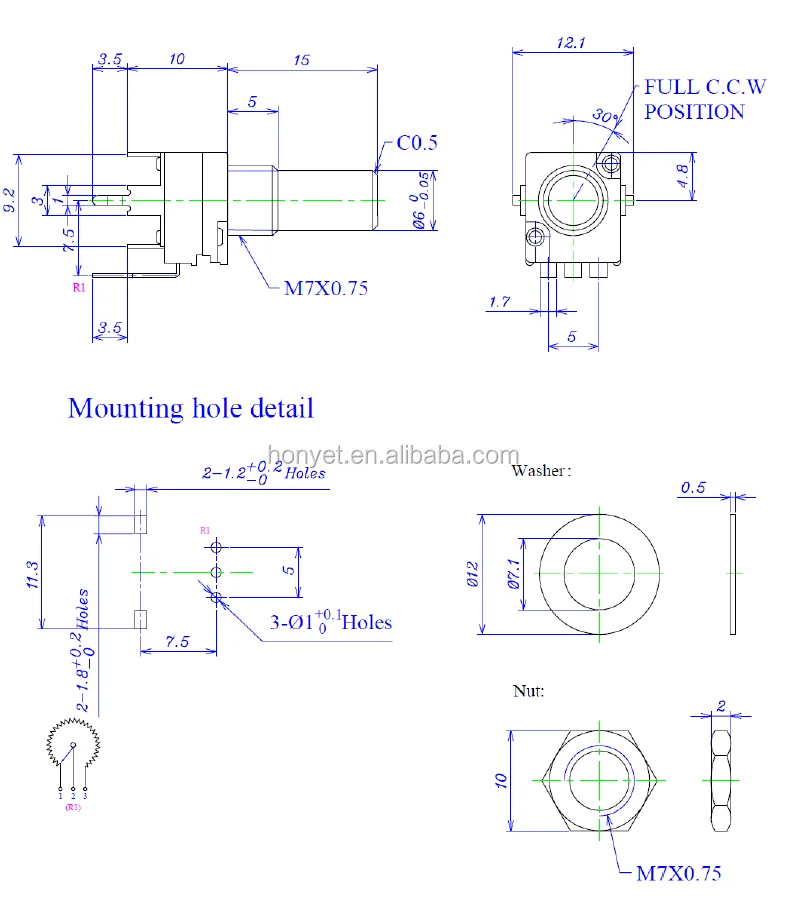

 Shaft dia 6.0mm

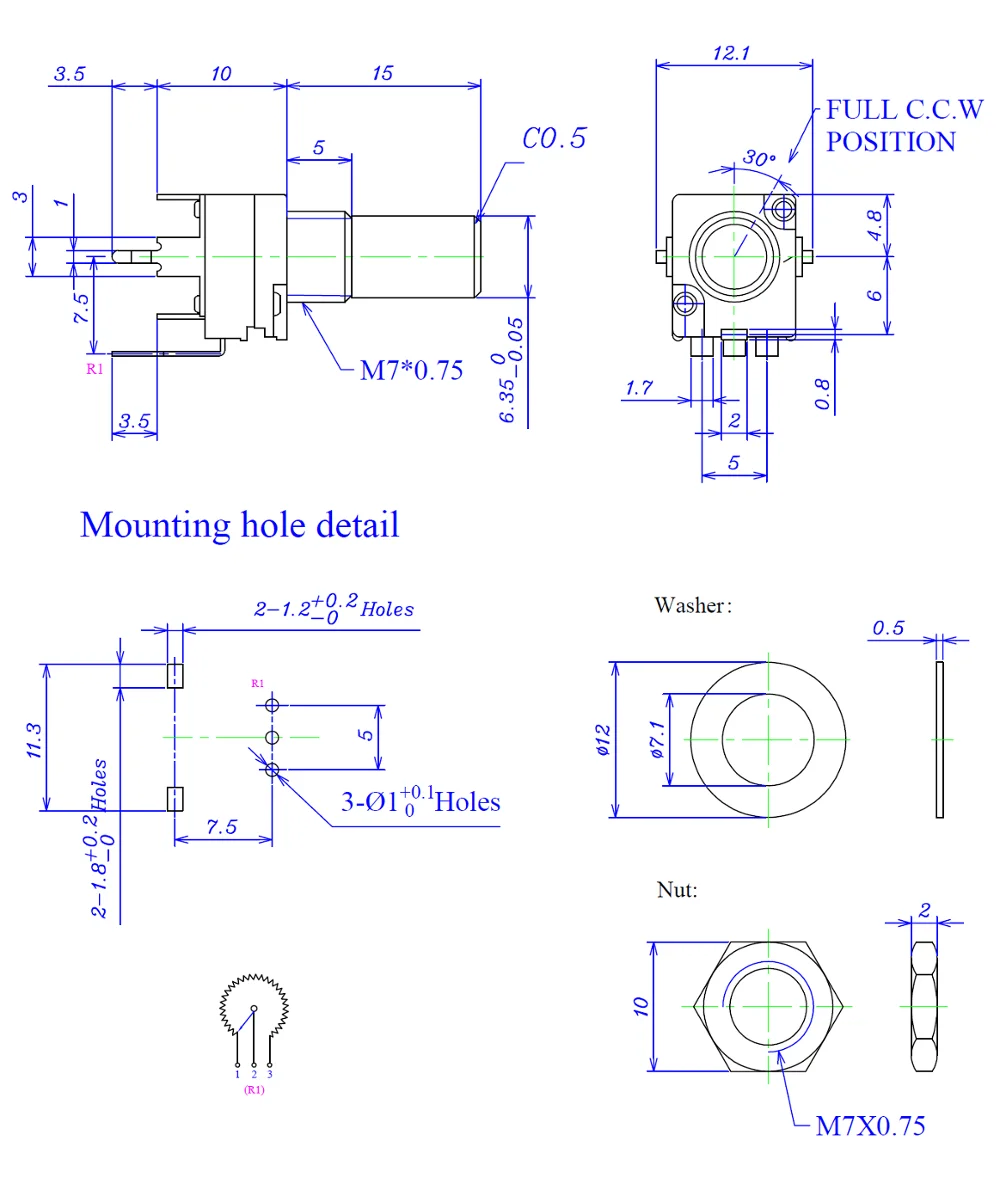

 Shaft dia 6.35mm
