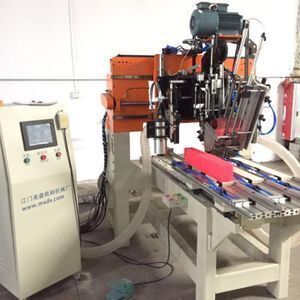

CNC new condition high speed 2 axis 2 drilling 1 tufting wood brush making machine industrial brush flat brush making machine

Click here to contact

Product details

Port:	FOB Shenzhen/ Guangzhou/ Jiangmen;	Application:	make flat brush;
Place of Origin:	Guangdong China;	Dimension(LWH):	120017001800mm;
Voltage:	220/380 V;	Brand Name:	Meixin;
Condition:	New;	Weight:	900 KG;
Package Preview:	;	Supply Ability:	300 Set/Sets per Year;
Power(W):	1.5 KW;	Warranty:	1 Year;
Certification:	CE;	After-sales Service Provided:	Engineers available to service machinery overseas;
Packaging Detail:	wooden box packaging;	Production Capacity:	4~6 holes/ second;
Automatic Grade:	Automatic;	Payment Terms:	L/C,T/T;

Description:
Model	MX-2ADT002
NO. of axis	2 axis
Qty of heads	2 drilling and 1 tufting
Application	Flat brush
brush types	Flat brush ,strip brush
Brush base materials	Plastic, wood
Filament materials	PP,PET, Nylon,animal hair plant fiber etc.
The mold fixture size	300*50mm
Diameter of hole	4~6mm
The length of filament(outside the hole)	15~200mm
Colors of Brush Filaments	2 colors
Parameter:
Drilling and tufting Speed	4~6 holes/sec.
Power voltage, frequence	220/380v , 50/60HZ (customer choose)
Main motor power	1.5kw
Air Source Input	0.4~0.5Mpa
Equipment size	120017001800mm
Weight	900kg
Electrical parts:
Control System(PLC)	MEIXIN Chinese and English version
Touch screen	MEIXIN Chinese and English version
Main motor	SNMA
Servo motor	Maxsine
Relay	IDEC (Janpan)
Variable-Frequency	DELTA (Taiwan)
Safety Protection:	Schneider (France brand)
