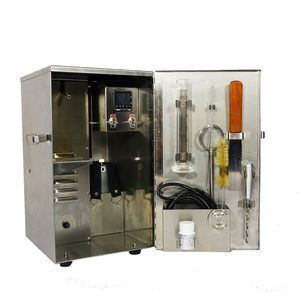

Model ZNG-1A 50ml External Heating Drilling Fluid Oil Water(Solid) Separating Device Retort Kit

Supplier: Qingdao Haitongda Special Instrument Co., Ltd.
Region: Shandong, China
Contact: Ms Lily Wang
Price: $650.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 year;	Place of Origin:	Shandong China;
Usage:	oil water sepearating;	Heating method:	external heating;
Brand Name:	haitongda;	maximum heating temperature:	500 celius;
Payment Terms:	T/T;	Model Number:	ZNG-1A;
Package:	wooden case;	Material:	stainless steel;
Port:	Qingdao;	Capacity:	50ml;
Supply Ability:	1000 Set/Sets per Year;	Application:	ISO 9001:2005;
Packaging Detail:	wooden case;

Product Description

1,Introduction

The instrument provides a means for separating and measuring the volumes of the water and solids contained in a sample of drilling fluid. The equipment is heated by outside device.50ml of drilling fluid is heated to vaporize the liquid component which are then condensed and collected in a graduated cylinder. Calculations can be to determine the quality of water and solids or the volume percentages of them. For heated by the outer, the test accurate is increased compared with 20ml retort. Avoid over heating by inside heater. Retorts are easy to operate, used to the lab and locale widely. It is base to understand the concentration of solids and the conglutination of drilling fluid. The characteristic of retort provided with configuration easily, operation conveniently, which is the perfect special instruments used to the lab and locale widely.

2,Type Specification

Model	Name
ZNG-1A	Oil & Water Retorts

3,Technical Specification

No.	Technical Specification
1	Power supply	AC 220V±5% 50Hz
2	Rated power	1000W
3	Heating method	Outside the heating
4	The distillation body capacity	50±0.2ml
5	The recovery rate of the liquid	≥98%
6	Maximum heating temperature	500℃
7	Net weight / Gross weight	15.92kg/22.76kg
8	Overall dimensions	236×255×420mm
9	Packing size	600×340×385mm

Company Information

HOT SALE:

Certification:

Team: Workshop:

Packaging & Shipping

Warehouse:

FAQ

Q1 : Are you a manufacturer or a trading company ?
A1: We are manufacturer.
Q2: What is your main brand?
A2: Our brand is Haitongda, which is famous in China and other nation. Also we do OEM.

Q3: What are your business scope and product classification?

A3:Business scope: mud analysis instrument, electronic products, special instrument, mold design and manufacturing; Instrument maintenance and sales; Import and export of goods and technologies.

Product classification: including drilling fluid analysis instrument, oil well cement testing instrument and field overall solution, including 22 small categories and over 120 products.
Q4: What is your MOQ for the order?
A4: Testers per 1 set.
Q5: What is the warranty period of your instrument?
A5: One year.
Q6: Can I get better offer if our order can be bigger?
A6: Certainly. We will give you better prices based on the quantity for your order.
Q7:What certificate do you have for your instrument?
Q7: ISO, SGS and so on
Q8: What is your lead time for our order?
A8: For new order: 3 weeks;

For stock order: 3 working days after T/T. Based on FOB Qingdao.
Q9: What is your advantage of your factory?
A9: We are the original oil ministry designated drilling fluid analysis equipment manufacturer in China, which was founded in 1968.
Q10: What is the process to become an agency?
A10: Please send us mail enquiry, then we will reply you as soon as possible.
