1080P HD HDMI Video Capture Card USB 2.0 for Game / Video Live Streaming

1080P HD HDMI Video Capture Card USB 2.0 for Game / Video Live Streaming

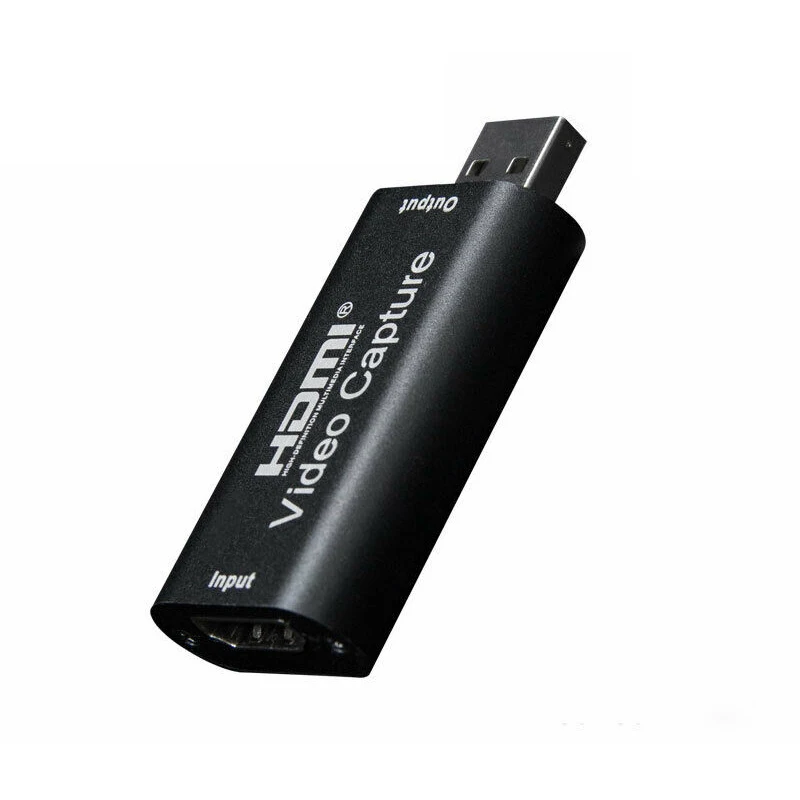

Product Introduction:

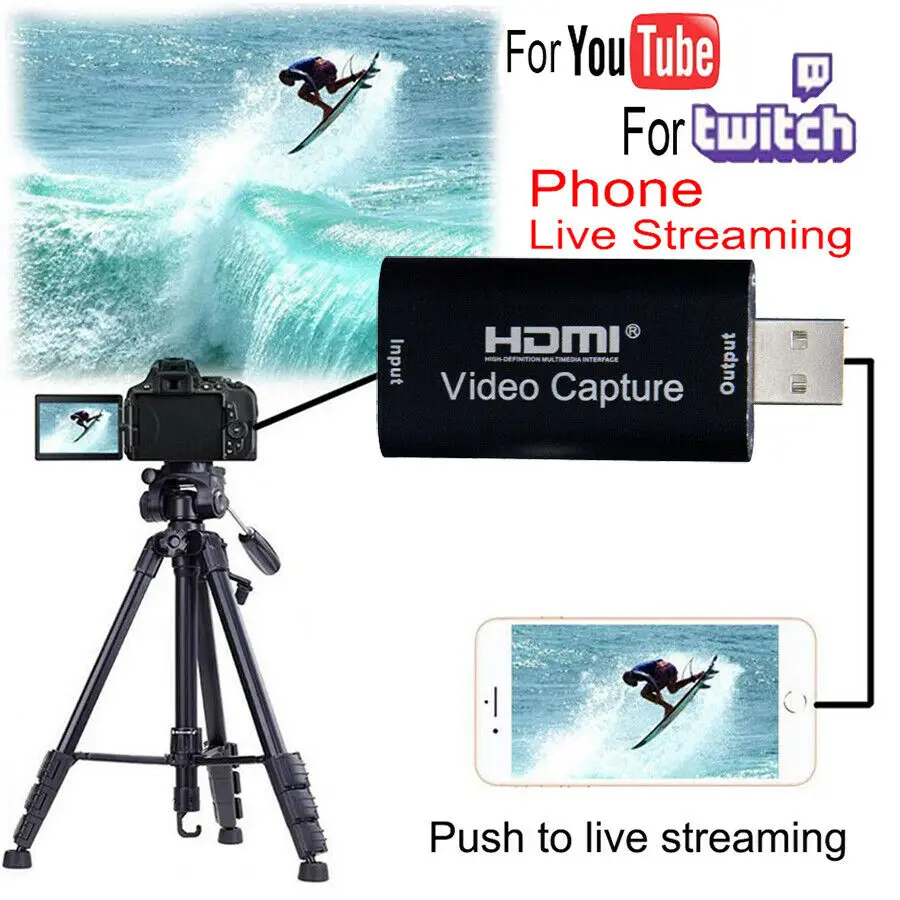

This USB 2.0 capture card can capture HDMI video and HDMI audio at the same time, and can transmit audio and video signals to a computer or smartphone for preview and storage. Suitable for high-definition acquisition, teaching recording, medical imaging, etc.

Features:

Support maximum input resolution up to 4K;
Support maximum output resolution up to 1080P;
Support 8/10/12 bit color depth;
When using standard AWG26 cable, the input transmission distance is up to 15 meters (1080P and below resolution);
Support most acquisition software, such as VLC, OBS, Amcap, etc .;
Support Windows, Android and MacOS;
Comply with USB video UVC specifications;
Conforms to USB audio UAC specifications;
No external power supply is required, so it is compact and easy to carry.

Product Specifications:

HDMI Resolution: Max input can support 3840×2160@30Hz / 4K
Video Output Resolution: Max output can be 1920×1080@30Hz
Video Input Format: 8 / 10 / 12-bit Deep Color
Video Output Mode: YUV / JPEG
Support Audio Format: L-PCM
Support AWG26 HDMI Standard Cable: input ≤15 meters, AWG26 HDMI standard cable.
Maximum Working Current: 0.4A / 5VDC
Operating temperature range: (-10 to + 55 ℃)
Dimension (L x W x H): 64x28x13 (mm)
Weight: 35g

Packaging Includes:

1 * Audio Video Capture Cards
1 * User Manual
