3G SDI to HDMI Converter Mini 3G HD SDI to HDMI Converter for SD HD and 3G SDI CCTV signals

Supplier: Shenzhen Just Link Tech Co., Ltd.
Region: Guangdong, China
Contact: Mr Anthony He
Price: $21.55 / 1 - 49 pieces
$20.55 / 50 - 499 pieces
$19.55 / 500 - 1999 pieces
$18.95 / >=2000 pieces
Min. Order: 1 piece

Click here to contact

Product details

Packaging Details:	Each color box, 50 pcs/carton	Packaging Preview:
aspect:	80(W) x 41(D) x 25(H) mm	brand:	JustLink
Sales unit:	single product	Certification:	CE FCC RoHS
Operating temperature:	0°C ~ 40°C / 32°F ~ 104°F	enter:	1 x BNC (SDI/HD-SDI/3G-SDI)
Warranty:	1 year	Private model:	Yes
SDI transfer rate:	2.970 Gbit/s and 2.970/1.001 Gbit/s	Certification:	CE FCC ROHS
Gross weight per piece:	0.300 kg	model:	JL-C9022
power supply:	DC 5V -12V	output:	1 HDMI
place of origin; place of origin:	Guangdong, China	Weight / grams):	150 grams
Single package size:	12X10X6 cm

Product Description

3G SDI to HDMI Converter 1080P

3G SDI to HDMI Converter Designed for professional SMPTE video applications, this 3G SDI to HDMI converter makes it easy for you
Show off your work on popular HDMI displays. Loop-through design also allows you to view original SDI content on SDI
Monitor and HDMI monitor at the same time. The converter supports bit rates up to 2.970 Gbps and supports SD-SDI, HD-SDI and
3G-SDI video signal.

feature

SD/HD/3G-SDI Input: SDI to HDMI mini converter for almost all 3G/HD SDI gear like Blackmagic Design ATEM
STUDIO,RED Scarlet, BMD Atem, Security Camera, Capture Card, Campus TV network, DVR etc
· HDMI and SDI loop output: Supports 1 HDMI output and 1 SDI loop output, and the transmission data rate is up to 2.97Gbps. Support 8
48KHz digital audio sample rate channel
Support for SD and HD signals: Convert SDI to both HDMI and SDI or separately, support
1920x1080P@60Hz, 1920x1080I@60Hz, 1280x720P@60Hz
Automatic input signal detection: supports automatic detection of SD or HD, supports 10-bit color depth, as SDI repeater and expander
With Re-clock function, support multi-cascade
Broadcast quality: durable metal body, anti-corrosion and anti-rust, no static noise problems. Excellent thermal radiation retention
favorable operating temperature. Bolt and retaining ring design makes it ideal for industrial applications

Specification

1. SDI video input: 1xSD, HD or 3G-SDI
2. Video output: 1xHDMI Type A out (1080P@60Hz), 1xSDI loop output
3. Input audio signal: SDI embedded
4. SDI input resolution:
720p@30, 50 and 60Hz
1080i@50, 60Hz
1080P 24, 25, 30, 50 and 60Hz
5. HDMI output resolution:
720p@52,60Hz
1080i@50, 60Hz
1080P 24, 25, 30, 50 and 60Hz
6. SDI data rate: 270Mb/s, 1.485Gbps, 2.97Gbps
7. Single-channel SDI output, with Re-clock function, can support multi-level cascade

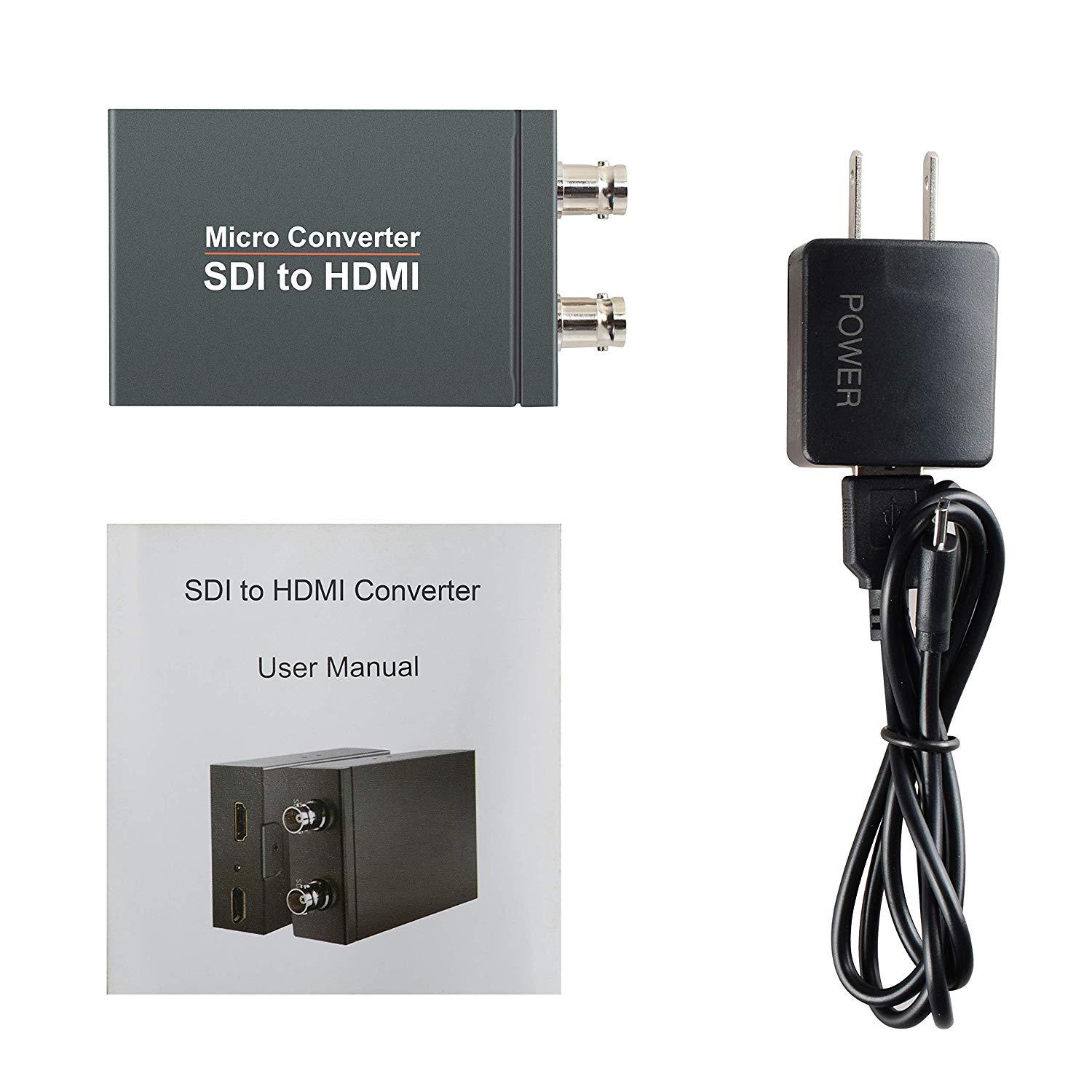

Package Included

1 SDI to HDMI converter
1 power adapter
1 x Manual
