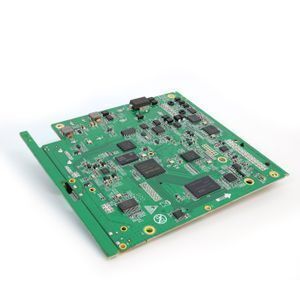

Customized Electronic Circuit Board Assembly PCBA Manufacturer Multilayer PCB
-
Supplier: Shenzhen Jingbang Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Della Zhang -
Price: $1.00 /piece -
Min. Order: 1 piece
| Layer Count: | 1-48; | Package Preview: | ; |
| profiling punching: | Routing, V-CUT, Beveling; | PCB Standard: | IPC-A-610 E Class II-III; |
| Min. Hole Size: | 0.1MM; | Model Number: | OEM; |
| Brand Name: | FASTPCBA; | Hole tolerance: | PTH:±0.075,NTPH:±0.05; |
| Min. Line Spacing: | 3mil; | Base Material: | FR4; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,Paypal; | Port: | Shenzhen,Hongkong; |
| Min. Line Width: | 3mil; | Certificate: | ISO13485/IATF16949/ISO9001; |
| Testing Service: | AOI,X-RAY,SPI,E-test,Flying probe test; | Supply Ability: | 100000 Square Meter/Square Meters per Month; |
| Board Thickness: | 1.6mm; | Wrap and twist: | 5%; |
| Place of Origin: | Guangdong China; | Solder mask: | green/black/white/red/blue/yellow,etc; |
| Copper Thickness: | 0.3-3OZ; | Max board size: | 760mm*600mm; |
| Surface Finishing: | Immersion Gold/Au, HASL, OSP, Immersion silver; | Packaging Detail: | 1.Inner: PCB: Vacuum Packing PCBA: ESD Packing 2.Outer: Standard export carton 3.Customized package; |
| PCB Tolerance of finished thickness: | ±5%; | Number of Layers: | 6-Layer; |
Customized Electronic Circuit Board Assembly PCBA Manufacturer Multilayer PCB
Please Click Here to Tell US Your Needs!!! We Will Provide You with Customized VIP Services!!!! |
| Article | Description | Capability |
| Material | Laminate materials | FR4, High TG FR4, High Frequency, Alum, FPC... |
| Board Cutting | Number of layers | 1-48 |
| Min.thickness for inner layers (Cu thickness are excluded) | 0.003”(0.07mm) | |
| Board Thickness | Standard | (0.1-4mm±10%) |
| Min. | Single/Double:0.008±0.004” | |
| 4layer:0.01±0.008” | ||
| 8layer:0.01±0.008” | ||
| Bow and twist | no more than 7/1000 | |
| Copper Weight | Outer Cu weight | 0.5-4 0z |
| Inner Cu weight | 0.5-3 0z | |
| Drilling | Min size | 0.0078”(0.2mm) |
| Drill deviation | ±0.002″(0.05mm) | |
| PTH hole tolerance | ±0.002″(0.005mm) | |
| NPTH hole tolerance | ±0.002″(0.005mm) | |
| Solder Mask | Color | Green,white,black,red,blue… |
| Min solder mask clearanace | 0.003″(0.07mm) | |
| Thickness | (0.012*0.017mm) | |
| Silkscreen | Color | white,black,yellow,blue… |
| Min size | 0.006″(0.15mm) | |
| Max Size of Finish Board | 700*460mm | |
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… | |
| PCB Outline | Square,circle,irregular(with jigs) | |
| Package | QFN,BGA,SSOP,PLCC,LGA | |
Delivery Time for PCB
| Layer | Prototype | Mass Productions (above 30 m2 ) | |
| Quick Turn | Unual Time | ||
| 2 | 24 hours | 3-4 days | 8-10 days |
| 4 | 48 hours | 5-6 days | 10-12 days |
| 6 | 72 hours | 6-8 days | 12-14 days |
| 8 | 96 hours | 8-10 days | 14-16 days |
| 10 | 120 hours | 12-14 days | 16-18 days |
| ... | ... | ... | ... |
Delivery Time for PCBA
| Order Conditions | Standard Delivery Date | The fastest Delivery Date |
| Prototype (<20 pcs) | 2 days | 8 hours |
| Small Volum (20-100 pcs) | 3 days | 12 hours |
| Medium Volum(100-1000 pcs) | 6 days | 24 hours |
| Mass productions (>1000 pcs) | Depends on BOM | Depends on BOM |
| Contact US for Factory VR Panorama !!! |
Q: What service do you have?
A: We provide turnkey solution including PCB fabrication, SMT, plastic injection & metal,final assembly, testing and other value-added service.
Q: What is your minimum order quantity (MOQ)?
A:As for MOQ, we have no request about it. Even 1 pcs is ok for us.
Q: What is needed for PCB & PCBA quotation?
A: For PCB: Quantity, Gerber file and technic requirements (material,size, surface finish treatment, copper thickness,board thickness).
For PCBA: PCB information, BOM,Testing documents.
Q: How to keep our product information and design file secret ?
A: We are willing to sign a NDA effect by customers side local law and promising tokeep customers data in high confidential level.
Q: What are the main products of your PCB/PCBA services?
A: Automotive, Medical, Industry Control,IOT,Smart Home,Military.
Q: Are you factory?
A: Our factory is located in 1st Building, No. 18-1, Yuquan East Road, Yulv Village, Gongming Street, Guangming New District shenzhen, china. (Contact us for factory VR panorama. )
Sincerely, wish we have the honour and chance to serve for you. I promise you will be satisfied with our products and services. If there is anything we can do for you please feel free to let us know and Contact US. |
-
