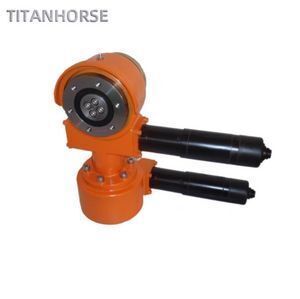

Two axis 7'' slewing worm gear for solar tracking system
-
Supplier: Beijing Titanhorse Industry & Trading Co., Ltd. -
Region: Beijing, China -
Contact: Ms Wendy Dong -
Price: $180.00 /set -
Min. Order: 1 set
Product details
| Packaging Detail: | wooden case standard for seaworthy packing; | kind of axis: | Double axis; |
| Supply Ability: | 500 Set/Sets per Month; | Brand Name: | Titanhorse; |
| Installation Site: | 3-180㎡; | Usage: | For solar tracker,engineering machinery etc; |
| Port: | Qingdao port, or other port in China; | Standard: | International Standards; |
| Model Number: | DA7; | Normal Output Torque: | 2000 kN.m; |
| Max Output Torque: | 4000kN.m; | Commodity: | slew drive; |
| Place of Origin: | Shandong China; | Product Name: | Two axis 7'' slewing worm gear for solar tracking system; |
| Certificate: | ISO9001:2008, OHSAS18001:1999, ISO14001:2004; | Size: | 7 inch; |
| Payment Terms: | L/C,T/T,Western Union; |
Product Description
7 Inch Slewing Drive | |
Brand | Titanhorse |
Output Torque | 1500 N.m/1107 lbf.ft |
Tilting Moment Torque | 13500 N.m/9957 lbf.ft |
Holding Torque | 10400 N.m/7671 lbf.ft |
Static Axial Rating | 133 kN/29900 lbf |
Gear Ratio | 73:1 |
Tacking Precision | ≤0.2° |
Weight | 21kg |
Standard | CE/ISO/SUHC(REACH)/TUV |
Place of Origin | China |
Service | OEM service; Customized Solution |
Material | 42CrMo |
Transport terms | by sea , by air or by Railway |
Delivery Time | Within 25 days after down payment |
Port | Qingdao, Shanghai |
Payment terms | A: T/T B: Western Union |
