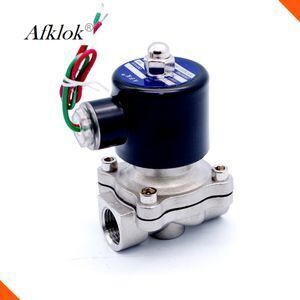

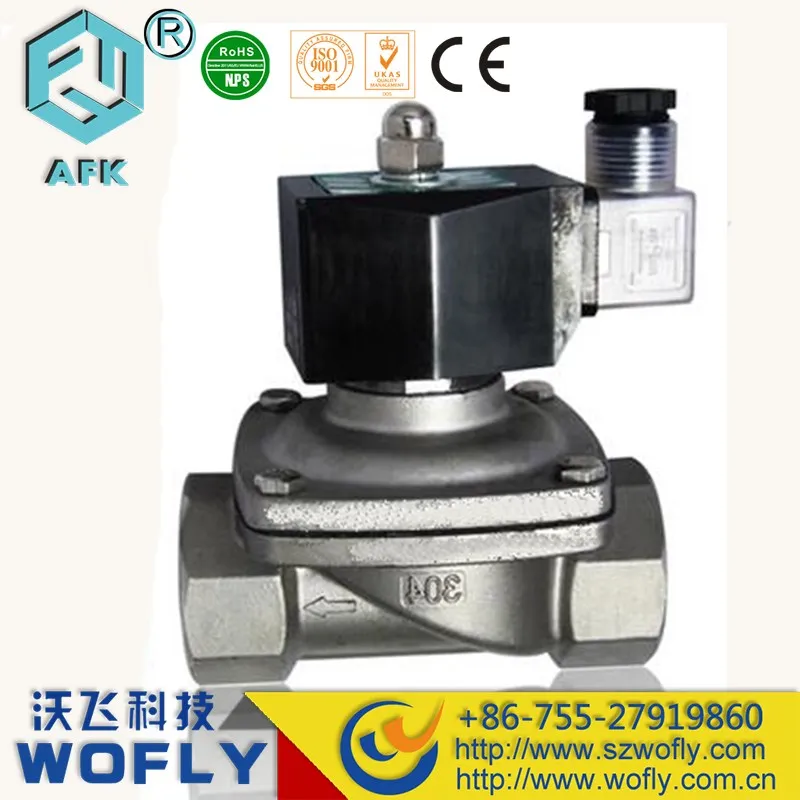

Low Pressure 3/8" 1/2" 3/4" 1" 1.5" 1.25" 2" Stainless Steel NC 2/2 Water Solenoid Valve 12v

Supplier: Shenzhen Wofly Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Wofly He
Price: $15.30 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Payment Terms:	L/C,D/A,D/P,T/T,Western Union;	size:	3/8", 1/2", 1" 1-1/4", 1-1/2",2";
Material:	Stainless Steel;	Packaging Detail:	pp box + export carton;
Working pressure:	0-10bar;	end connection:	BSP, NPT;
Port:	Shenzhen;	Temperature of Media:	High Temperature;
Power:	Solenoid;	Port Size:	3/8" 1/2" 3/4" 1" 1.5" 1.25" 2";
Model Number:	2W--B;	Standard or Nonstandard:	Standard;
Supply Ability:	5000 Piece/Pieces per Week;	Application:	General;
Pressure:	Low Pressure;	Structure:	Diaphragm;
Place of Origin:	Guangdong China;	Media:	Water;
Brand Name:	AFK;

Product Description

Pipe size	3/8"	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"
Orfice size	16mm	16mm	20mm	25mm	32mm	40mm	50mm
Cv value	4.8	4.8	7.6	12	24	29	48
Fluid	Air, water, ol, the neutral gas,liquid
Voltage	AC380V,AC220V,AC110V,AC24V,DC24V, (allow)±10%
Operating	Pilot operating			Type		Normally closed
Body material	stainless teel 304			viscosity		(Below)20CST
Working pressure	Water, air;0-10bar oil:0-7bar
Material of seal	Standard: below 80 °C fuild temperature use NBR below 120°C use EPDM below 150 °C use VITON

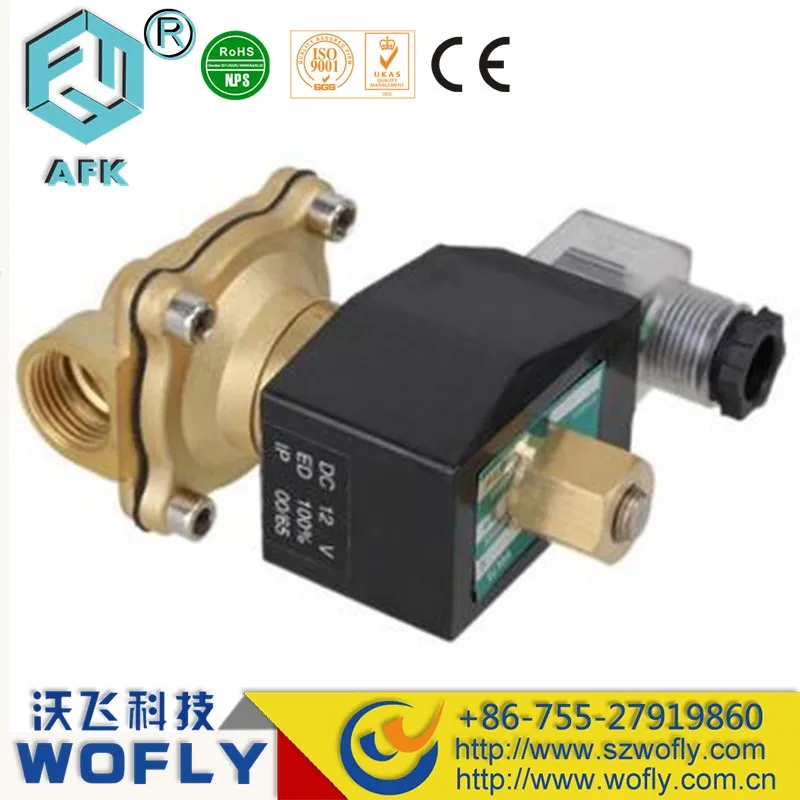

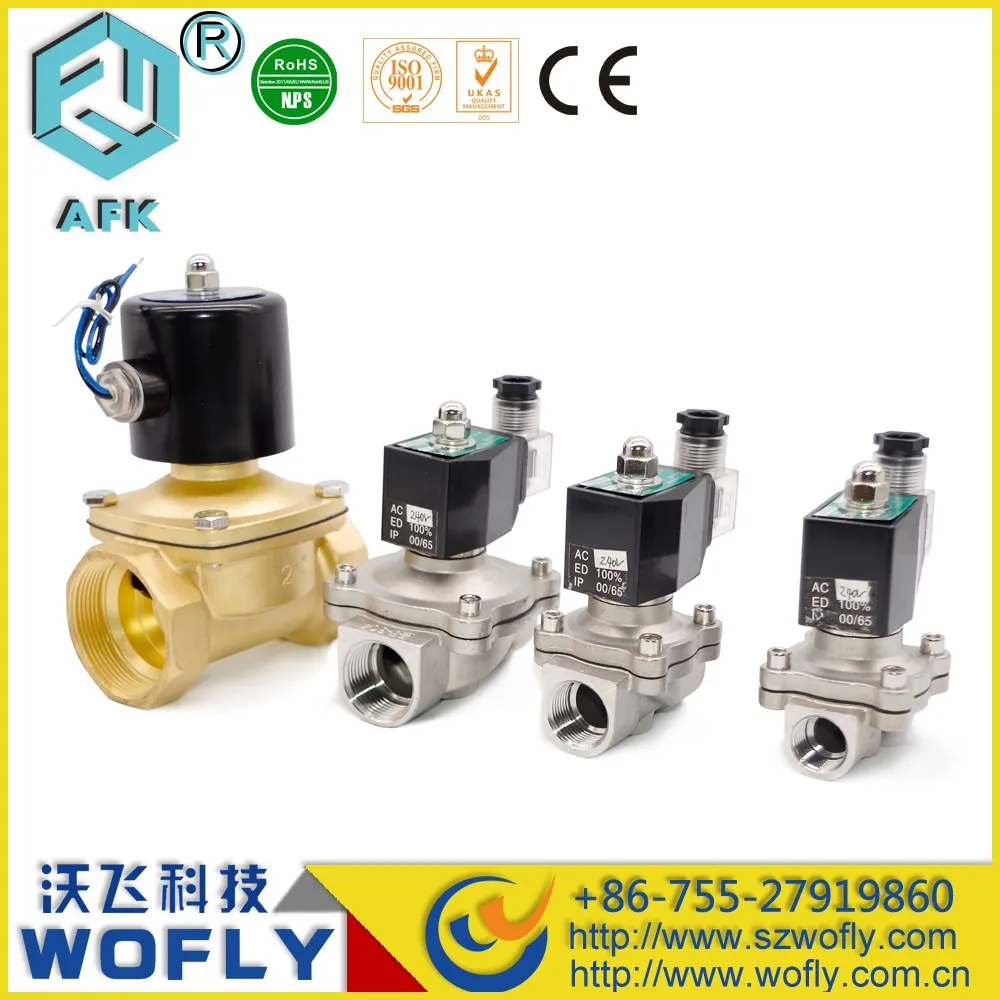

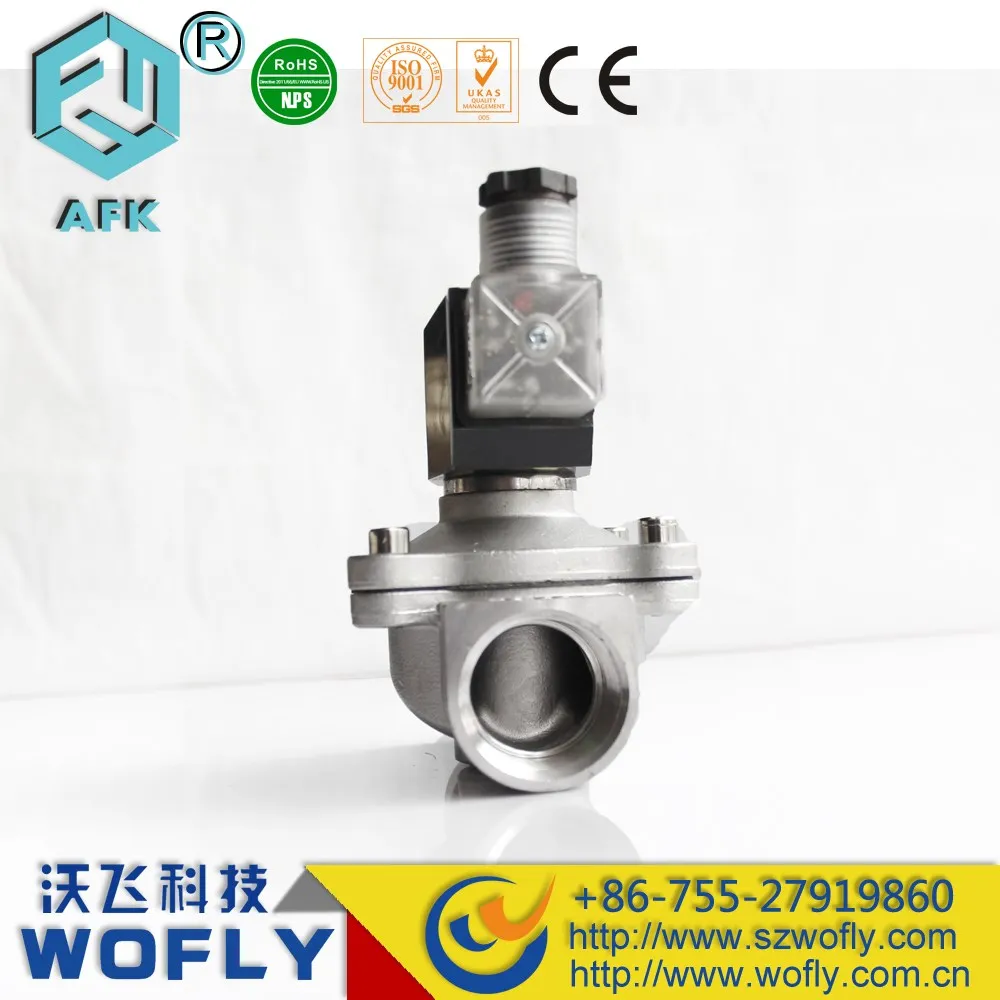

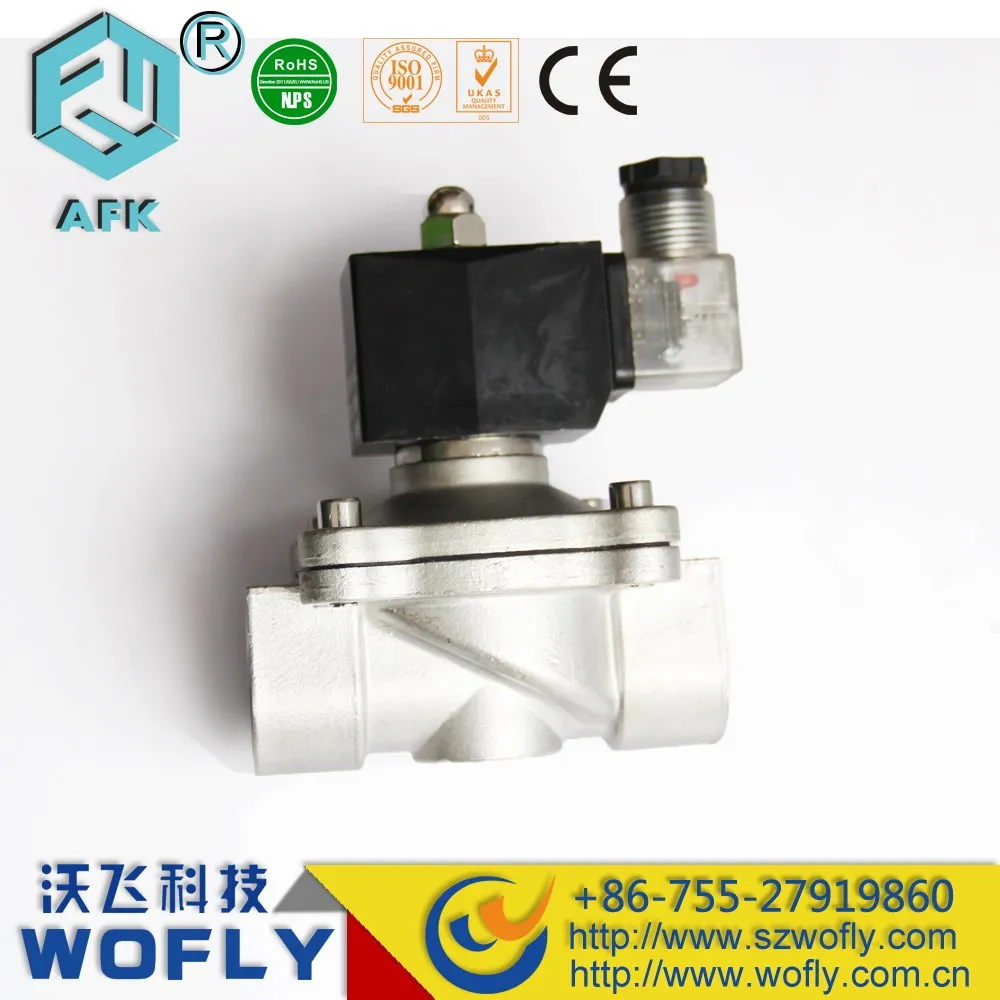

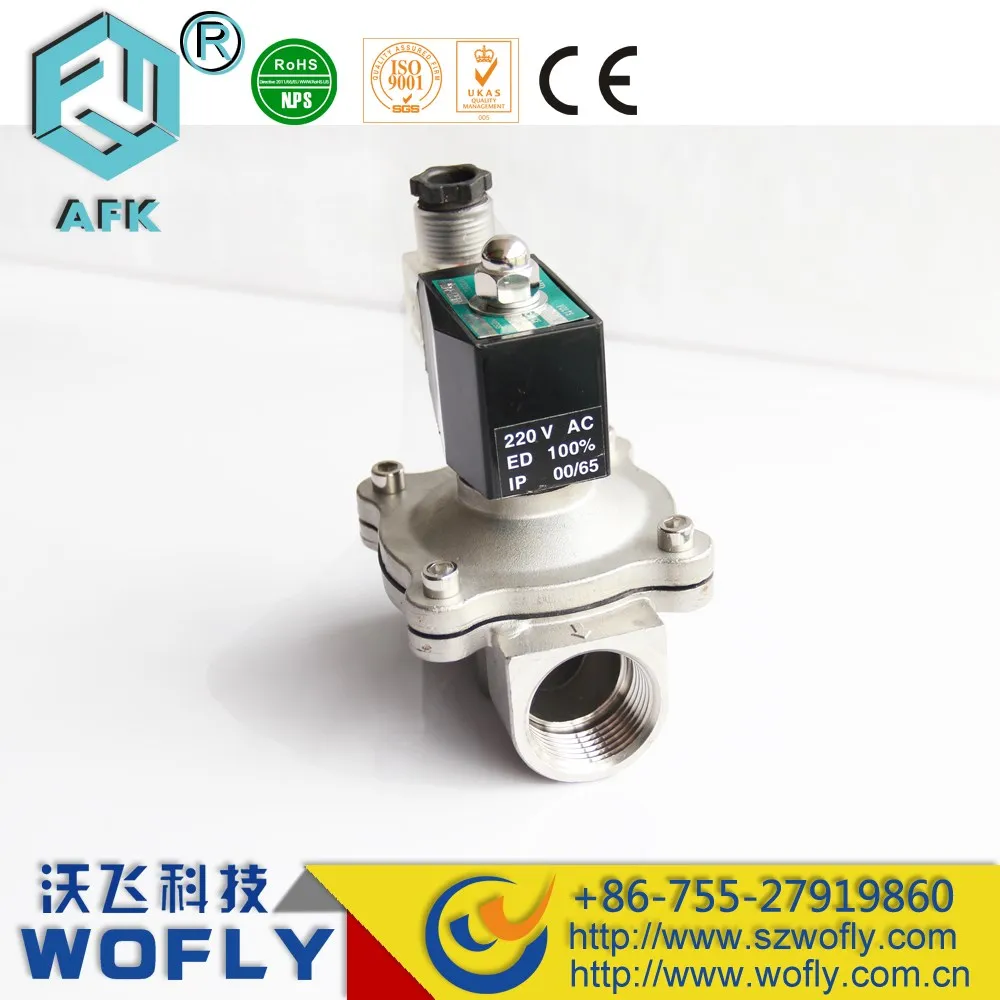

Detailed Images

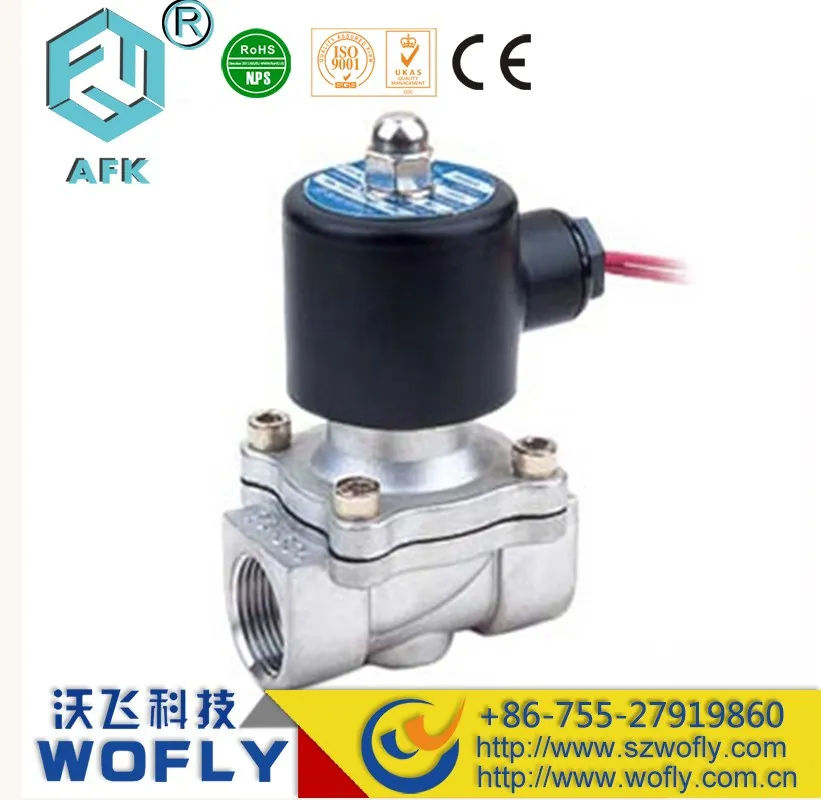

Round Coil

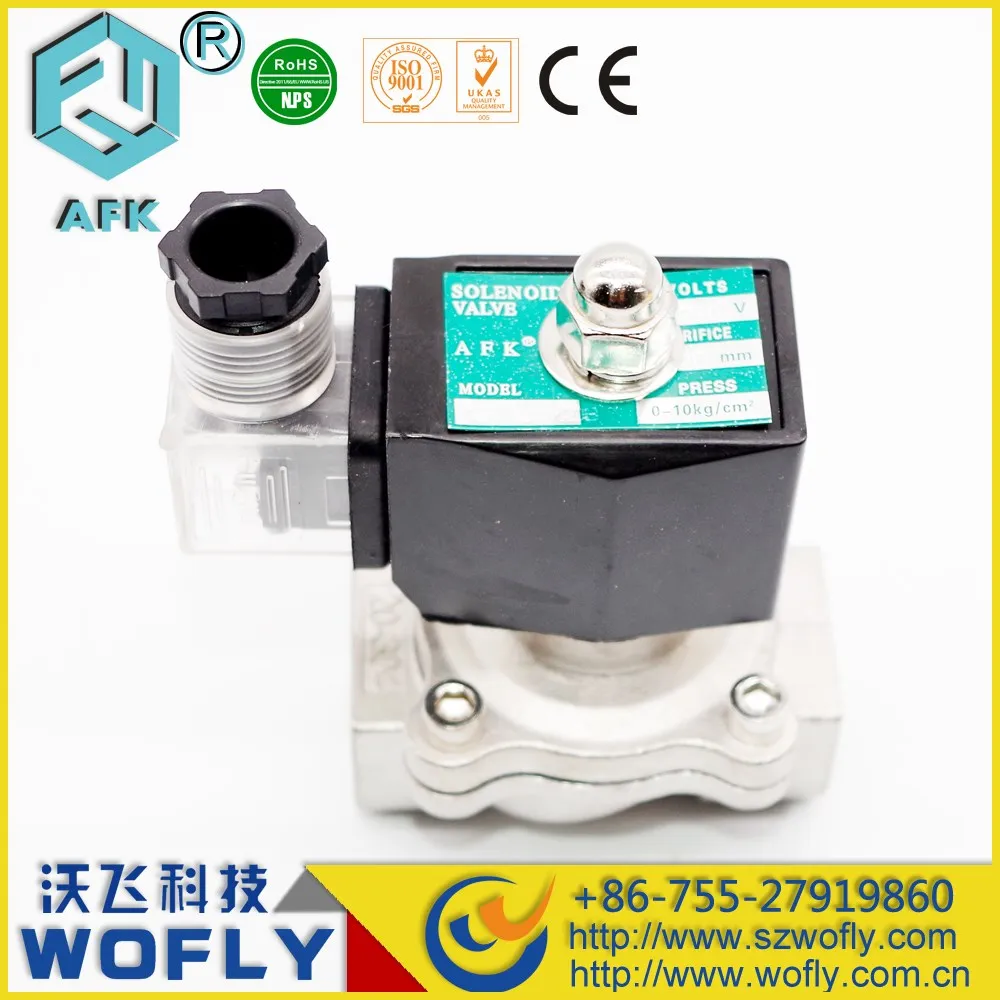

Square coil

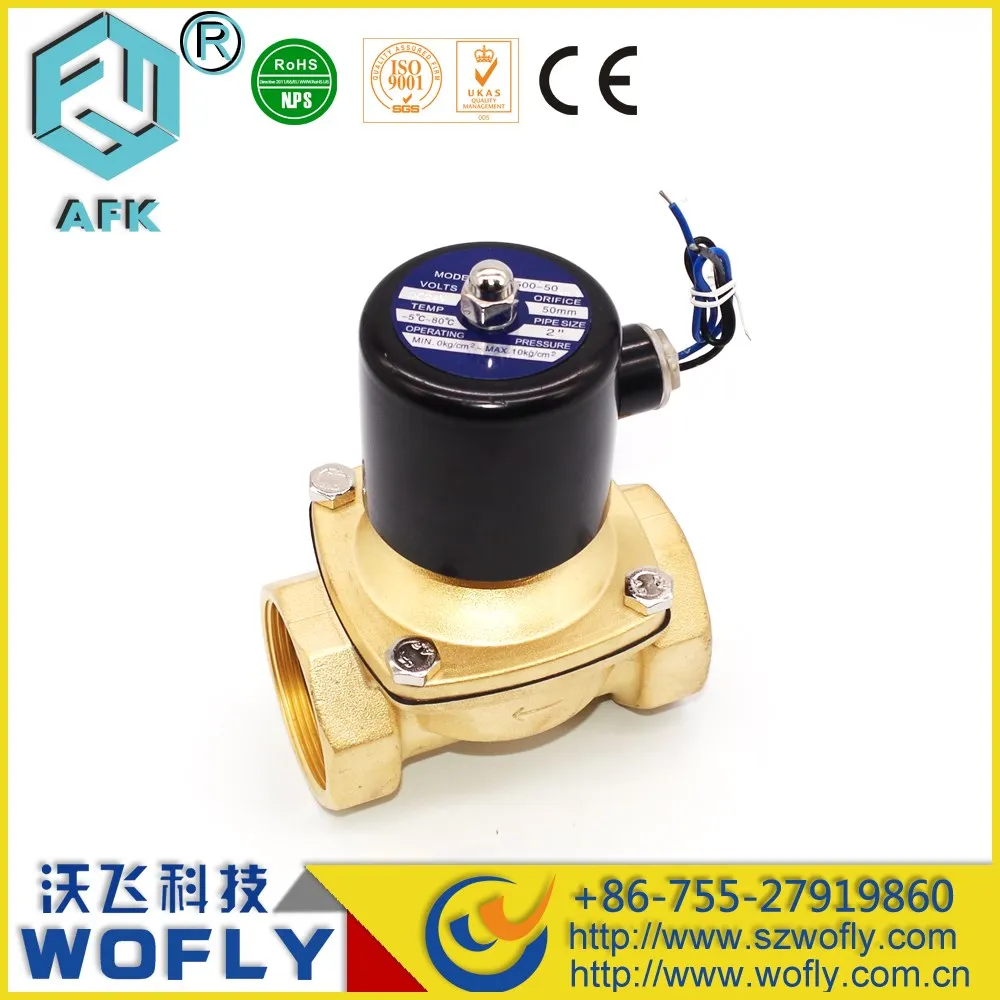

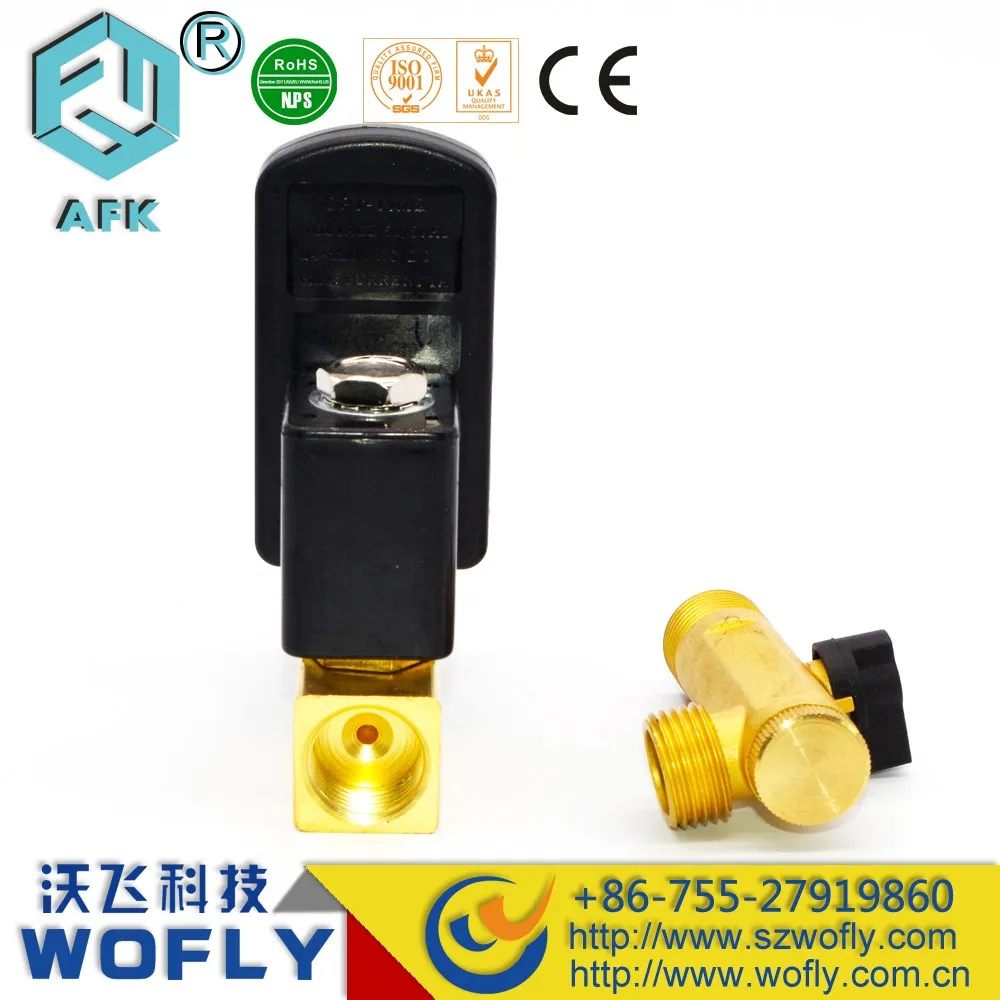

Related product

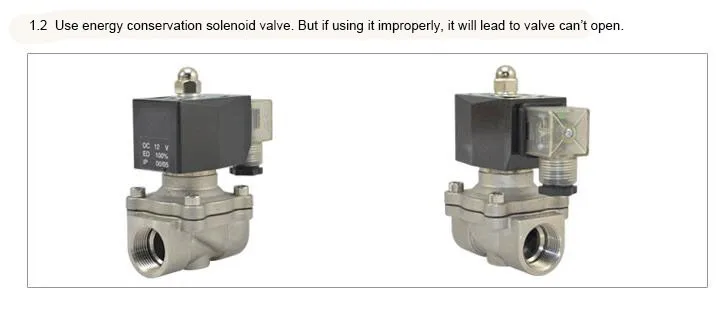

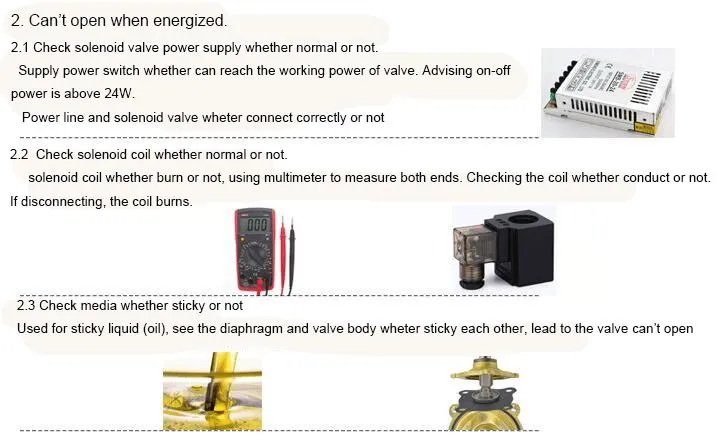

Note

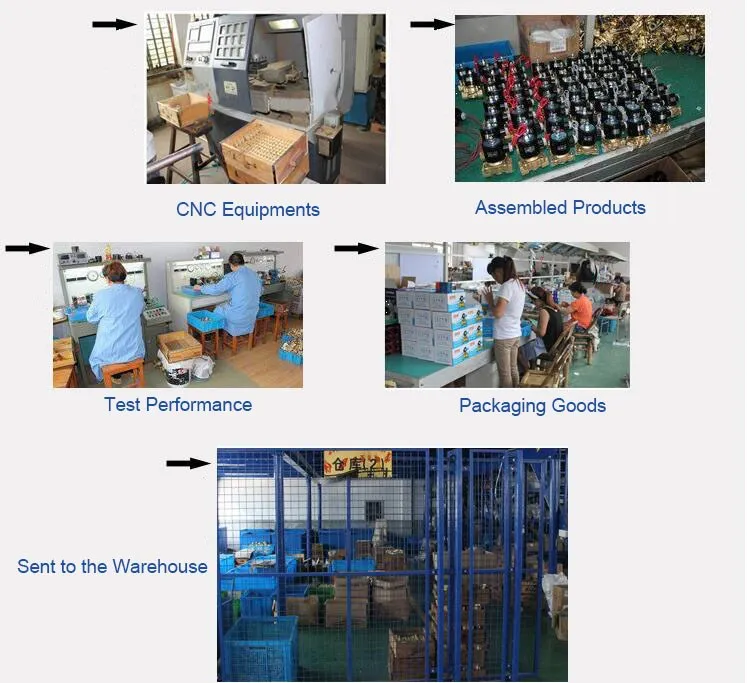

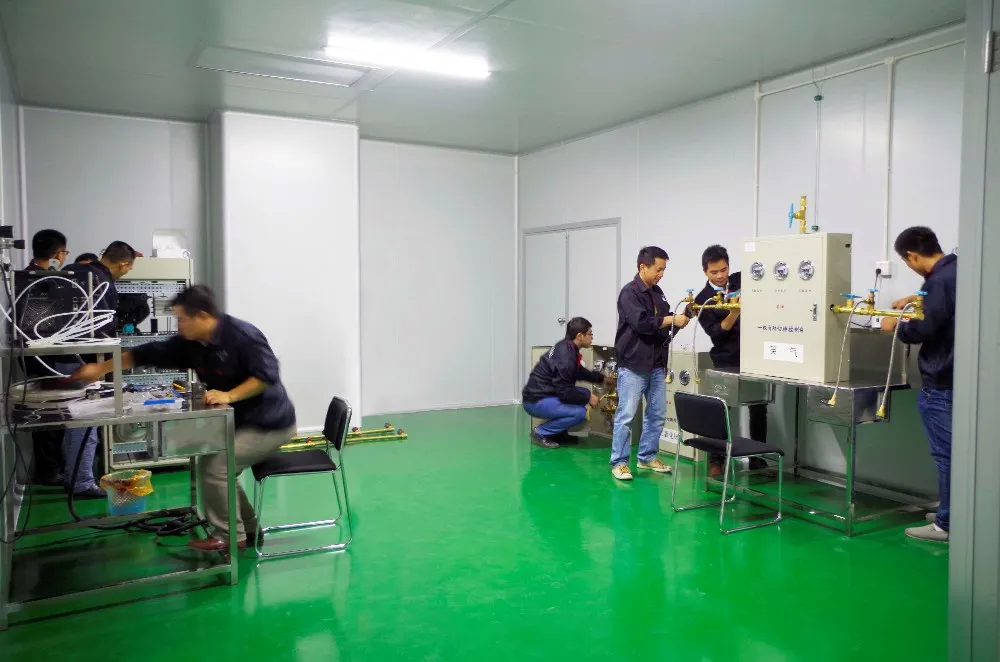

About us

Ordering information

1. What media is used for? water, oil, gas or others?

2. How much is working pressure?

3. What size do you need?

4. What is voltage?

5. What type do you need? normally closed or normally opened?

6. If you have special demands, pls advise media temperature and thread type.

Pls scan QR code if you would like to learn about more informaton.
