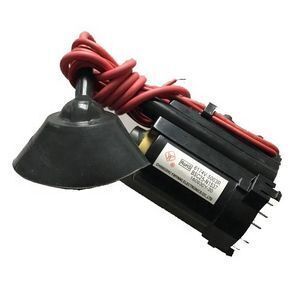

renhe flyback transformer BSC25-T1010A

Supplier: Hangzhou Smart Technology Company Limited
Region: Zhejiang, China
Contact: Mr Jacky Ji
Price: $0.85 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Port:	Shanghai;	Payment Terms:	T/T,Western Union;
Phase:	Single;	Supply Voltage:	fbt (flyback transformer)110-130V;
Application:	TV;	fbt (flyback transformer) color:	black and white;
fbt (flyback transformer) model:	BSC29-0172E;	fbt (flyback transformer) weight:	custom;
Usage:	High Frequency;	Brand Name:	baisheng;
Coil Number:	Autotransformer;	fbt (flyback transformer) material:	silicone cap flyback transformer;
fbt (flyback transformer)size:	custom-made;	Supply Ability:	15000 Piece/Pieces per Day;
Operating Temperature:	fbt (flyback transformer)-30-75degree;	Package Preview:	;
Place of Origin:	Anhui China;	Packaging Detail:	Neutral export carton package: Carton(Quantity): 50 pieces/one carton N.W/G.W: 13/14kg Carton size: 64cm38cm16cm;
Dissipation Power:	fbt (flyback transformer)60W;	Coil Structure:	Toroidal;
Model Number:	BSC29-0179B;

HangZhou Smart Technology Co., Ltd. welcome you !!!

We're a professional manufacturer with rich production experience in Original Flyback transformer(FBT) production. We can make and design varied types of FBT you want.

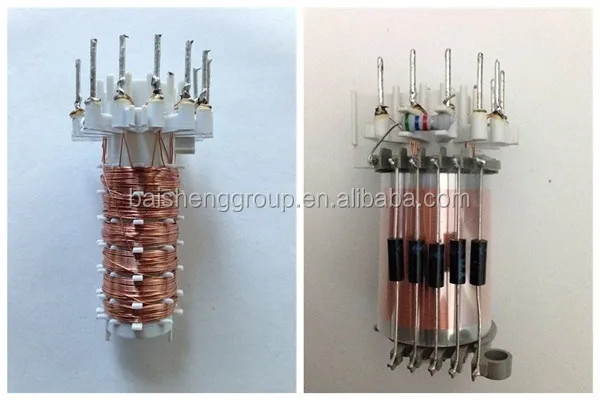

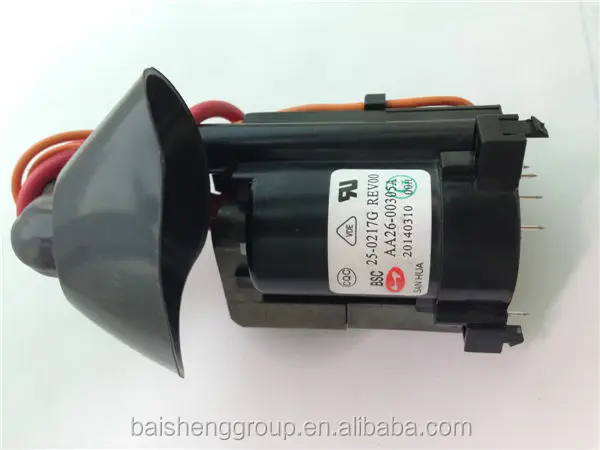

Original FBT flyback transformer

PRODUCT SHOW

Detailed Specification:

1.MECHANICAL CHARACTERISTICS

1.1 MECHANICAL DIMENSIONS

REFER TO THE DRAWING#: BSC25-N0832

1.2 LEAD TEST

LEAD PULLING TEST

THE HIGH VOLTAGE OUTPUT LEAD AND FOCUS OUTPUT LEAD SHALL WITHSTAND THE PULLING TEST(AT 2KG FOR 30 SECONDS)WITHOUT ANY DAMAGE OF THE MECHANICAL STRUCTURE OR THE ELECTRICAL CHARACTERISTICS

LEAD BENDING TEST

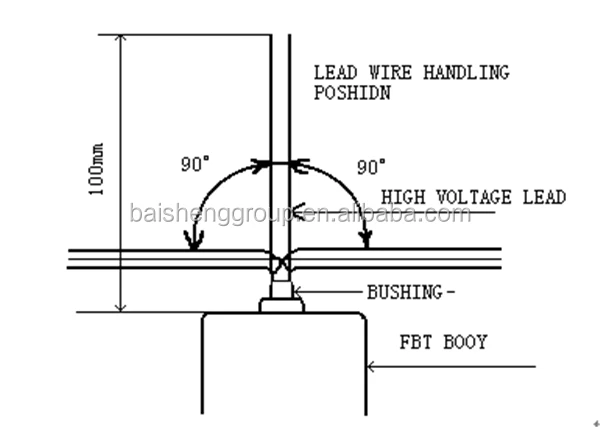

THE HIGH VOLTAGE OUTPUT LEAD AND THE FOCUS OUTPUT LEAD SHALL BE PUT IN THE DIRECTION OF THE AXIS OF THE LEAD AND PULLED BY THE WEIGHT (GRADUALLY UP TO 1KG).THEN THE LEAD SHALL BE BENT AS SHOWN IN FIG.1.AFTER 3 BENDS THE SAMPLE SHALL GET NO DAMAGE OF THE MACHANICAL STRUCTURE OR THE ELECTRICAL CHARACTERSTICS.

LEAD TWISTING TEST

THE HIGH VOLTAGE OUTPUT LEAD AND THE FOCUS OUTPUT LEAD SHALL BE PUT IN THE DIRECTION OF THE AXIS OF THE LEAD AND PULLED BY THE WEIGHT (GRADUALLY UP TO 1KG).THEN THE LEAD SHALL ROTATED 180 DEGRESS AROUND THE AXIS OF THE LEAD AND 360 DEGREES IN THE OPPOSITE DIRECTION . AFTER 1 ROTATION THE SAMPLE SHALL GET NO DAMAGE OF THE MACHANICAL STRUCTURE OR THE ELECTRICAL CHARACTERSTICS.

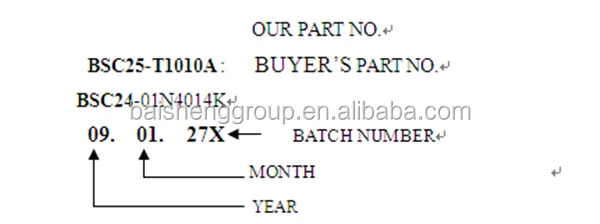

1.3 MARKING

THE FOLLOWING ITEMS SHALL BE MARKED TO EACH DEVICE WITH A MARKING

LABEL IN ACCORDANCE WITH THE DRAWING.

2.ELECTRICAL CHARACTERISTICS

2.1 STATIC CHARACTERISTICS

INDUCTANCE AND RESISTANCE

TERMINALS	INDUCTANCE	RESISTANCE
4# - 2#	STD±15%(mH)	*****(ohm)
STD.VALUE	3.50	*****

(NOTE:TEST CONDITION:FREQUENCY:1KHZ.VOLT:1.0Vrms)

WITHSTANDING VOLTAGE

THE FLYBACK TRANSFORMER MUST WITHSTAND FOR 60 SECONDS APPLICATION OF 1.0KVrms BETWEEN THE COILS AND CORE. THE FREQUENCY OF THE TEST VOLTAGE SHALL BE 50 OR 60HZ.

2.2 DYNAMIC CHARACTERISTICS

TEST CONDITIONS

1) THE STANDARD TEST SHALL BE MADE UNDER THE CONDITIONS OF TEMPERATURE 20°C,HUMIDITY 65±5%,AND THE ATMOSPHERIC PRESSURE 1013±100mBAR,IF THERE IS NO DOUBT ABOUT THE TEST JUDGEMENT, THE TEST CAN BE CONDUCTED UNDER THE CONDITIONS OF TEMPERATURE 20°C ±15%.

2) THE STANDARD TEST SHALL BE AFTER THE EQUIPMENT HAS BEEN WARMED UP FOR 15 MINUTES.

3) FOR THE DEFLECTION YOKE,THE STANDARD TYPE SHALL BE USED.

4) THE OPERATING HORIZONTAL FREQUENCY:15.625KHZ.

5) THE OPERATING VERTICAL FREQUENCY:50HZ.

CONNECTIONS

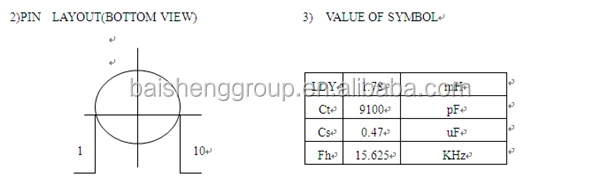

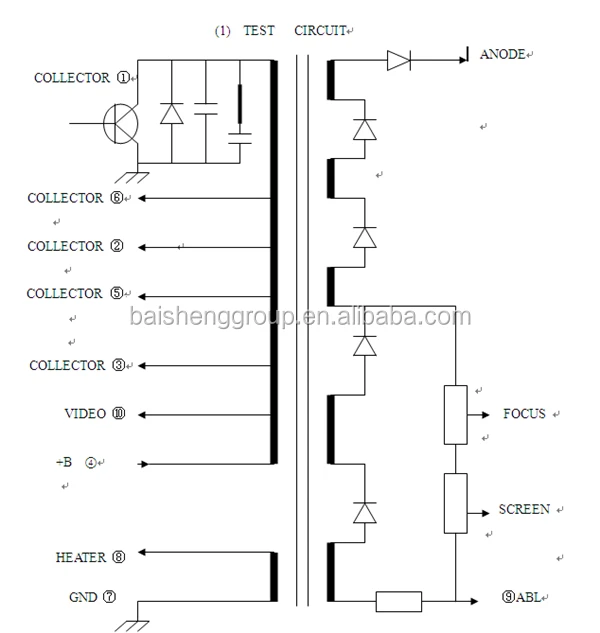

(COLOR TELEVISION FBT STANDARD INTERNAL CONNECTIONS & TEST CIRCUIT)

PERFORMANCE CHARACTERISTICS

ITEMS	TOLERANCE	STD.VALUE	UNITS
HIGH VOLTAGE	STD± 0.5(AT Ia=0.8mA)	25.5	KVdc
REGULATION	STD± 0.5(AT Ia=0~0.8mA)	≤8	%
FOCUS VOLTAGE	Vf MAX:≥9.0 Vf MIN:≤5.5	MAX:9.35 MIN:5.43	KVdc
SCREEN VOLATGE	Vs MAX:≥900 Vs MIN:≤250	MAX:1486 MIN:109	Vdc
COLLECTOR	STD±5%	1050	Vp-p
+B	STD±0.5V	110	Vdc
INPUT CURRENT	STD+50 mA	420Max	mA
RETRACE TIME	STD±0.3 us	11.60	us
HEATER LINE	STD±0.3Vrms	6.30	Vrms
VIDEO LINE	STD±8Vdc	195	Vdc
AFC LINE
E-13.5V LINE
E13.5V LINE
RINGING RATIO	≤5OR LESS	4OR LESS	%

Attention: The data above is for reference only, we can supply you with a variety of Original Flyback Transformer in different types and sizes.Send us your detailed specification or model, we'll quote to you soon.

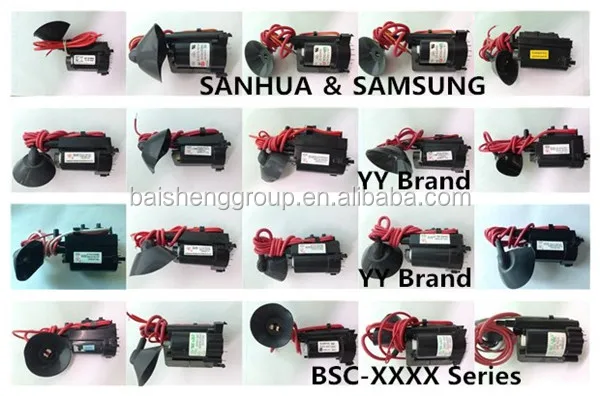

Here are some of our other products:

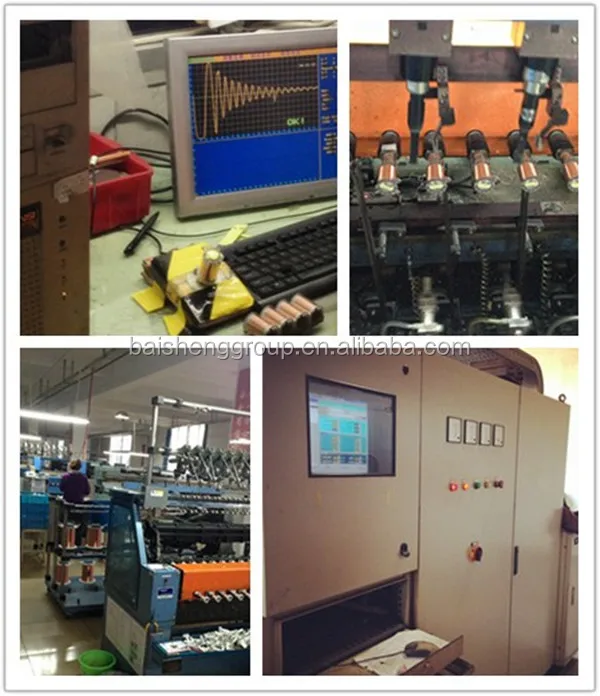

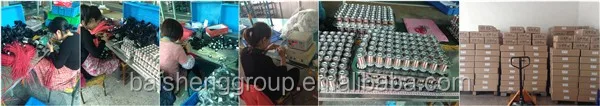

WORKSHOP
