Good quality Infrared sensor Switch
- 10.00 >=10 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Max. Voltage: | 30VDC; | Voltage: | 12VDC/24VDC; |
| Model Number: | SMB-I006; | Supply Ability: | 100000 Piece/Pieces per Month; |
| Protection Level: | IP65; | Output: | NO/NC/COM; |
| Payment Terms: | D/A,D/P,T/T,Western Union,MoneyGram,Paypal; | Mode: | NO/NC/COM; |
| Tiemr delay: | 0.5-20Sec; | Reaction Distance: | Coud adjusted from 5-20CM; |
| Size: | 22mm x 32.5mm; | Brand Name: | PH; |
| Place of Origin: | Guangdong China; | Port: | SHENZHEN; |
| LED: | Greeb and Red LED; | Waterproof: | IP65; |
| Max. Current: | 1A; | Item: | SMB-I006; |
| LED color: | Red/Green; |
Product Description

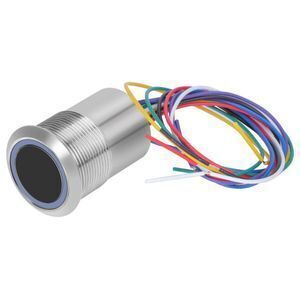

Touchless Exit Switch 22mm
No Touch Exit button for interlock systems
Internal/External control
Feature
1. With Red/Green LED indication
2. Red/Green LED can be controlled by internal mode/External mode
3. Detecting distance of SMB-I006 can be adjusted from 5cm to 20cm
4. With timer delay function. Adjusted from 0.5sec to 20sec.
5. with Pulse/toggle function
6. Dia 22mm. Fit difference size of stainless steel or metal frame.
7. Rapid reaction
8. Chang over contact. 1A@30VDC
9. Waterproof at front side.
Data Shhet
| Item | SMB-I006 |
| Voltage | 12V to 24VDC |
| Detecting Distance | 5-20 CM |
| Function | Pulse/Toggle |
| Standby Current | 33mA |
