58 feeders CHM-T48VB SMT pick and place machine with Vision cameras, PC in build, all-in-one Machine chmt48vb

Supplier: Hunan Charmhigh Electromechanical Equipment Co., Ltd.
Region: Hunan, China
Contact: Ms Hanan Liu
Price: $4800.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Warranty:	One Year;	Application:	SMT batch production / prototyping;
Package Preview:	;	Selling Units:	Single item;
Axis:	Axis Closed-loop control;	Single package size:	118X80X53 cm;
PCB size:	1010 ~ 345355mm;	Brand Name:	Charmhigh;
Packaging Detail:	wooden box;	Product name:	CHMT48VB pick and place machine;
Model Number:	CHM-T48VB;	Place of Origin:	Hunan China;
voltage:	110v / 220v;	Single gross weight:	89.0 KG;

Best sale Model: Charmhigh CHMT48VB

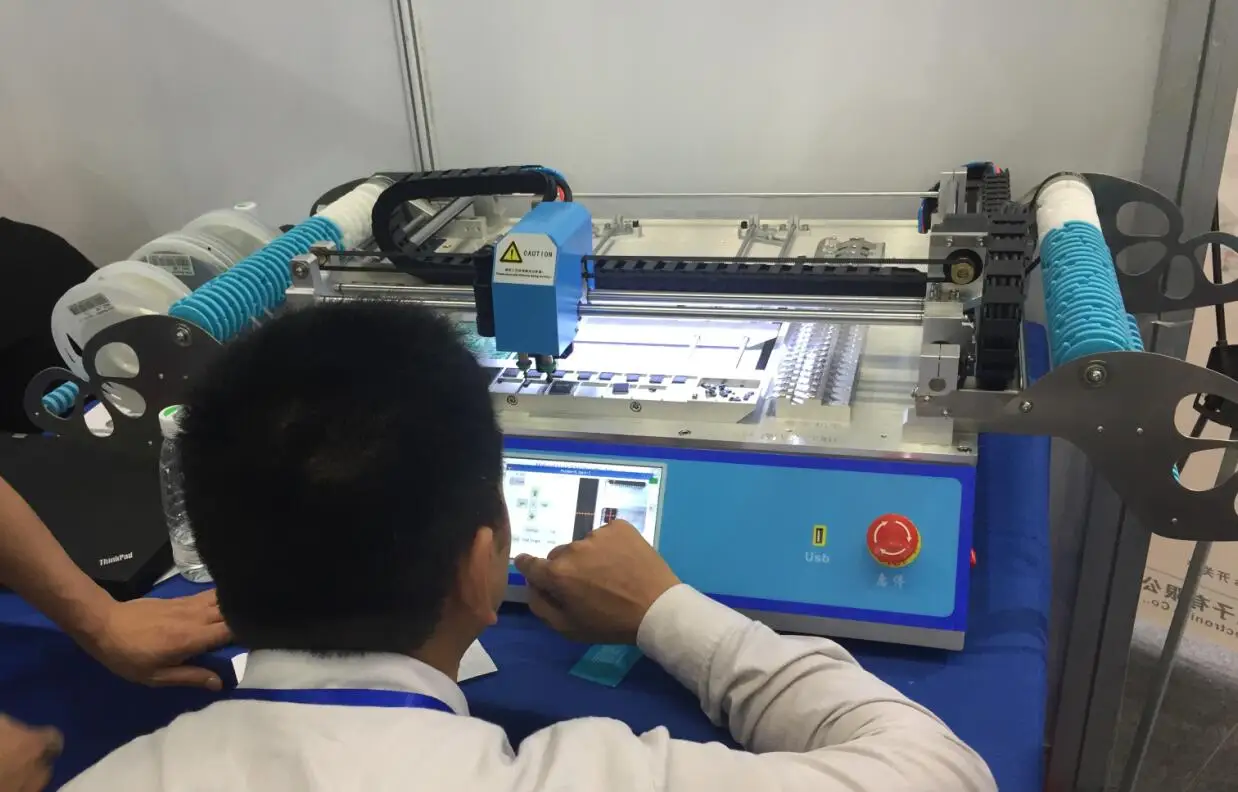

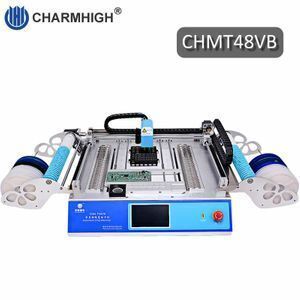

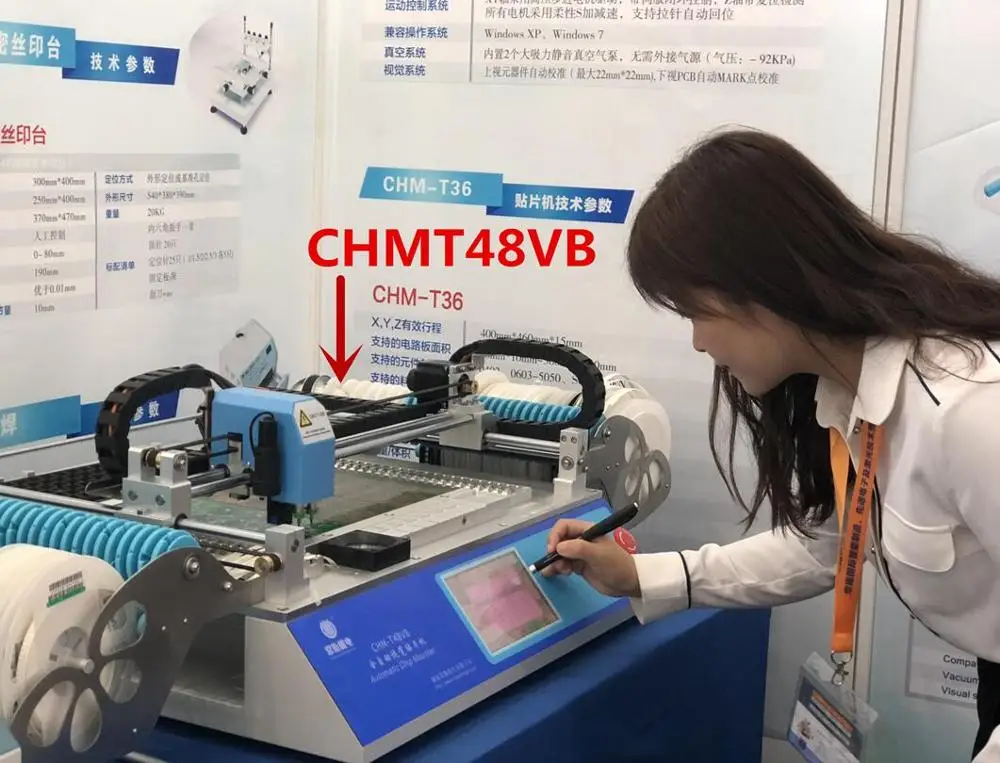

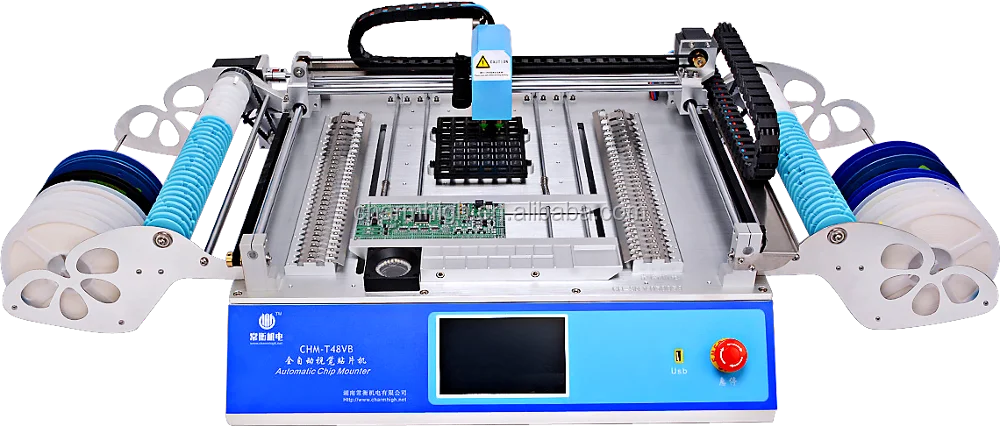

58pcs feeders (left 29+right 29), 2 heads, 2 vision cameras, in-build PC, Industry embedded Linux system, closed-loop control, IC tray supported

English language Version 110V/220v Charmhigh

Dear friends, here we recommend the best sale pick and place machine for you: CHMT48VB model. Most customers like it!

CHMT48VB sells very well and it has 58pcs feeders, which can meet more customers demand, with 2 vision cameras, motor with encoder, axis closed-loop control, never lose step! We recommend!

Machine is completed, ready for work, each machine will be 100% tested well, QC passed.

Please purchase it with confidence.

Quality guarantee, quality is better than other brand machines.

CHMT48VB Main parameters

Model	CHM-T48VB
PCB area	10mm10mm - 350mm355mm
X Y axis Travel	420*460mm
Z axis moving range	15mm (support highest component: 5mm)
Placement heads	2pcs
Feeders	Left 29pcs + right 29pcs 8mm=44pcs, 12mm=8pcs, 16mm=4pcs, 24mm=2pcs, Front IC stack=14pcs, user-defined IC tray
Vision system	Dual cameras (up & down cameras)
Drive	Closed-loop control stepper servo drive system, make sure never lose step
Z axis self-return detection	Yes, prevent nozzles breaking
Pull pin self-return	Yes
Leakage of material detection method	Vacuum detection, vision detection
Touch screen	7”industry touch screen
Main board	Independent research industry main board
System	Embedded Linux system
Mounting speed	5000cph (vision off); 3000cph (vision on)
Mounting precision	±0.025mm

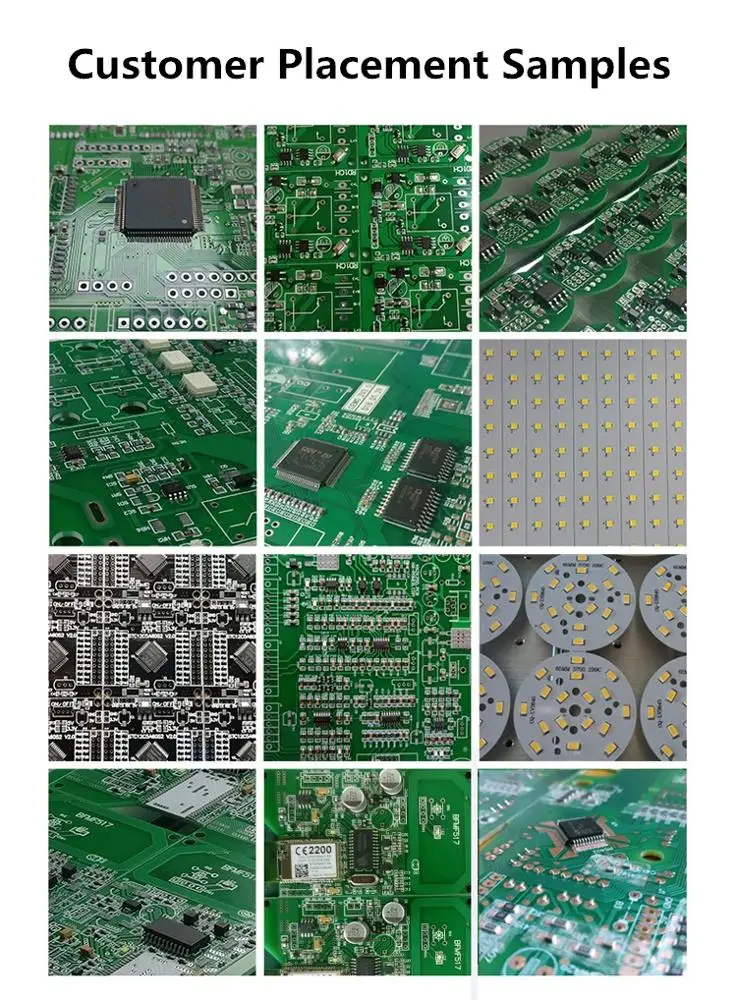

Components	0402-5050,SOP,QFN (tape width: 8MM,12MM,16MM,24MM)
Machine dimension	L 960mm* W 705mm* H 335mm
Vacuum pump	-92KPA (2pcs,build-in, mute type)
External air source	No need (machine build-in mute vacuum pump 2pcs)
External PC	No need (All-in-one machine)
Voltage	220V (110V), 50Hz
Net weight	70kg
Gross weight	89kg / 1168152cm ---- wooden packing

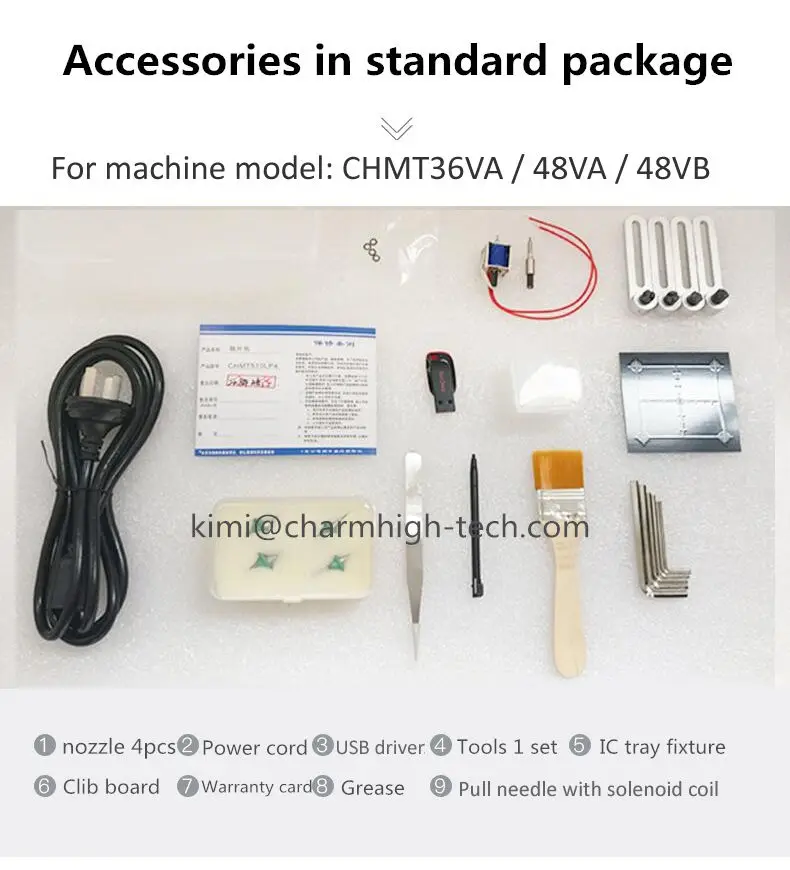

Standard Accessories for CHMT48VB:

1) Pick and Place MachineCHMT48VB: 1
2) Juki nozzle: Totally 4pcs (503, 504, 505, 506 size)
3) 8G USB flash 1
4) Power Cord: 1
5) Pull pins: 1
6) Coil for pull pin:1
7) Camera positioning adjust black board: 1
8) Hex wrench: 6
9) Tweezers: 1
10) Brush: 1
11) English user manual: 1

CHMT48VB Real pictures:

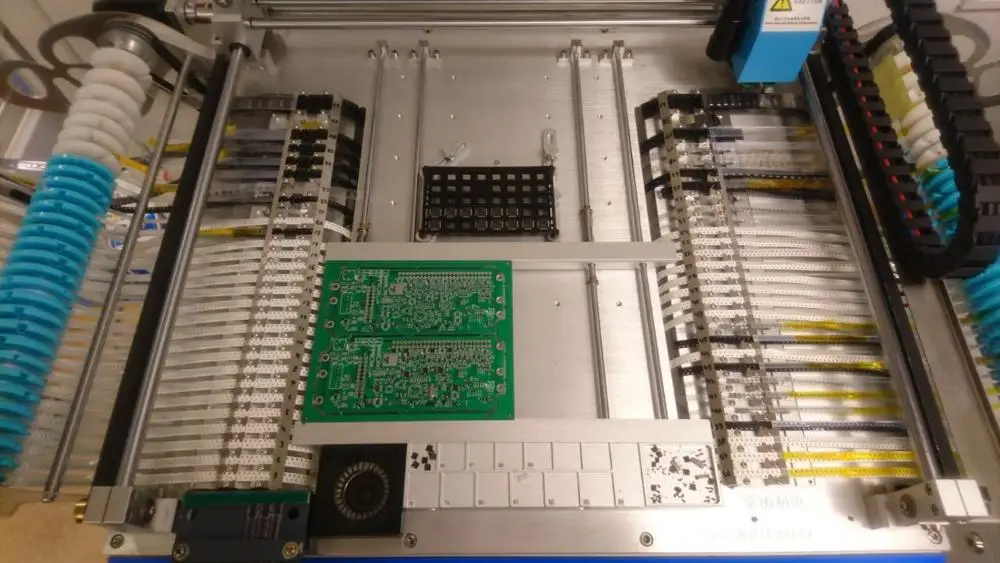

Left 29 pcs feeders + right 29pcs feeders (Total 58 feeders, install more reels!)

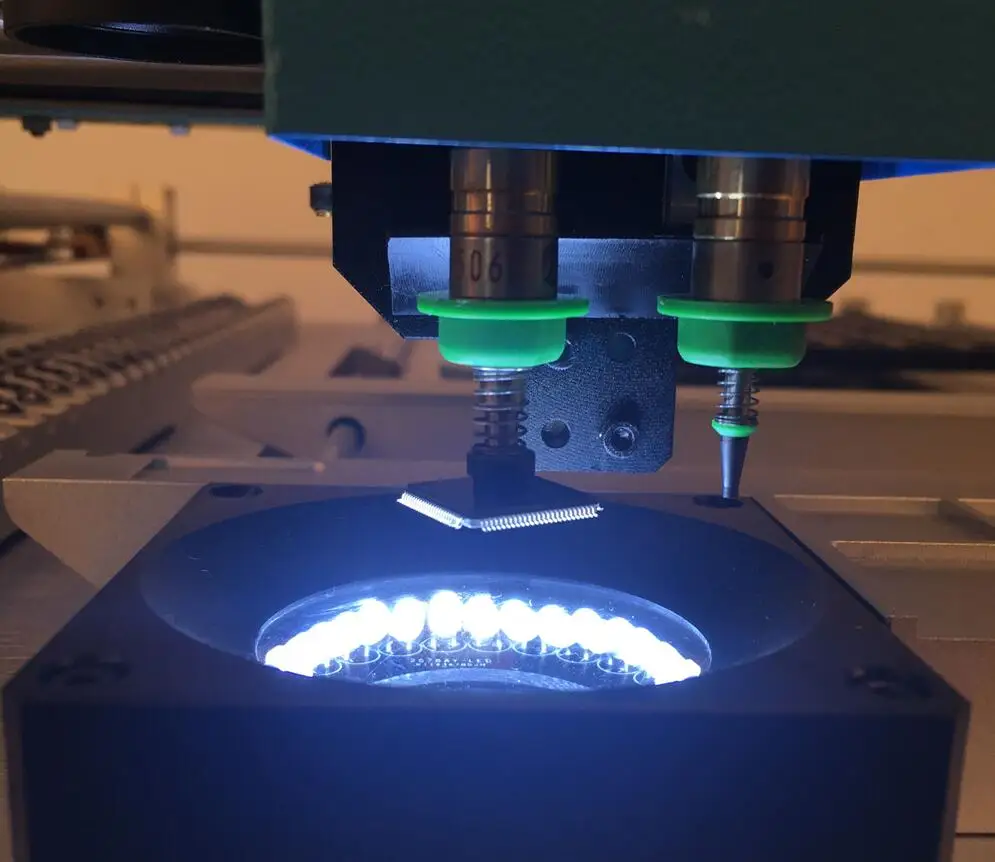

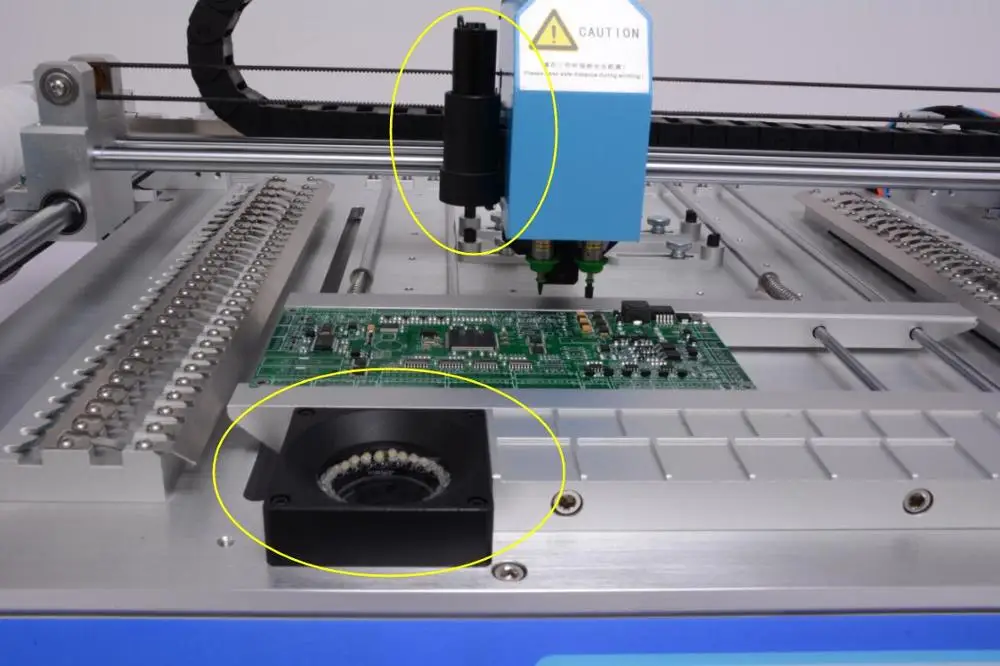

Up& Down vision cameras: (more precision, good for IC)

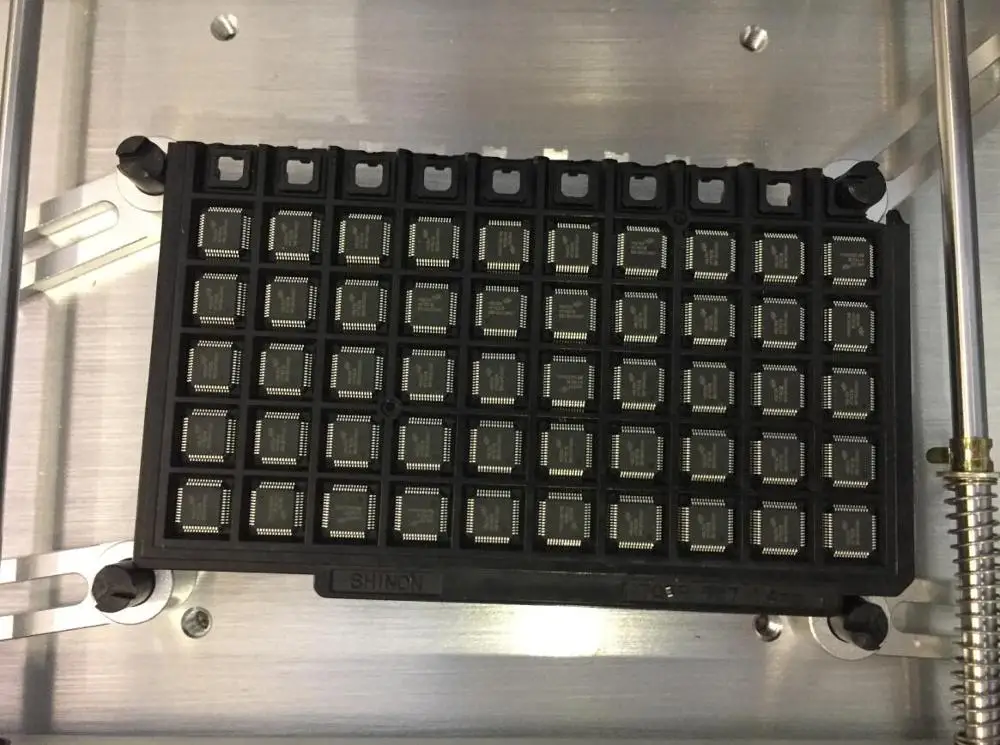

IC tray supported:

Different kinds of tape materials installed (image from customer):

High precision Vision camera, Juki Nozzle pick and place:

Learning & operating:

Warranty:

The complete machine has a warranty period of 1 year from the time of purchase and lifelong service
support as well as a long term factory price supply.
We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale service.

Each machine 100% test well before send out.
Tech support:
Kimi Mob: 0086 135 106 75756
Skype: kimiliu89
E-mail: kimi @ charmhigh-tech. com

If you want to see more information and videos, please contact us by E- mail.

We will response you at the first time.

Here is our YouTube channel for your reference:
www.youtube.com/channel/UCKRczL5Hywx59M_2SWGJOsA/videos
