Wuxi finishing Steel Wire Coiler760 Take up Machine
- 13000.00 set
| Certification: | ISO9001; | Packaging Detail: | Wooden case,water-proof,good securing for long vovage or as customer's request; |
| Application: | Steel wire; | Payment Terms: | L/C,T/T,Western Union; |
| Supply Ability: | 100 Set/Sets per Month; | Production Capacity: | 100 TON; |
| Port: | shanghai; | Drum diameter: | 760mm; |
| Condition: | New; | Response: | Quickly; |
| Weight: | 1800kg/unit; | After-sales Service Provided: | Engineers available to service machinery overseas,Overseas third-party support available; |
| Place of Origin: | Jiangsu China; | Warranty: | 1 YEAR; |
| Power(W): | 18.5-15kw; | Brand Name: | KSD; |
| Application wire size: | 3.8-5.5mm; | Dimension(L*W*H): | 1800*1200*2110; |
| Take-up speed: | according user distribution; | Voltage: | 380V; |
| Quality: | Excellent; | COLOR: | Clients' Requirements; |

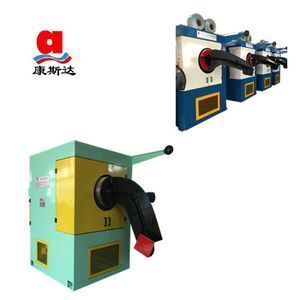

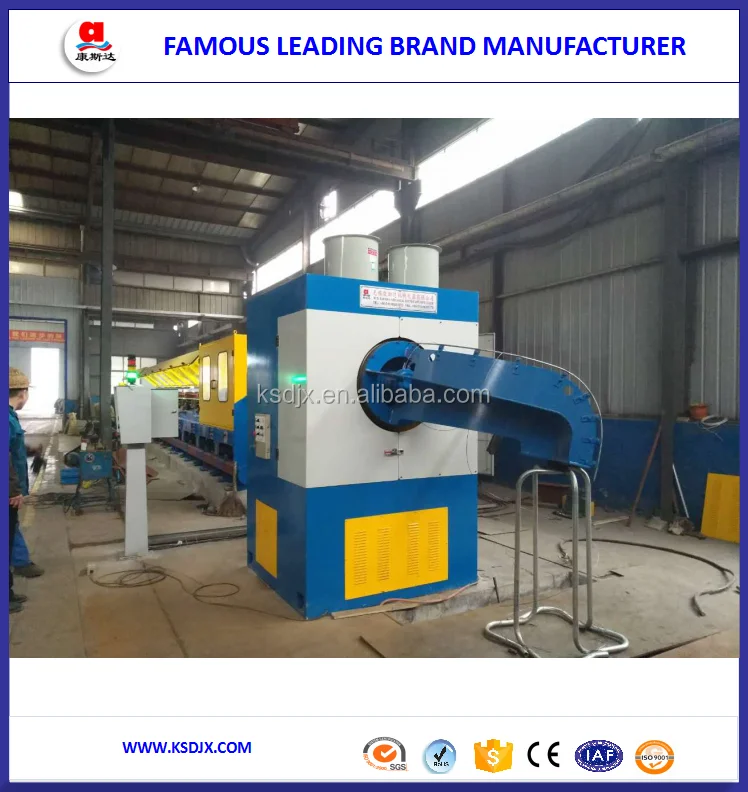

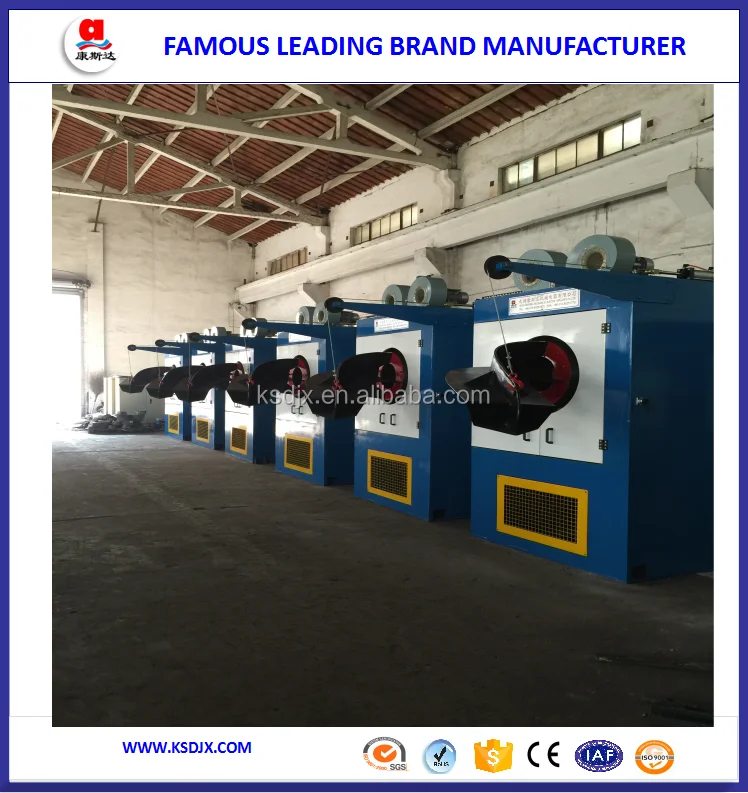

The trunk-type take-up machine improved by our company is used for the heavy wet wire drawing machine and straight line wire drawing machine in order to discharge wires with a big weight of coll.It is suitable to discharge the big weight of coll which high-strength spring steel wires has a high request in flatness . The machine can discharge any weight wires in 1000kg at any time without stopping.Because we add the correction mold and the air & water cooling system,the quality of steel wires is improved.
The machine is also suitable for the fine drawing after the heat treatment,which meets users’ requirement of discharging wires in a big weight of coll.
Model | Coiler350 | Coiler450 | Coiler600 | Coiler760 |
Capstan diameter | Φ350mm | Φ450mm | Φ600mm | Φ760mm |
Applicable wires dia | Φ0.8-1.2mm | Φ1.4-1.7mm | Φ1.8-3.5mm | Φ3.8-5.5mm |
Take-up speed |
Optional by the user | |||
Motor power | 7.5-11KW | 11-15KW | 15-30KW | 30-45KW |
Note |
The mechanical speed ratio and the drum diameter are optional via the user | |||
