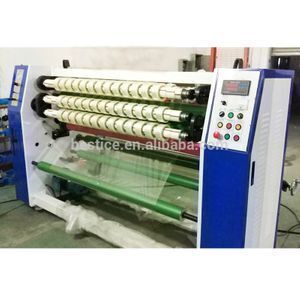

Cello Tape Making Business /BOPP Tape Making Business BOPP Tape Slitting Rewinder

Supplier: Hebei Bestice Commerce & Trade Co., Ltd.
Region: Hebei, China
Contact: Ms Amanda Hou
Price: $6000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Slitting speed:	800m/Min;	Brand Name:	BESTICE;
Port:	Tianjin Xingang Port /Shanghai Port;	Certification:	CE ISO;
Condition:	New;	Weight:	1200kg,1200Kg;
After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Engineers available to service machinery overseas;	Packaging Detail:	Packaging Details 1. The professional export wooden case packing suitable for long distance ocean shipping. 2. Inside film packing after anti wet and rust treatment. 3. One whole set machine size 3000mm2250mm1800mm and cubic about 12CBM 4. 20GP container can load 2 whole sets of the bopp slitting and rewinding machine 5. 40GP container can load 4 whole sets of the bopp slitting and rewinding machine;
Supply Ability:	300 Set/Sets per Year;	Slitting system:	Razor blade;
Max rewinding diameter:	150-300mm;	Dimension(LWH):	2350 * 1250 * 1500mm;
Warranty:	12 Months;	Blade:	0.2mm x 22mm x 60mm;
Paper core inside diameter:	25.4mm-76.2mm;	Payment Terms:	L/C,T/T,Western Union;
Cutting width range:	12mm-1300mm;	Place of Origin:	Hebei China;
Max unwinding diameter:	800mm;	Voltage:	380V 50HZ;
Working width:	1300mm;	Model Number:	BC-210;

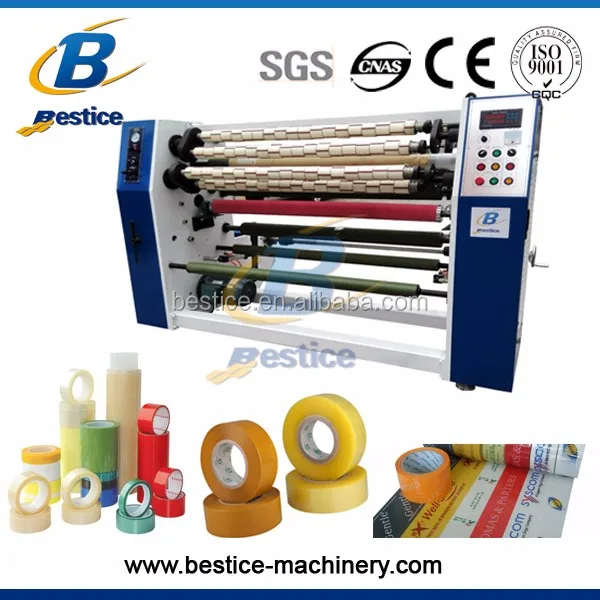

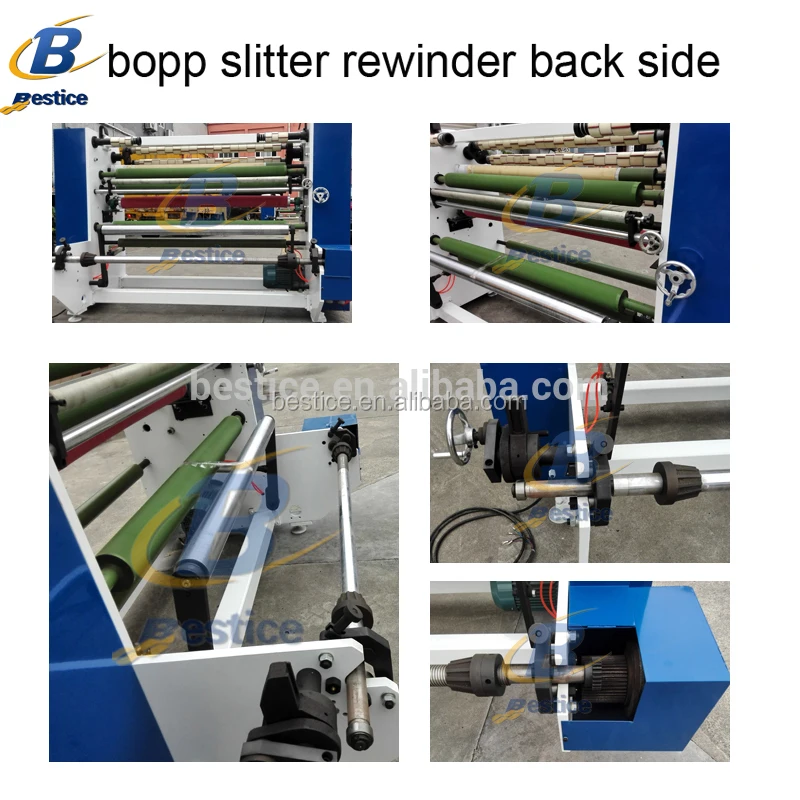

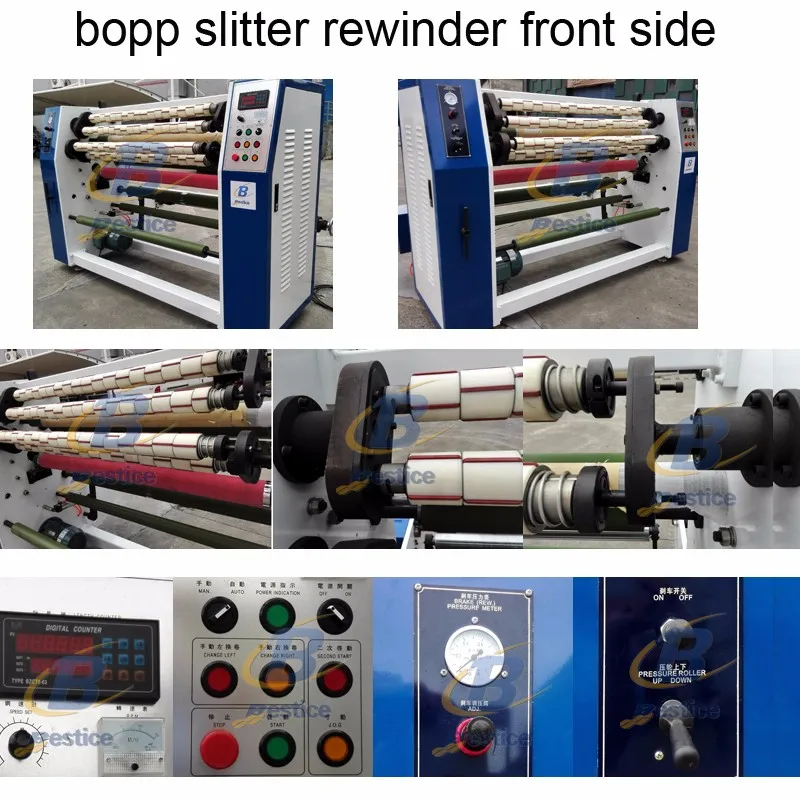

Cello Tape Making Business /BOPP Tape Making Business BOPP Tape Slitting Rewinder

1. Application:

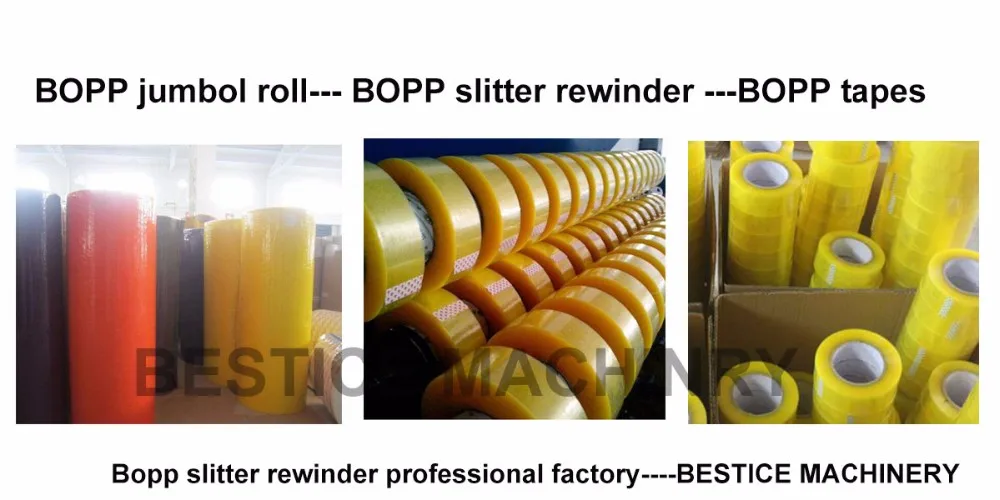

Suitable for slitting rewinding BOPP tape.

2.Main Technical parameters:

Working Width	1300mm	1600mm
Max. Rewinding Diameter	150mm for 4 shafts 300mm for 2 shafts	150mm for 4 shafts 300mm for 2 shafts
Max. Unwinding Diameter	800mm	800mm
Paper Core inside diameter	1'' -3'' (25.4mm-76.2mm)	1'-3'' (25.4mm-76.2mm)
Min. Cutting Width	12mm	12mm
Slitting System	Razor Blade (Air source knife optional)	Razor Blade (Air source knife optional)
Blade	0.2mm x 22mm x 60mm	0.2mm x 22mm x 60mm
Speed	180M/Min	180M/Min
Dimension	2350 * 1250 * 1500MM	2650 * 1250 * 1500MM
Weight	1200 KG	1500KG
Motor	4KW	5.5KW

Accessory product

1. Auto Paper Tube Cutting Machine (Model 203)

Used for cutting adhesive tape paper pipe.

Max slitting width	500mm
Min slitting width	12mm
Inside diameter of paper tube	76.2mm
Thickness of paper pipe	3-5mm
Motor power	1.5kw
Pressure	5kg/cm²

2. Paper Core Loading and Unloading Machine (Model 103)

Used for loading and unloading finished products of adhesive tape and paper core.

Working width	500,1300,1600mm
Inside diameter of paper tube	φ25.4-76.2mm φ1″-3″
Pressure	5kg/cm²

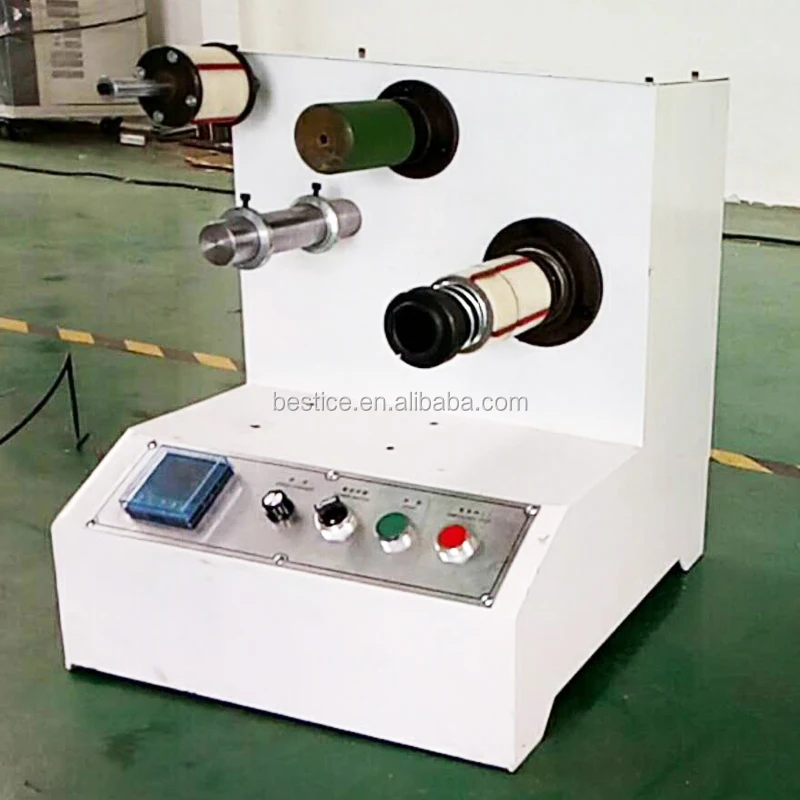

3. Mini -type rewinding machine (Model 200)

Used for rewinding imperfect finished product of adhesive tape to ensure the quality of the products.

Max rewinding diameter	220mm
Max rewinding width	100mm
Inside diameter of paper tube	76mm
Rewinding Speed	0--100m/min

Certifications

Packaging & Shipping

Our Services

Pre-sales

As long as you tell us your detail requirement then we will supply the appropriate and cost-effective machines for you. And we have the R&D department and can customize for you. For all your request, we will supply best suggestion and solution on time.

On sale

During the manufacturing time, if you have any query, you can contact with us freely You could contact us by e-mail, or by Skype, Whatsup, or Wechat and QQ.

Welcome you to visit our factory to check the machine. We will pick you up from airport or train station.

After-sale service

We have the engineers available for overseas service, Installation and setup and train your worker for running the machine. If you meet anything you can not solve then you can conatct us freely. We will cooperate with you to solve it.

All our machine will be tested by our QC department before shipping, to ensure every machine will work well after they reach you. The QC is through all production, from raw materials, processing, assembling, finished machine testing.

Our Clients

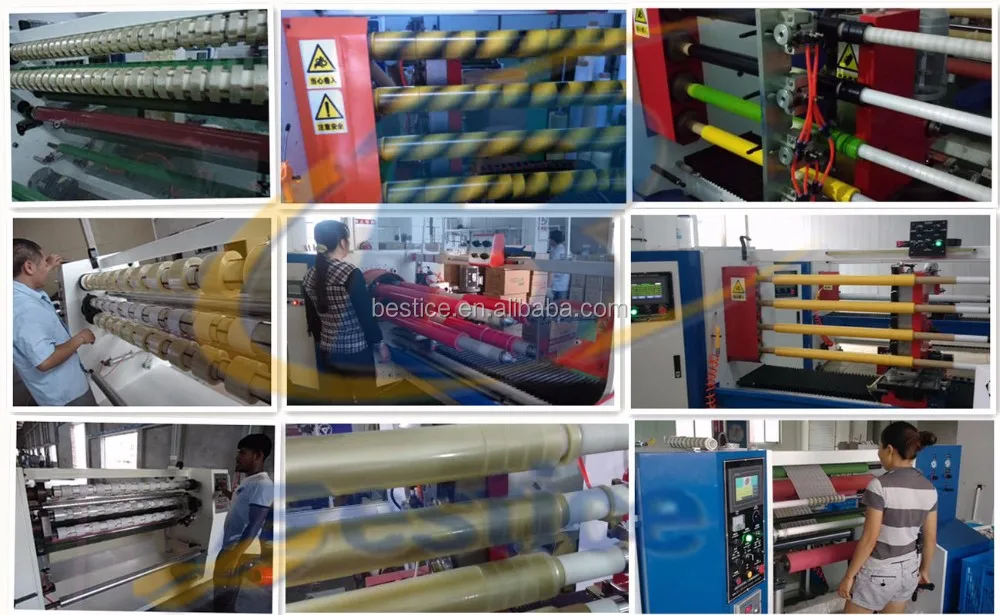

We coopreate with the customers worldwide, America, Japan, india, Pakistan, Bangladesh, Uzbekistan, Middle east, South America, Africa, ect .Following pictures are all took at customer factory.
