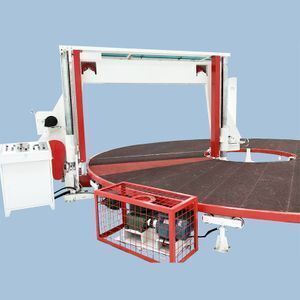

Horizontal Circular cutting foam machinery

Supplier: Dongguan ERS Machinery Co., Ltd.
Region: Guangdong, China
Contact: Ms Nina Liu
Price: $6500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Max. Cutting Depth:	H1200;	Warranty:	1 YEAR;
No-Load Rotational Speed:	0-3.5r/min;	Saw Blade Diameter:	10000;
Weight:	appox 3850kg;	After-sales Service Provided:	Online support,Engineers available to service machinery overseas;
Application:	foam slices continous cutting;	Place of Origin:	Guangdong China;
Port:	Shenzhen port China;	Power(W):	8.92kw;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Different payment terms against countries;	Voltage:	220V/380V;
Dimensions:	L7500W7000H2500mm;	Applicable Industries:	Machinery Repair Shops;
Brand Name:	ERS Foam Machine;	Type:	Foam cutting machine;
Packaging Detail:	EPE&Film;	Rated Power:	8.92kw;
Certification:	CE Certificate;	Supply Ability:	5 Set/Sets per Month;
Condition:	New;

This machine mainly puts many block foam on the worktable cutting slices at the same time, adopt fully automatic digital control, and setting the number as need cutting thickness and foam density by control box. The worktable runs automatically. The turning speed of worktable is adjustable. Continuously cutting ,the production efficiency is very high ( worktable also choose adding to vacuum equipment).

Model	ERS-HC01	ERS- HC02	ERS- HC03
cutting sponge size	L2000W1500H1200mm (4pcs)	L2000W1500H1200mm(5pcs)	L2000W1500H1200mm (8pcs)
Cuttingspongethickness	2-150mm	2-150mm	2-150mm
worktable turning speed	0-3.5r/min	0-3.5r/min	0-2.5r/min
worktable diameter	diameter 6m	diameter 7m	diameter 10.5m
blade length	8940mm	10000mm	10240mm
total power	8.12kw	8.92kw	10.52kw
machine external size	L7000W6500H2500mm	L7500W7000H2500mm	L11500W11000H2500m
